Kano Computer Kit Complete Display Board Replacement

Geschrieben von: Julia Sherrill

Kommentare: 4

Kano Computer Kit Complete Display Board Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

2 Minuten

Einleitung

If your computer continuously gives off a burning odor or it keeps crashing after bugs have supposedly been fixed, chances are you need to replace your Display driver. This guide will show you exactly how to do that through simple, easy to follow steps with pictures to help you along. The only tool you will be needing is a Phillips #1 Screwdriver for the four 8.5mm screws to complete this guide.

Werkzeuge

Phillips #1 Screwdriver

Schritt 1

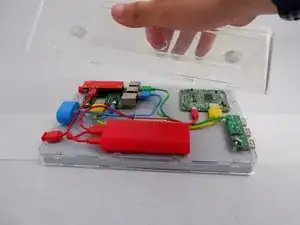

Take off the clear backing of the computer and set it aside.
The Display board is located in the top right corner of the case.

Schritt 2

Always disconnect the battery before performing repairs.

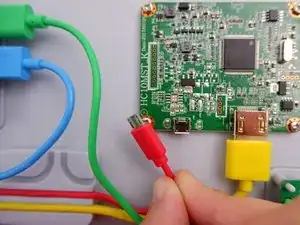

Remove the power cable (Circled in red) from the board.

Can they yank it out? Or how should they unplug it? Remember to include a top down markup shot.

Alex Watkins - 23/10/19

Schritt 3

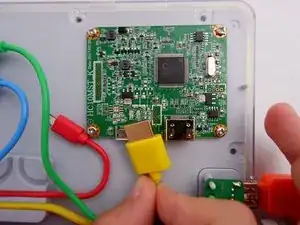

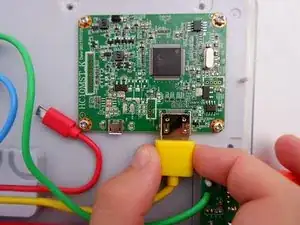

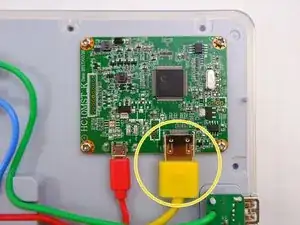

Unplug the HDMI cable (Circled in Yellow) from the board

Schritt 4

Unscrew the four 8.5mm screws with your Phillips #1 Screwdriver.

The orientation changes in a weird way here. Also, consider reshooting these from a first person perspective based on iFixit requirements.

Alex Watkins - 23/10/19

Schritt 5

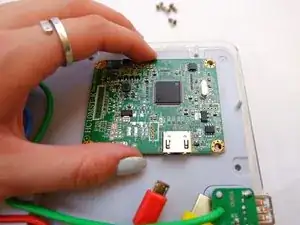

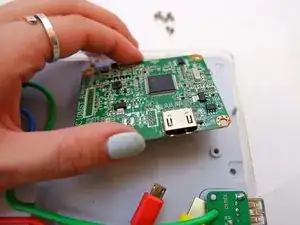

Lift the board off the back of the screen.

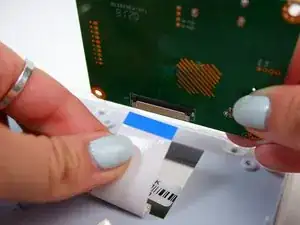

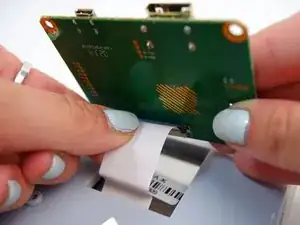

Be gentle as there is a ribbon cable on the underside that will prevent the board from being removed completely.
