Karcher Carpet Cleaner BRC3015C 2018 Pump Cover Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 2
Karcher Carpet Cleaner BRC3015C 2018 Pump Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 15 Minuten

Einleitung

Use this guide to remove the pump cover in a Karcher Carpet Cleaner BRC3015C 2018.

  1. pNqt2DcHcIBsjlFH
    pNqt2DcHcIBsjlFH
    5jSCUHmwHiSNxITL

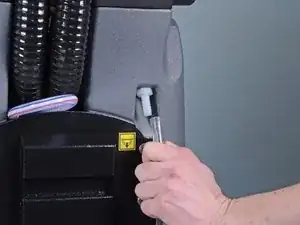

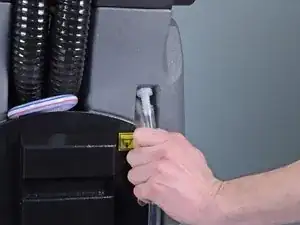

    • Make sure the carpet cleaner is turned off and completely disconnected from power.

    • Pull the hose on the rear of the carpet cleaner straight down to disconnect it.

  2. gCtnWEeg46xAhkvr

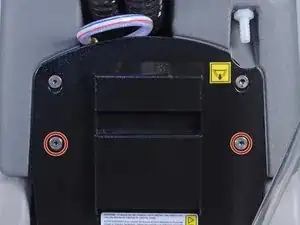

    • Use a 3 mm hex key to remove two bolts securing the bottom cover.

    4 mm hex key

    ZOLTAN -

  3. aLyde3UsFEeIIGAd
    aLyde3UsFEeIIGAd
    x6KCMpHOFSvbcLCW
    R2LTq1mX6uoJYxGJ

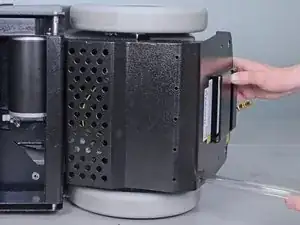

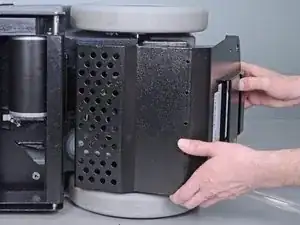

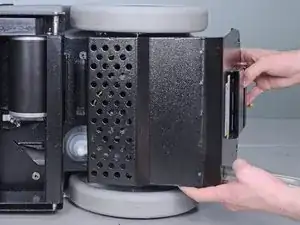

    • Rotate the bottom cover down toward the bottom of the carpet cleaner, then pull it straight back toward the rear of the carpet cleaner to remove it.

    • Don't completely remove the cover yet. There is a ground wire connecting the cover to the carpet cleaner that must be disconnected first.

  4. N1ZZv1WoZO3qVOSb

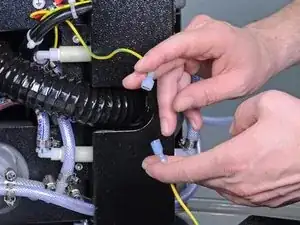

    • Pull the yellow and green ground wire connectors straight apart to disconnect the bottom cover's ground wire.

  5. mpG1JVHKAayjdIvg

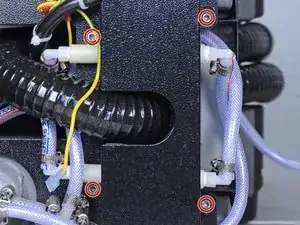

    • Use a 3 mm hex key to remove the four bolts securing the pump cover.

    As with the other comment above, it’s a 4mm Hex key, not a 3mm.

    DAVID -

  6. iun6PChSIvEmGEf1
    iun6PChSIvEmGEf1
    cZ6ysqDRUaHktq4t

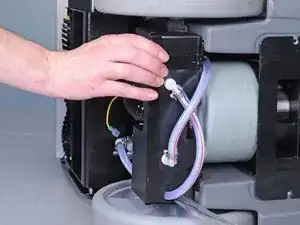

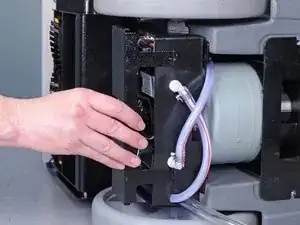

    • Remove the pump cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
