Karcher Carpet Cleaner BRC3015C 2018 Pump Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 5
Karcher Carpet Cleaner BRC3015C 2018 Pump Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

10 - 30 Minuten

Einleitung

Use this guide to remove and replace a pump in a Karcher Carpet Cleaner BRC3015C 2018.

This guide shows the removal process for just one pump. If you wish to remove the other pump, you may apply these same steps to remove it.

  1. pNqt2DcHcIBsjlFH
    pNqt2DcHcIBsjlFH
    5jSCUHmwHiSNxITL

    • Make sure the carpet cleaner is turned off and completely disconnected from power.

    • Pull the hose on the rear of the carpet cleaner straight down to disconnect it.

  2. gCtnWEeg46xAhkvr

    • Use a 3 mm hex key to remove two bolts securing the bottom cover.

    4 mm hex key

    ZOLTAN -

  3. aLyde3UsFEeIIGAd
    aLyde3UsFEeIIGAd
    x6KCMpHOFSvbcLCW
    R2LTq1mX6uoJYxGJ

    • Rotate the bottom cover down toward the bottom of the carpet cleaner, then pull it straight back toward the rear of the carpet cleaner to remove it.

    • Don't completely remove the cover yet. There is a ground wire connecting the cover to the carpet cleaner that must be disconnected first.

  4. N1ZZv1WoZO3qVOSb

    • Pull the yellow and green ground wire connectors straight apart to disconnect the bottom cover's ground wire.

  5. mpG1JVHKAayjdIvg

    • Use a 3 mm hex key to remove the four bolts securing the pump cover.

    As with the other comment above, it’s a 4mm Hex key, not a 3mm.

    DAVID -

  6. iun6PChSIvEmGEf1
    iun6PChSIvEmGEf1
    cZ6ysqDRUaHktq4t

    • Remove the pump cover.

  7. VN4v2NXGAQKNgT6P
    VN4v2NXGAQKNgT6P
    ChTVqod1LAYtruRy

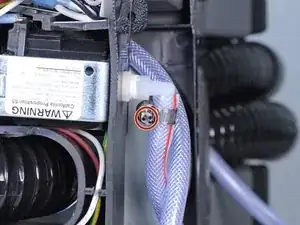

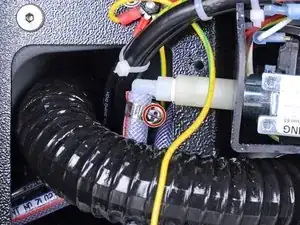

    • Use a flathead screwdriver to loosen the hose clamps at both ends of the pump.

  8. aWgMR5lSG44dVkFA
    aWgMR5lSG44dVkFA
    A6rjvEbGN4mlRCWx
    fngVZJMnsvUrVMqj

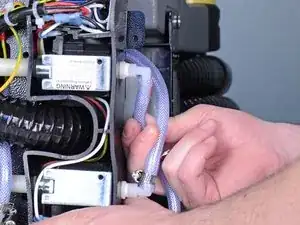

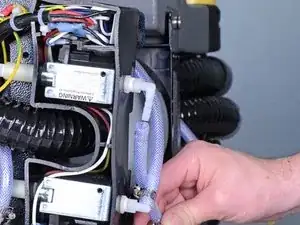

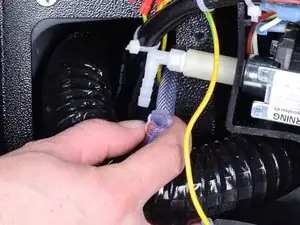

    • Pull the hoses at both ends of the pump straight off of their hose barbs to remove them.

  9. YEOWAUjPPAKelNLv

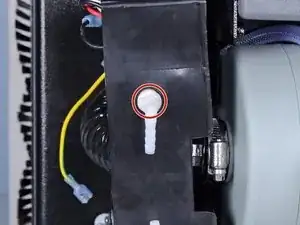

    • Use your fingers to unscrew the hose barb from the outward-facing end of the pump.

  10. DbMEWSamwmByOBs2
    DbMEWSamwmByOBs2
    JGQBCFZWZR2qUxUh
    dhJlMe4CDneMMHej

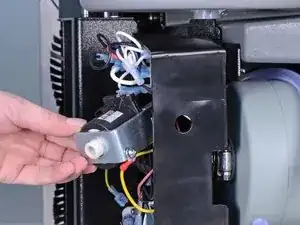

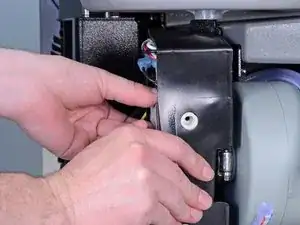

    • Bend the outer side of the pump compartment away from the pump very slightly.

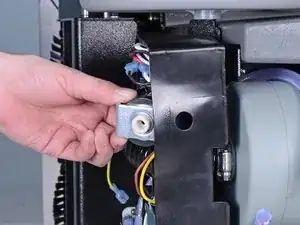

    • Slide the pump out of the hole in the side of the pump compartment, then continue to slide the pump out of the compartment.

    • Do not completely remove the pump yet, as it is still tethered to the carpet cleaner by three wires.

  11. kHtKQkHXd1j4n3Ta

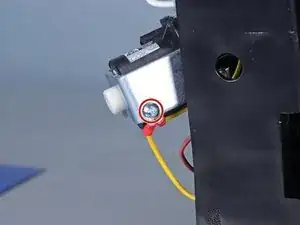

    • Use a Phillips #2 screwdriver to remove the screw securing the ground wire to the pump.

    • Remove the ground wire from the pump.

  12. tBDCvvKiFHSjkG5h
    tBDCvvKiFHSjkG5h
    k1jjLTibRGbNUUpp

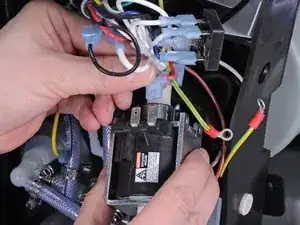

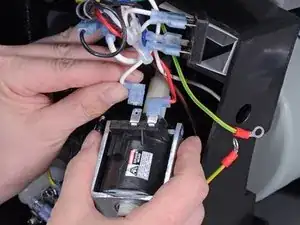

    • Pull the two connectors straight off of the pump to disconnect them from the pump.

  13. TTkBkvKGoexTGEoN

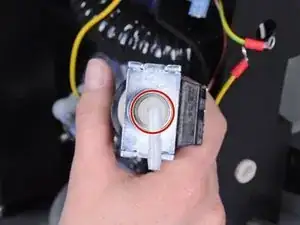

    • Use your fingers to unscrew the remaining hose barb from the pump.

  14. ZRZKNFeYWSoC6AAC
    ZRZKNFeYWSoC6AAC
    ffNO6wX1UogPqC2D

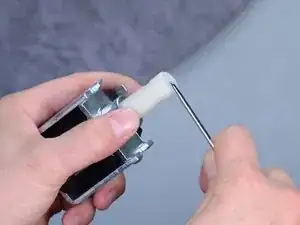

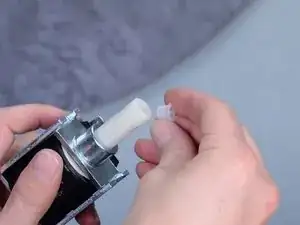

    • Your new pump may come with plugs on either end. Use an angled pick or small flathead screwdriver to pry these out before installation.

Abschluss

To reassemble your device, follow these instructions in reverse order.
