Karcher Pressure Washers 11073080 2017 Pump Assembly Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 4
Karcher Pressure Washers 11073080 2017 Pump Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 15 Minuten

Einleitung

Use this guide to remove and replace the pump assembly on a Karcher Pressure Washers 11073080 2017.

  1. VPtDZBlMoF4uebVD
    VPtDZBlMoF4uebVD
    m4IjlxZ6AbWQ1CN5

    • Before you begin, be sure that the engine is powered off and is cool to the touch.

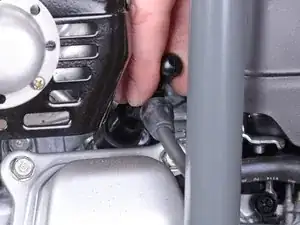

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. JKKaxvSRVwNyoVLL
    JKKaxvSRVwNyoVLL
    Qhjs1SEGuHmGuGBM

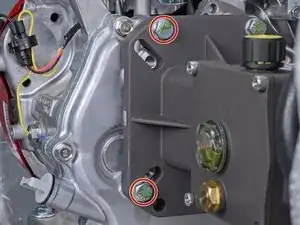

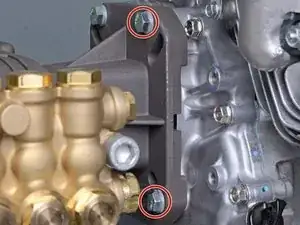

    • Use a 14 mm socket to remove the four bolts securing the pump assembly to the pressure washer.

  3. UMenk5kXYMQlnKDU
    UMenk5kXYMQlnKDU
    6bn6LIawN2lvY25C

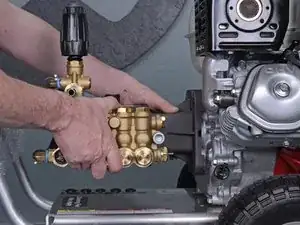

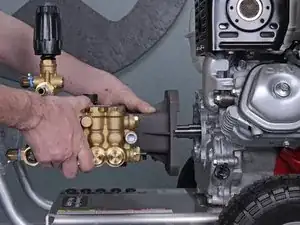

    • Pull the pump assembly straight off of the pressure washer to remove it.

    you effing kidding me? mine is locked tight

    ROBERT -

    LOL!!! try to pull it off by hand...

    BTW why don't they apply marine grease to the shaft when they build these things?

    CHRISTOPHER -

    In order to get the pump off, you must open the pump cover, remove the bolts holding the pistons together (2 each Piston, 6 total). After which the pump will slide off.

    JAMES -

  4. TvnSQy4KN5boKCyI

    • During reassembly, insert the square key into the slot on the pump motor shaft before you reinstall the pump assembly.

  5. lUtmLSivep6PrZAx
    lUtmLSivep6PrZAx
    5mOyJSPldomjodyO

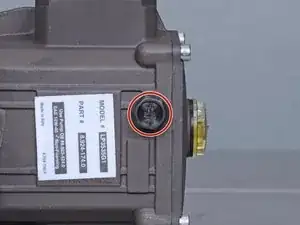

    • The new pump assembly will come with a plug in the oil port. After installing the new pump assembly, remove this plug.

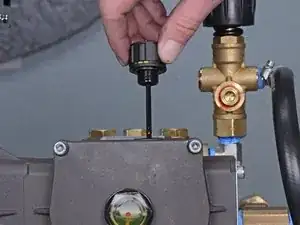

    • Replace the plug with the dipstick from the old pump assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
