Follow this guide to remove and replace the electrical box for the Karcher 15209900 electric pressure washer.

This procedure is required for many other repairs, including motor replacement and pump rebuild.

Some of the body screws are deeply recessed and require a T15 driver with a 5-inch long shank in order to reach.

  1. sTyv3aNB2dm4MfO2
    sTyv3aNB2dm4MfO2
    D5ZbsGfh5ZyvgrQ5
    cgc3nZYGHJLUxwK4
    • Before you begin, make sure to power off and unplug the device from the outlet.

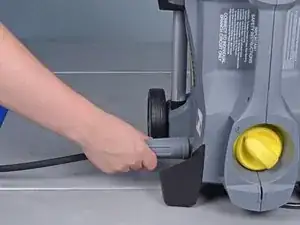

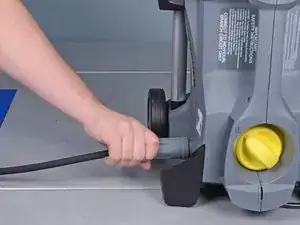

    • Unscrew the output hose from the pressure washer.

  2. EBWTJQJvxAIWl2RR
    EBWTJQJvxAIWl2RR
    MHUOdQnUBNgZby1Y
    JJQHjA11NFPhgEhS

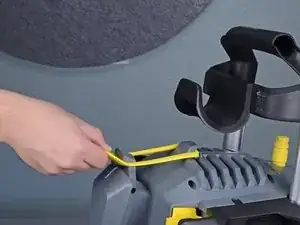

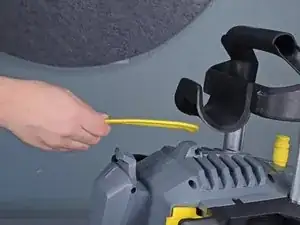

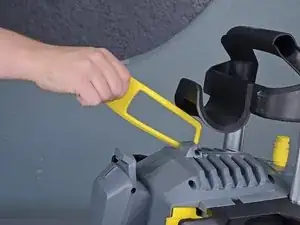

    • Unlatch and remove the yellow rubber strap.

  3. WZIEbM5oYdcE2Nr4

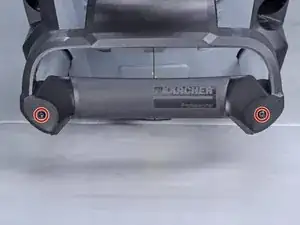

    • Use a T20 driver to remove the two 55mm-long screws securing the hand grip.

  4. KieVyE5DudJoAPJB
    KieVyE5DudJoAPJB
    epyU11vLeXSbBtaX

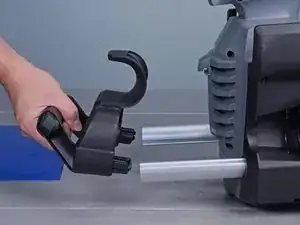

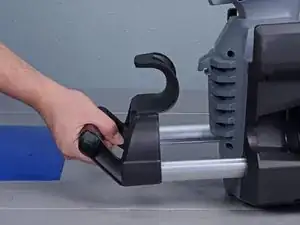

    • Remove the hand grip from the extension bars.

  5. GejtniRRWSLli5wc
    GejtniRRWSLli5wc
    Rgavs3HXQyLABqEX

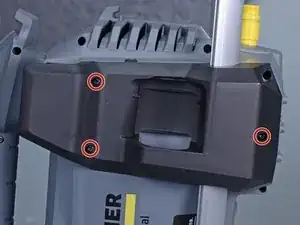

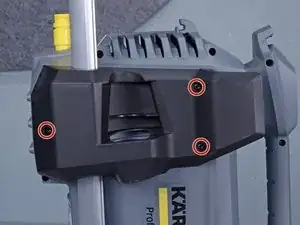

    • Use a T15 driver to remove the six screws securing the top black plastic panels on either side of the device.

  6. Z21nN4HX5GBuiWlc
    Z21nN4HX5GBuiWlc
    CnQr3PdIFhcvZPQc
    YL4amS16wgUWGNVj

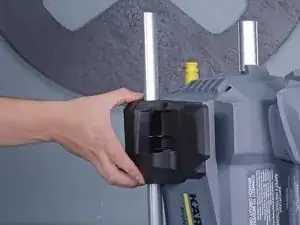

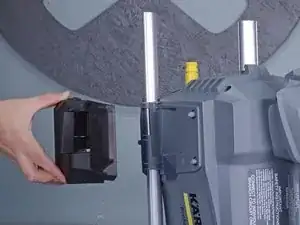

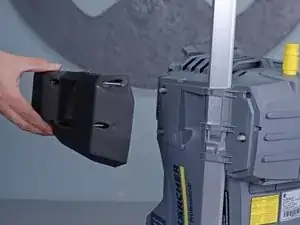

    • Remove the two plastic panels.

  7. 4XhUxZhSrZW4HDY4
    4XhUxZhSrZW4HDY4
    uRIaK6tDrcQHtfJb

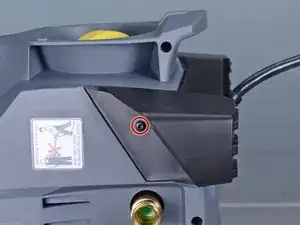

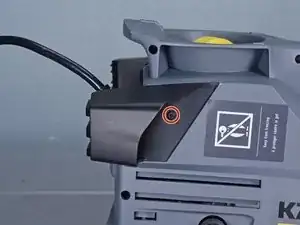

    • Remove the two T15 screws securing the plastic feet—one screw on either side.

  8. 1OMyUwN3wEnJ3qft
    1OMyUwN3wEnJ3qft
    VJA2KqOF1vRnenSZ
    o66w1MC2IXZO5qoX

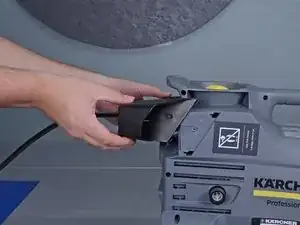

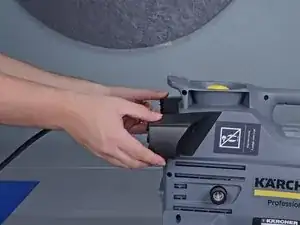

    • Unclip and remove the plastic feet.

  9. fkyCtREJdmWQW4gT
    fkyCtREJdmWQW4gT
    bnjfYkiAyFPbUefQ

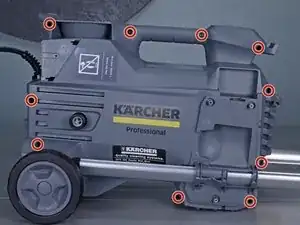

    • Use a T15 driver to remove the ten screws securing the housing halves together.

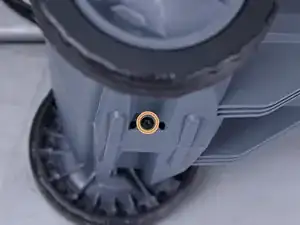

    • Remove the T15 screw underneath the wheel axle.

  10. LGcMqoMCNRqw6Oex
    LGcMqoMCNRqw6Oex
    GRfIFvXqEympLqSO
    • Set the device on its side.

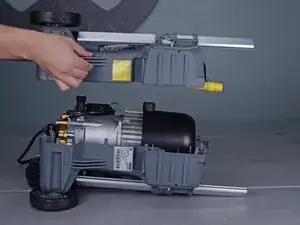

    • Lift the housing half away from the body.

    • If the housing half does not separate, check to make sure you removed all the body screws.

    • Remove the housing.

    • Screws may get stuck inside the plastic housing. Be careful not to lose any screws.

  11. ZwTrKUJiLJvBQjVi
    ZwTrKUJiLJvBQjVi
    kRVq2dtRgsuncNGm

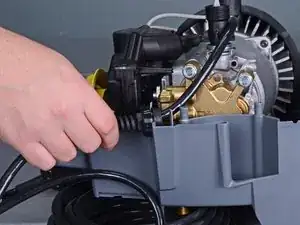

    • Slide the power cord strain relief out its notch on the plastic housing.

  12. XEUfShGY45o5ephH
    XEUfShGY45o5ephH
    5RsBLcA2PuuPlLhm

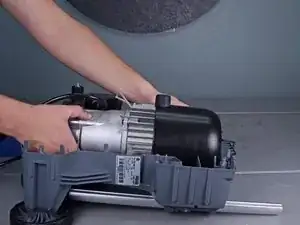

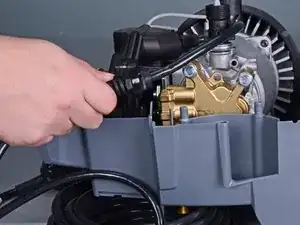

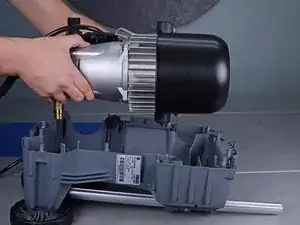

    • Lift the motor assembly out of the plastic housing and set it aside.

  13. 4KrlWNS4rVPZvNNl
    4KrlWNS4rVPZvNNl
    gPTwA5x1aENRxsPp
    Ab2xCsdeEBTakaAP

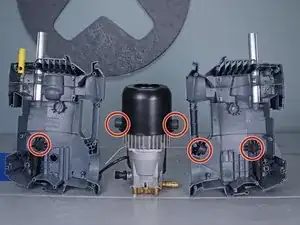

    • Reassembly tip: Use these images to help reassemble the housing back around the motor.

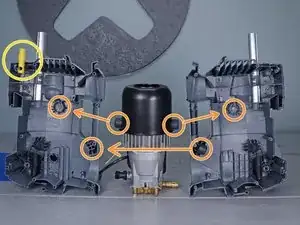

    • Make sure that all five bushings are in place.

    • In order for the housing to fit properly, the bushings must fit in their respective mounts.

    • Make sure that the yellow tube is properly notched onto the housing.

    • Make sure that the power cord strain relief sits correctly in the housing notch.

  14. iogFPNpjLaD3Jmn1

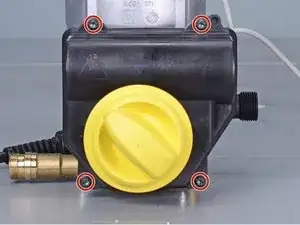

    • Use a T20 driver to remove the four screws securing the electrical box cover.

  15. w4VaUn2qXJQtXhrR
    w4VaUn2qXJQtXhrR
    KjXGZng2tsCKaQEQ

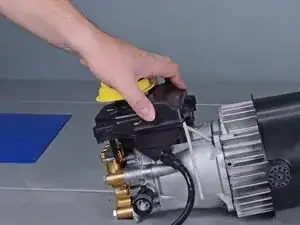

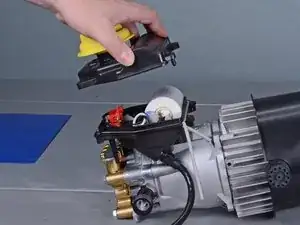

    • Lift the cover off of the electrical box.

  16. gJOxM2O6jcQI2FM5
    gJOxM2O6jcQI2FM5
    BicQBGUk4CmXuIrH

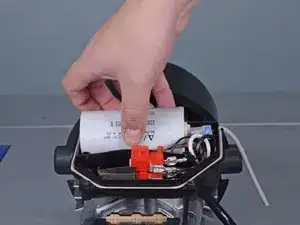

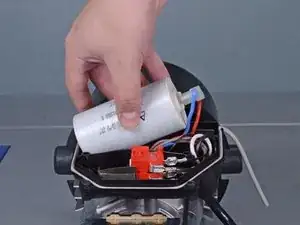

    • Tilt the capacitor upward slightly to gain access to the connectors.

  17. PXygAQyQCdONyaAF
    PXygAQyQCdONyaAF
    qW1Q3JYtvOC1ySTS
    XeCCJt5XUrFTfBlA

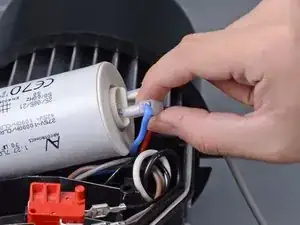

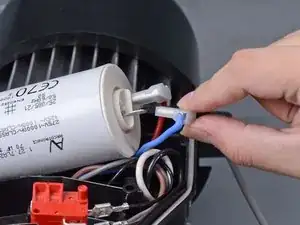

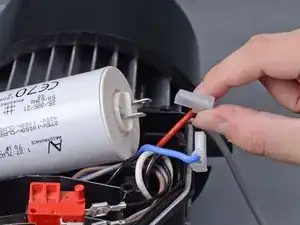

    • Use your fingers to pull each capacitor connector directly off of their spade plug.

  18. xMr1QVPOVnLReaSF

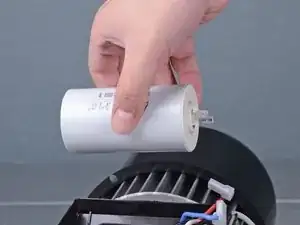

    • Remove the capacitor.

    • Reassembly note: The wires are non-polarized and can connect into either plug on the capacitor.

  19. dAElsVu1ABAL2rUK
    dAElsVu1ABAL2rUK
    MkSQ5jDEtbISlqLh

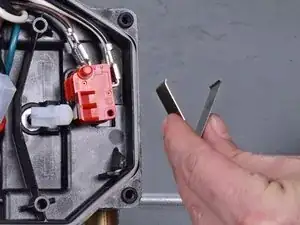

    • Remove the plate spring from the electrical box.

    How to replace back the switch in the box?

    k27b -

  20. NsbeeXQwcWCXLrIu
    NsbeeXQwcWCXLrIu
    VbvBuICJpQYrkUOy
    • Pull the switch out of the electrical box.

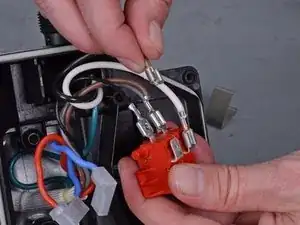

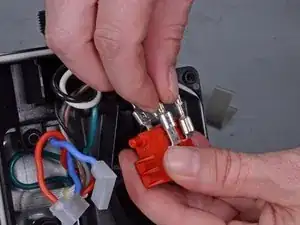

    • Disconnect the four spade connectors from the the switch.

  21. SUfl1MqKP1QnuiER
    SUfl1MqKP1QnuiER
    REFBCqLwBO6rQTOc

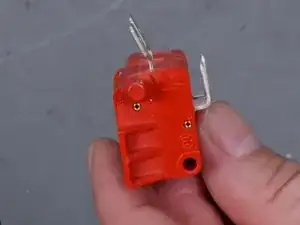

    • Remove the switch.

    • Reassembly tip: Use the second photo as a reference to help you properly re-wire the switch.

  22. OlWJHvuIqnsjHuuB

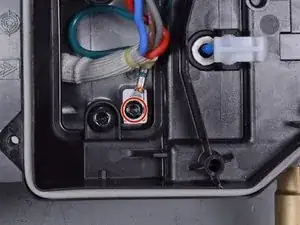

    • Use a flat head screwdriver to remove the screw securing the ground wire in the electrical box.

  23. Nr1Fo1aUtJVcOEBp

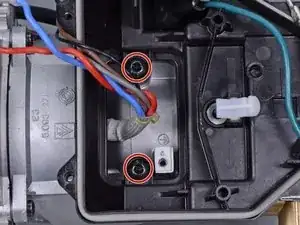

    • Use a T30 driver to remove the two bolts securing the electrical box to the motor assembly.

  24. OrgOAebZrb2qZS24
    OrgOAebZrb2qZS24
    ceRHMJQkbOaD1gLf
    S2v1IQuTSX2ODmn1

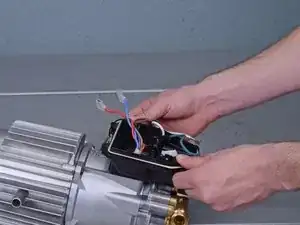

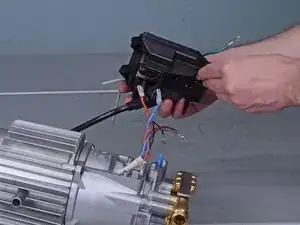

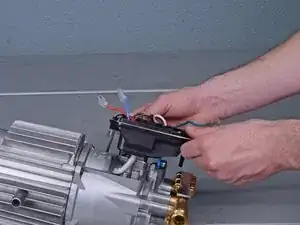

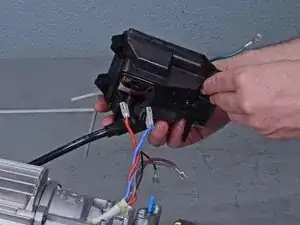

    • Lift the electrical box away from the motor assembly, taking care to feed the wires through the cutout.

    • Remove the electrical box.

Abschluss

To reassemble your device, follow these instructions in reverse order.
