Einleitung

This guide shows how to remove and replace the motor that drives the roller brushes for the Karcher Rotary Floor Cleaner 17833080 2017.

  1. cvdMERNHLdUGDK3b
    cvdMERNHLdUGDK3b
    StNjh5BI2IvnEQgF
    • Before you begin, make sure to power off and unplug the device.

    • Lift the tank by the handle and remove it from the device.

  2. jBy4DhMReckHQHZh
    jBy4DhMReckHQHZh
    Hnij1DGCDlHW4sWX
    2LQL2UnDUNjrlHnq
    • Press the yellow button near each wheel base to release the wheels.

    • Remove both wheels from their sockets.

  3. FA3CopeIFuaRydth
    FA3CopeIFuaRydth
    GxBBReuQTfSYLUCo
    • Press the yellow foot switch at the base of the device to lower the suction bars.

  4. HJFVENmeE2ED3qLd
    HJFVENmeE2ED3qLd
    uN1XHJpZGwge6N4w
    • Raise the handle to the upright position.

    • This will engage the carriage rollers and lift the device.

  5. lKv1SQdCFVICW3hv
    lKv1SQdCFVICW3hv
    ayVpTWW6bU4duAg3
    • Engage the retaining bracket to lock the handle in place.

  6. qYBSGrE6XE2GS1x6
    qYBSGrE6XE2GS1x6
    1aUG4gMlHmemSyjl
    BNqNhOyV4dSGA6Qe
    • Grasp the handle and carefully tilt the device onto its side.

  7. KQhHclU2fjTidAGI
    KQhHclU2fjTidAGI
    dtQTpIuVSk34uTwN
    jorGlN6QO5MWwQsJ
    • Tilt the top of the roller brush out of the brush well.

    • Remove both roller brushes.

  8. veGs2dJwBwa6eawq
    veGs2dJwBwa6eawq
    KjRFymTSLQbLFdtl
    TSJHEMK1FGHKtobk
    • Press the yellow button on the suction bar retaining bracket to release the suction bar.

    • If you can't see the yellow button, press the yellow foot switch at the base of the device to lower the suction bars.

  9. uLWahWmRMgEO1fMv
    uLWahWmRMgEO1fMv
    3hGreQXbreCU6Cvc
    • Remove both suction bars.

    • Reassembly tip: When you re-insert the suction bars, be sure to orient the locking tab towards the center of the device. This allows the bars to click in place.

  10. IYb1ZxJGGNdsuakj
    • Use a T20 driver to remove the three screws securing the pump cover.

  11. NZ5EyFkomPZKLavV
    NZ5EyFkomPZKLavV
    OdPYSm3UEYqN5aHp
    fivHaIJQuYuAlWa5
    • Remove the pump cover.

  12. FEioVCLT2VDWHkBK
    FEioVCLT2VDWHkBK
    uvUye2YRAQBi3gBI
    • Squeeze the right plug by the edges and pull it out of its socket.

    • During reassembly, make sure that all plugs are firmly seated in their sockets.

  13. mVyA1tRUKYy4E5XU
    • Remove the following screws securing the left retaining bracket:

    • Four T40 screws

    • Two T20 screws

  14. mSCZdgbKDs6ixCvl
    mSCZdgbKDs6ixCvl
    FM1TCL2ZcwH4obKl
    L4hPFHgLcGWl2y2W
    • Raise the handle to the upright position.

    • This will engage the carriage rollers and lift the device.

    • Engage the retaining bracket to lock the handle in place.

  15. TDKFfTYHSig4M6ro
    • Use a T20 driver to remove the two screws securing the right splash guard.

  16. fD1lJDWaHQvlWqpn
    fD1lJDWaHQvlWqpn
    VMBUtxyp1gI6gGup
    • Remove the right splash guard.

  17. ONkjTLw4Ee2kJYij
    • Use a T20 driver to remove the following screws securing the right retaining bracket:

    • Two 85 mm-long screws

    • Four 45 mm-long screws

  18. PUPlOCjAdwoyl223
    PUPlOCjAdwoyl223
    PWMYINggCCObSMSK
    • Remove the right retaining bracket.

  19. sUHqq1lGjnKF1ReT
    sUHqq1lGjnKF1ReT
    SOT4fPLV1DQyOJhp
    4XqClGBNMMuDiGdA
    • Lift the handle assembly away from the device and remove it.

  20. BVhV1ZmeYFX12hMt
    • Reassembly tip: Be careful not to lose the two gray bushings on the ends of the handle assembly.

  21. HbWidO1n63djCXDU
    HbWidO1n63djCXDU
    GinUuBoRbp5RBfZG
    • Disconnect the two remaining plugs by squeezing the edges and pulling them out of their sockets.

    • The socket board should have no plugs connected to it.

    • Reassembly tip: The sockets reconnect to the following parts:

    • Vacuum motor

    • Pump

    • Handle

    • During reassembly, make sure to firmly seat all plugs in their sockets.

  22. nnYNBuoAsBLaxFOg
    • Use a T20 driver to remove the six screws securing the plastic brush housing.

  23. Kn1BPrtpKxGEo5Rh
    Kn1BPrtpKxGEo5Rh
    2VSoxVRLM4wRLRTl
    1LrwFccTR1PYvMvZ
    • Lift the brush housing away from the device and remove it.

  24. 3hVUAjmQUV6q3iLS
    • Use a T20 driver to remove the two screws securing the socket board.

  25. wSfFMITGTKMtCxRH
    wSfFMITGTKMtCxRH
    GwIEpNycMQELFFMD
    uVHQrPRM6YqeSEkP
    • Squeeze the edges of the drive motor plug and disconnect it from the extension plug.

    • The drive motor plug has red, brown, and gray wires feeding into it.

  26. YeDDEIMQoPETVbqm
    YeDDEIMQoPETVbqm
    vOwJBoRPgHiNlbEp
    • Free the motor wires from underneath the socket board.

    • Reassembly tip: Remember to feed the motor wires back underneath the socket board.

  27. v2m6EnhR6CurT13c
    • Use a T20 driver to remove the six bolts securing the gear case cover.

  28. OSXFEjsrAmKSnDDo
    OSXFEjsrAmKSnDDo
    LInMOVIvaJO6cZWV
    • Remove the gear case cover.

  29. qYRsKNyguCUJEMHF
    qYRsKNyguCUJEMHF
    iFg6DyHwyXOntXaK
    • Remove the following bolts from the gear case:

    • Six T20 bolts

    • One T30 bolt securing the ground wire

    • Reassembly tip: The ground wire's ring terminal should sandwich between a washer and a serrated washer.

  30. FqK4YJNDnrNBvIwj
    FqK4YJNDnrNBvIwj
    BSIyhmZIJwPZPXxc
    • Lift the motor end of the drive assembly up slightly to clear the mounting lip.

    • Push the drive assembly out of its recess.

    • Reassembly tip: In order for the drive assembly to sit properly in its recess, the motor must clear the mounting lip. If you can't push the motor in far enough, lift it up slightly to clear the lip.

  31. XH2mUMyYlxbO6Bpo
    • Remove the drive assembly and stand it on the motor end.

  32. L1DGHDqUnrTULDVB
    L1DGHDqUnrTULDVB
    ZA6TiYNCqogMnvBo
    DQUAqaXXWqBi56iT
    • Use snap ring pliers to remove the retaining ring securing the motor axle.

  33. fUBVASJu1pXHNxnK
    • Use a T30 driver to remove the three bolts securing the gear case to the motor mount.

  34. vOuqXLN2CHxSVTYq
    vOuqXLN2CHxSVTYq
    EZoMJPCnIOGVTrE4
    o5hISclRdQIqwKgA
    • Use a pry bar or flathead screwdriver to loosen the gear case from the motor mount.

  35. PsdrSX1RkNDiDXOB
    PsdrSX1RkNDiDXOB
    6wo6mplsVXJK3fvZ
    • Lift the gear case away from the motor mount to remove it.

  36. CqByBnWGBC3XmaVQ
    CqByBnWGBC3XmaVQ
    YRRp52yrPQL4ciJA
    UeByWcRKlRRSWxdF
    • During reassembly, follow these tips:

    • The motor axle is keyed into the gearbox. Rotate the axle until it aligns with the gearbox slot.

    • Align the gear case to the motor mount using the two alignment pins.

    • Once everything is aligned, gently tap the gear case onto the motor mount.

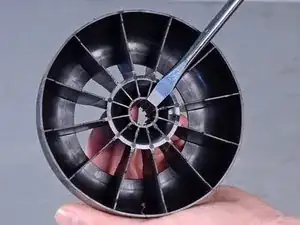

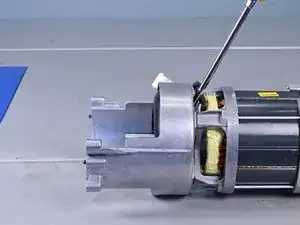

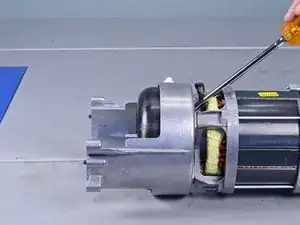

  37. 5esRZPJPuMYRB5Fu
    5esRZPJPuMYRB5Fu
    iBHdEDqXMcSITSHg
    cfJmgAMtwXMBHZFH
    • When you pry the blower wheel, try to apply pressure as close to the center of the wheel as possible.

    • Use a large flathead screwdriver or pry bar to pry the blower wheel off the motor axle.

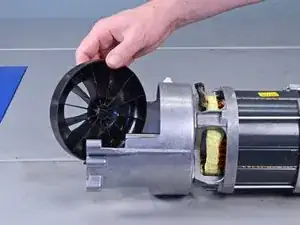

  38. sDwNtHDdYUcuhgjG
    • Remove the blower wheel.

    • During reassembly, push the blower wheel onto the axle until it touches the axle base.

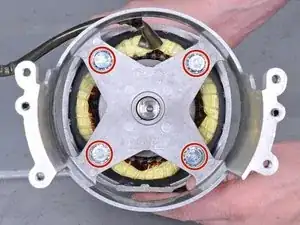

  39. 5aNBYZJT1VBoXE4V
    • Use a 1/2" (or 13 mm) socket to remove the four bolts securing the motor to its mount.

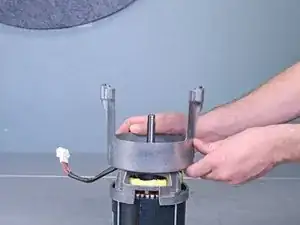

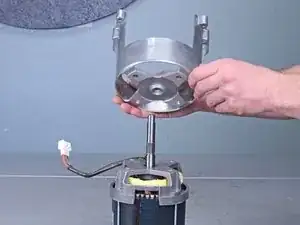

  40. UD1kSVBpWBgSLKMA
    UD1kSVBpWBgSLKMA
    ZGQsVVftFwRQDw64
    • Remove the motor mount from the motor.

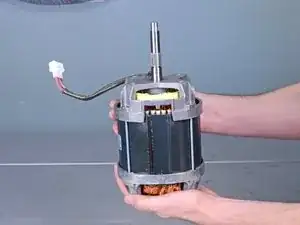

  41. hqTAnvsUcONbS1hs
    • Only the motor remains.

Abschluss

To reassemble your device, follow these instructions in reverse order.
