Kemove Snowfox 61 Key Switch Replacement

Geschrieben von: Chandara Young

Kommentare: 0

Kemove Snowfox 61 Key Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

2 - 3 Stunden

Einleitung

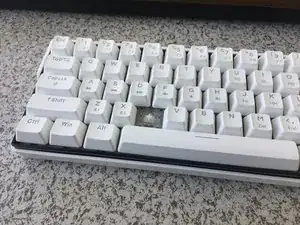

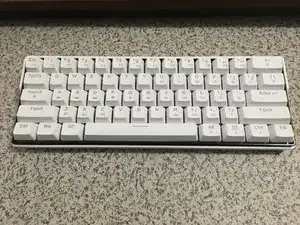

Use this guide for replacing faulty key switches on the KEMOVE Snowfox 61 mechanical keyboard.

A mechanical keyboard with a faulty switch causes multiple key inputs to be pressed or not respond. This occurs when grime build-up is left for too long in the keyboard, causing some keys to no longer function, requiring replacing the keys completely or cleaning the board.

No special skills are required.

Any Gateron switches will work, such as red, blue, green, etc.

Werkzeuge

Ersatzteile

Gateron Linear Switch

Schritt 1

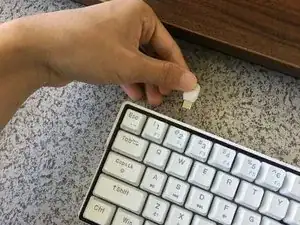

Do not disassemble the keyboard if the keyboard is connected to a power source.
Unplug the power cable from the keyboard.

Schritt 2

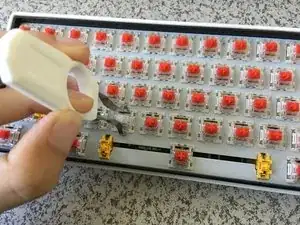

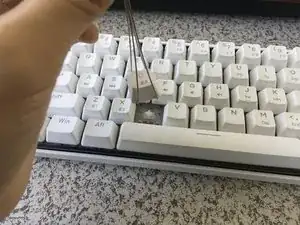

Do not pull the keycap other than straight up.

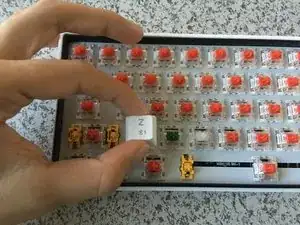

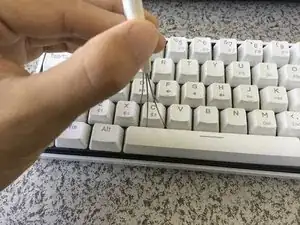

Position the keycap puller directly above the keycap.
Push the keycap puller down until the two handles are underneath the keycap.
Remove all keys.
It may be easier to pull by rotating the puller at a 45-degree angle.

Schritt 3

Fill the plastic container with water.
Add 2-3 drops of dish soap.
Put the keycaps in.
Let the keycaps soak for about 20-30 minutes.

Schritt 4

Do not leave in sunlight or use a hairdryer because the heat might cause the plastic to warp or bend.

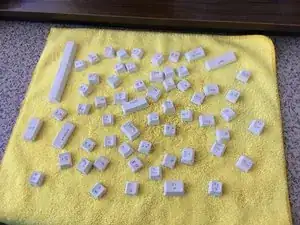

Take out the keycaps.
Ensure that the keycaps are separated and facing down.
Let the keycaps dry for 45 minutes.
If you cannot wait for 45 minutes, you may use a microfiber cloth and hand dry the keycaps. But be thorough in the cleaning process as there may be excess water inside the keycaps.

Schritt 5

Do not pull the key switch other than straight up.

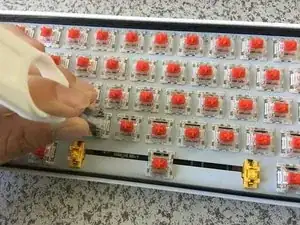

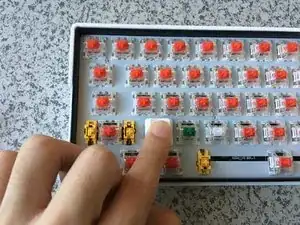

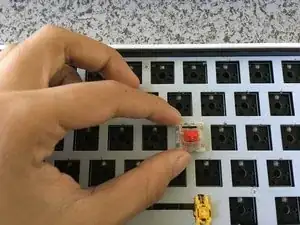

Place the key switch puller above the key switch.
Push the tongs inward on both the white top and bottom ends.

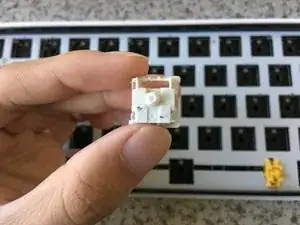

Pull the key switch out.

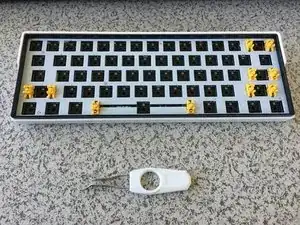

Remove all key switches.

Schritt 6

Do not squeeze or clean roughly as you may leak liquid into the board's interior.

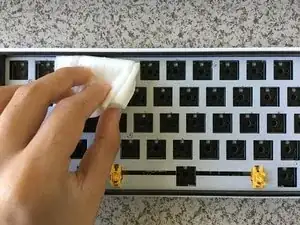

Use a wet/ alcohol wipe and gently clean the surface board.

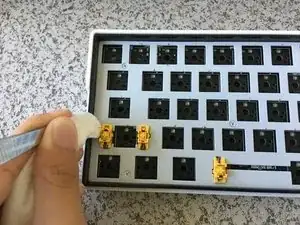

Use any tweezers or cotton swabs to clean tight corners of the board.
