Kenmore 78423 Dustbin fiber collector Replacement

Geschrieben von: Christopher Bradley
  • Kommentare: 2
Kenmore 78423 Dustbin fiber collector Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

2 - 3 Minuten

Einleitung

Learn how to find and remove the dustbin fiber collector from your Kenmore 78423.

  1. uHFqnAnHWwR2bsES
    uHFqnAnHWwR2bsES
    2EVgqO1pGOKK64BI

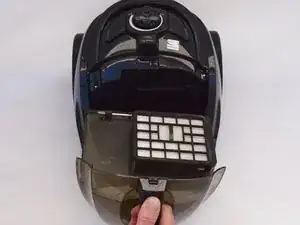

    • Grab the dustbin handle, press and hold the button at the top of the handle.

    • Pull the dustbin up and away from the main body.

  2. aAeRcACQj2XUAfHw
    aAeRcACQj2XUAfHw
    BAjG2SqTHvAEF6Be

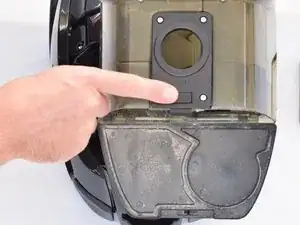

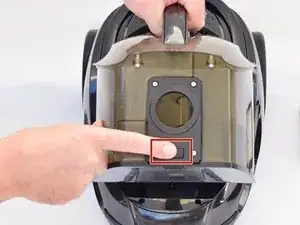

    • Press the button located beneath the circular opening on the dust bin; this will open the bottom of the dustbin.

    • Properly dispose any contents of the dust bin into a wastebasket.

  3. QEXC543DFpTwWvCx
    QEXC543DFpTwWvCx
    BoAJucFV6wLf1nCm
    gXCDpERleYRkmSNU

    • Grab the fiber collector using the finger holes on both sides of the base.

    • The fiber collector is the black basket with the rounded base

    • Turn the base a quarter-turn clockwise and pull it away from the dustbin

    • Remove the fiber and hair that may be stuck inside the fiber collector

    Donde puedo conseguir esta pieza

    Wanda Millán -

Abschluss

To reassemble your device, follow these instructions in reverse order.
