Kensington Hi-Fi Headphones 33137 Speaker Cable

Geschrieben von: William Sanders
  • Kommentare: 2
Kensington Hi-Fi Headphones 33137 Speaker Cable

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

The speaker cable on the Kensington Hi-Fi Headphones 33137 connect the headphones to an audio device. This guide shows how to remove this component.

  1. qdBLV4aNM2wTKPWw
    qdBLV4aNM2wTKPWw
    pVRIU1MPBRtEXbSv
    NshIwl1S5gtwlOno

    • Starting with the left speaker first, pull out one side of the speaker clamp where the clamp enters the hole on the speaker cover.

    • Do not pull out the speaker clamp with too much force, or it may break.

    • After one side of the speaker clamp is removed from the speaker cover, pull the other side of the speaker clamp out.

  2. DUCZhUfnqIg5f3fB
    DUCZhUfnqIg5f3fB
    ZBST5hXKpnrSZNY2
    WyarBMCOfBAfdR2T

    • Repeat the process in Step 1 to remove the right speaker clamp.

  3. vIRRDP3RXEdvQjQk
    vIRRDP3RXEdvQjQk
    xtHXD5EuHkSO5gKN
    HMYIjsYEJ6kRU2x6

    • Hold the speaker cover in one hand and the speaker ear-padding in the other.

    • Turn the speaker cover counter-clockwise until it stops turning.

    • Pull the speaker cover and the speaker ear padding apart to expose the inner components of the speaker.

    • Make sure to pull the speakers apart gently to avoid disconnecting the speaker cable wires from the speaker.

    • If the speaker cover and ear-padding don't easily come apart, then make sure the speaker cover is fully turned.

    • Repeat this process for both speakers.

    Hey could you respond to me ask quickly as you can please how do you put it back on?

    dewer -

    Hi but i’m in a sticky situation how do you put it back on please help me

    dewer -

  4. BH6uHgacSMKjQcUu
    BH6uHgacSMKjQcUu
    bMLGIrV23alAPv1C
    3S56SjWm5Z2D2DhR

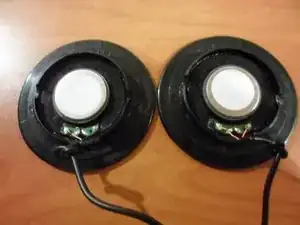

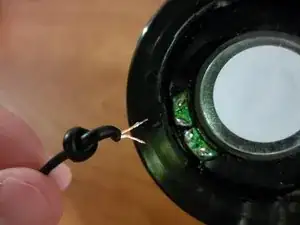

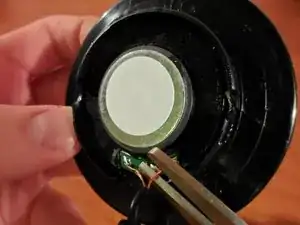

    • With the internal speaker component exposed, the wires connecting the speakers to the speaker cable can be cut.

    • Reassembly after cutting the speaker cable wires will require soldering. Proceed with caution. See Kensington Hi-Fi Headphones 33137 Speaker Cable Replacement.

    • Cut each of the wires connecting the speaker to the speaker cable.

    • Repeat this process for each speaker.

  5. etKmbJrIUSDkVYem
    etKmbJrIUSDkVYem
    nP2eSS3ScyZYThlX
    OdGP1Adp2gQFBupT

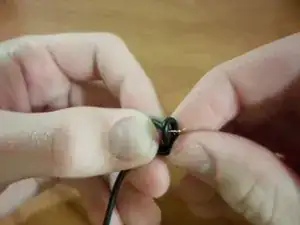

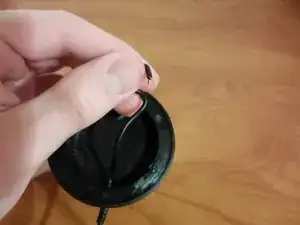

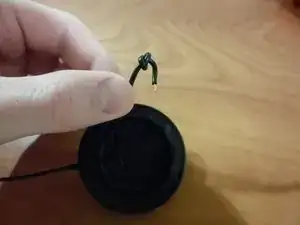

    • After cutting the wires, untie the knot that is in the speaker cable.

    • Repeat this process for each side of the speaker cable.

  6. HJ1K2sLWvHunwERu
    HJ1K2sLWvHunwERu
    ETKMYJTqnpNjXvYK
    TFf6DSXGPEAYKIiN

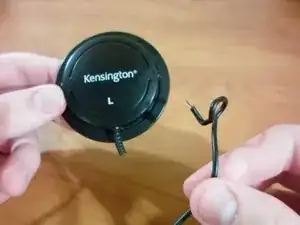

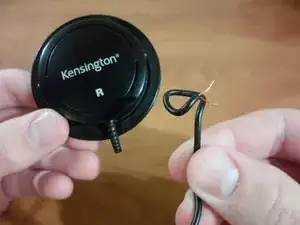

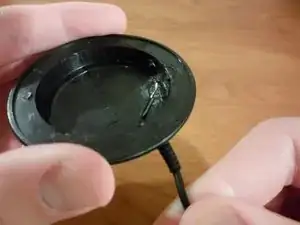

    • Pull the speaker cable through the hole in the speaker cover.

    • Repeat this process for each side of the speaker cable to completely remove the speaker cable from all headphone components.

Abschluss

To reassemble your device, follow the instructions in the Kensington Hi-Fi Headphones 33137 Speaker Cable Replacement.
