Kensington Hi-Fi Headphones 33137 Speaker Clamp

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

The speaker clamps on the Kensington Hi-Fi Headphones 33137 connect the speakers to the headband. This guide shows you how to remove these parts.

  1. PREld6TKdB5bHYAC
    PREld6TKdB5bHYAC
    jXUHmVlhg3StUS5s
    DSfhL2yFFM1XUVvC

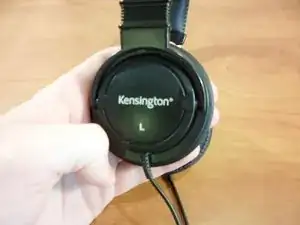

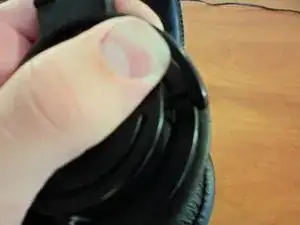

    • Starting with the left speaker first, pull out one side of the speaker clamp where the clamp enters the hole on the speaker cover.

    • Do not pull out the speaker clamp with too much force, or it may break.

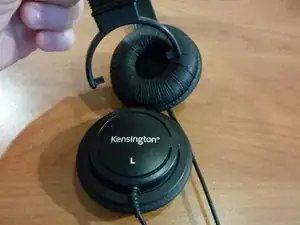

    • After one side of the speaker clamp is removed from the speaker cover, pull the other side of the speaker clamp out.

  2. MmlfZF2l2QtrRDGJ
    MmlfZF2l2QtrRDGJ
    tjPxmqDbC3PbFtRJ
    iVXqEEvZVF1jrwaO

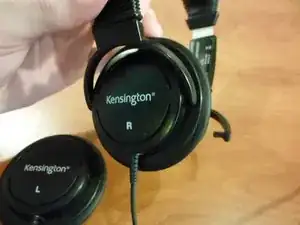

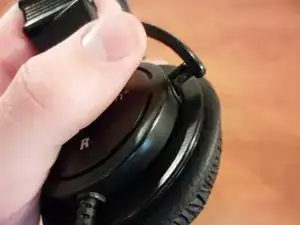

    • Repeat the process in Step 1 to remove the right speaker clamp.

  3. bWbnWhkGZF2MBlTp
    bWbnWhkGZF2MBlTp
    GnCxb3aytOGtKZQ5

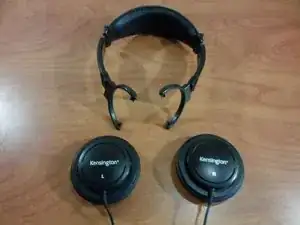

    • This picture shows the headphones with the speakers detached. Steps 1 and 2 are not necessary to replace the headband covers, however they do make the process easier.

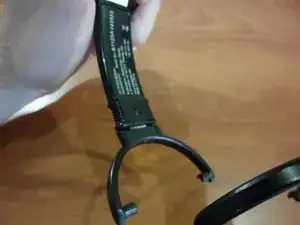

    • Turn the headphones so that the inner headphone cover is visible.

  4. WnfJoTXsEe3UQBbX
    WnfJoTXsEe3UQBbX
    OGSTC3c6rFtcqldc

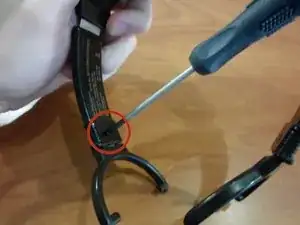

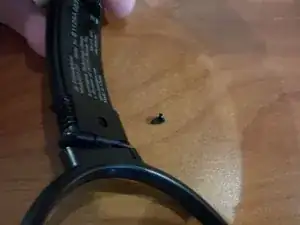

    • Use the Phillips #00 screwdriver to loosen and remove the screw holding the inner headphone cover in place.

    • The screw dimensions are as follows: Length to Head = 4 mm, Head Length = 1.5 mm, Head Diameter = 3.5 mm, Major Diameter = 2 mm, Pitch = 0.5 mm.

    • All steps can be followed on both the left or right side of the headphones to remove inner coverings.

  5. GQxpilxyIyRdgYON
    GQxpilxyIyRdgYON
    GGUnUMJKIBevHq6S
    2n5okpyFDlGsA5fA

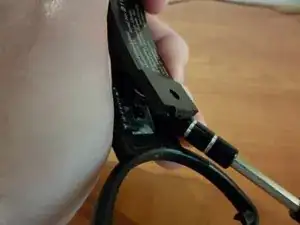

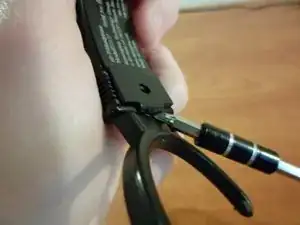

    • Use the screwdriver to pry the inner headband covering loose.

    • Do not push the inner covering panel too hard, or the plastic will break. Only apply enough pressure to lift the panel up slightly.

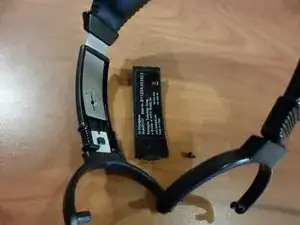

    • Once the inner covering is loose, pull it free from the headband with your fingers and set it aside.

    • Make sure to pull the inner cover free gently do avoid losing the adjustment piece within the cover. It falls out easily and can be lost.

  6. sfaimBnNVVPC5glG
    sfaimBnNVVPC5glG
    dUHbxCJO42DbDU2J
    xJj6BNblxQtqDTIq

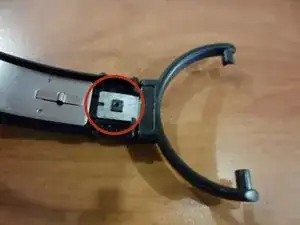

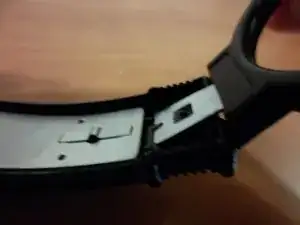

    • Turn the headphones so that the inner tab of the speaker clamp where it attaches to the headband can be seen.

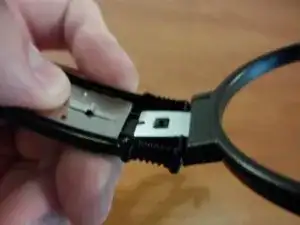

    • Pull the speaker clamp so that the metal lifts free of the headband.

  7. gJO2WtxqsflQO6Pg

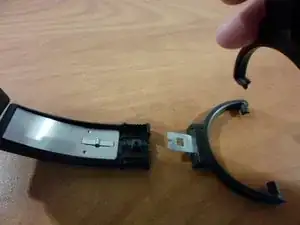

    • Remove the speaker clamp.

    • All steps can be followed on either the left or right arm of the headphones to remove speaker clamps.

Abschluss

To reassemble your device, follow these instructions in reverse order.
