Keurig 2.0-400 LCD Screen Replacement

Geschrieben von: Alec Jamosmos
  • Kommentare: 6
Keurig 2.0-400 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

In this guide, you will replace the LCD screen. This is necessary if the screen is faulty and does not display information properly.

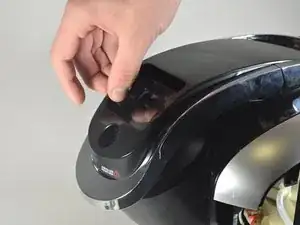

  1. PoQjwXsbTHtagoUC

    • Open the K-Cup Chamber Housing Lid by lifting up the silver handle below the LCD screen.

    • This is the part of the brewer you open to place a K-Cup inside.

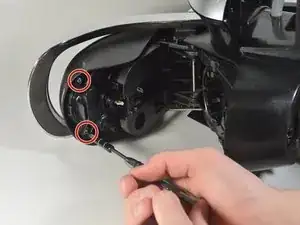

  2. gHjKbmpdKIONMxgP
    gHjKbmpdKIONMxgP

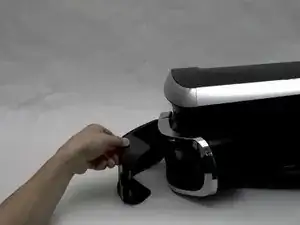

    bAUBMOgPAjtnYXF6

    • Place the Keurig on its side.

    • Remove the two 140mm screws located on the underside of the Chamber Lid using the Phillips #1 screwdriver.

    • Remove the top black housing that surrounds the screen.

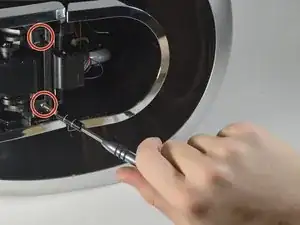

  3. qEjivia4e2egqfMO

    • Using the Phillips #1 screwdriver, remove the two 140mm screws connecting the silver handle to the top of the Keurig.

    These may be #2 Phillips screws, so if a #1 bit doesn't feel right try a #2.

    Jeff Verive -

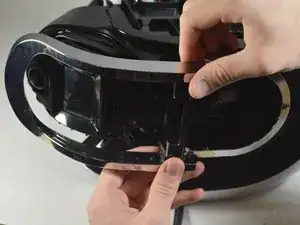

  4. ZRfIhXoSbO1MZY2g

    • Pull out the front silver handle from the top of the brewer.

    • This will further expose the LCD screen.

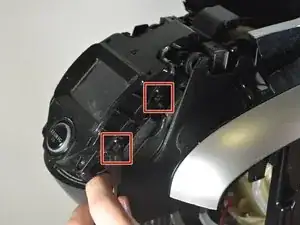

  5. qWdSlUY363bUr1n4

    • Using the metal spudger, pry open the snaps holding the LCD screen panel to the brewer, just enough for the panel to pop loose.

    • Warning: These snaps are very delicate and can easily be broken. Practice caution as you perform this step.

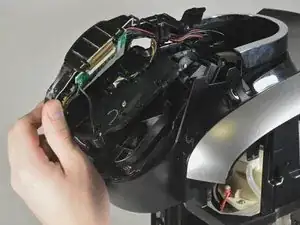

  6. fDHJFxEGPIaV5uxp

    • Remove the top black housing by lifting it up.

    • This will expose the frame of the Keurig connecting to the LCD screen.

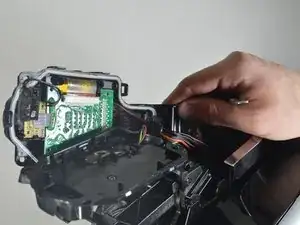

  7. 2qyenHM62ylOZBWg

    • Remove the black latch with the black wire connecting the front end of the panel to the frame.

    • The front end of the panel will now be free.

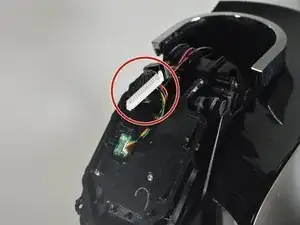

  8. lcqxMcKCKdJVfPYJ

    • On the bottom of the panel, remove the white tab that connects the wires of the circuit board to the LCD screen

    • To remove the tab, squeeze in on the sides of it as you pull it out.

    • Remove the touch screen panel from your device.

    Where can I buy the replacement LCD screen please?

    Jojo -

Abschluss

To reassemble your device, follow these instructions in reverse order.
