Keurig B60 Puncture Needle Replacement

Geschrieben von: Jake Wynn
  • Kommentare: 3
Keurig B60 Puncture Needle Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

Replacing the Puncture Needle is similar to the Handle Replacement, but requires a couple extra steps outlined below.

  1. rNuOhPDSbBBPYjCT

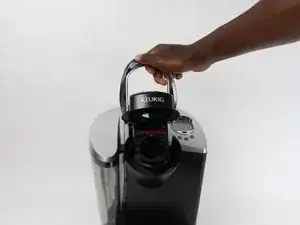

    • Lift the handle

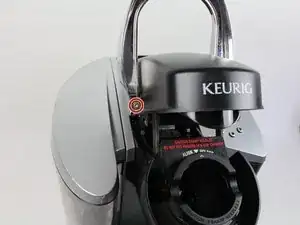

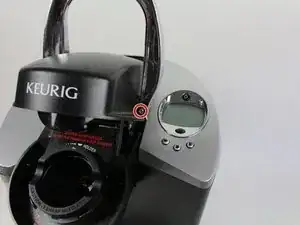

  2. AYaCMGrDcYQXiJvK
    AYaCMGrDcYQXiJvK
    YKtHeWwQQONLyG2W
    YHpSIB2lGXSshTni

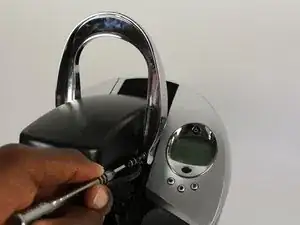

    • Locate and remove the two 9.5 mm Torx T15 screws on both sides of the handle.

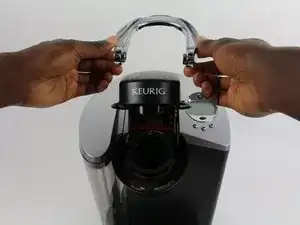

  3. ku5c2iZFkSEkR5cJ
    ku5c2iZFkSEkR5cJ
    orUT5abIQvqyWslF

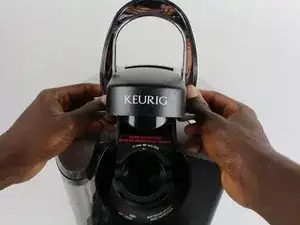

    • Remove the broken handle and replace with the new one

  4. 26qM2YHoLCSHjxBV

    • Locate and remove the two 9.5 mm Phillips #1 screws.

    • Remove the plastic ring around the K-Cup Pack Holder

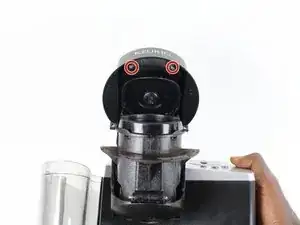

  5. QgGVpRNWBORE6hog

    • Remove the two 9.5 mm Phillips #1 screws on the underside of the lid.

  6. QSDuxb5CP4lPVKE6
    QSDuxb5CP4lPVKE6
    AtpvPjanauUJWXRV

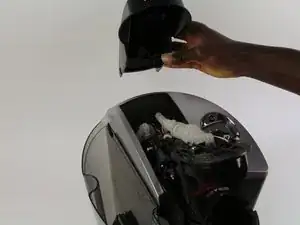

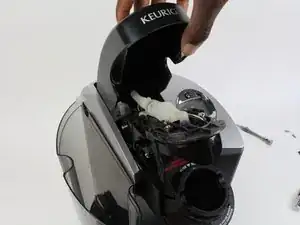

    • Detach the lid from the Keurig.

  7. IfvV51ZQV1INqV6L

    • Locate and remove the two 9.5 mm Phillips #1 screws on the top of the puncture needle.

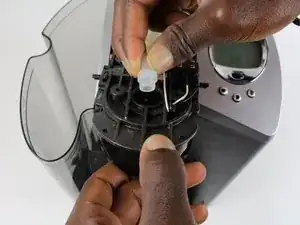

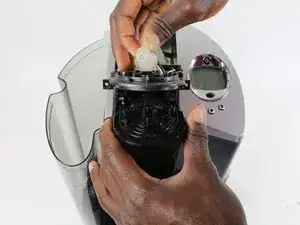

  8. RFu6PtvnW2DgsPQN
    RFu6PtvnW2DgsPQN
    FC2aMhXtvYoPOHSQ
    4OCN1mV6QctyiNaJ

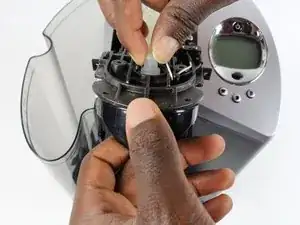

    • Squeeze and pull on the hose to remove it from the Puncture Needle

    • Puncture needle should now be exposed

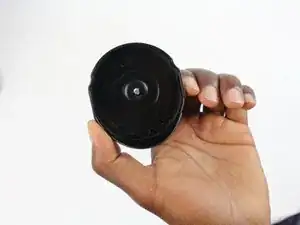

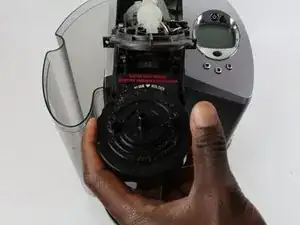

  9. kALWgRAWijaEQH5q
    kALWgRAWijaEQH5q
    nNkpQFFJSbo1abSl
    BMsXmYcuNTiq2HxX

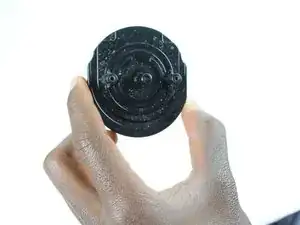

    • Remove the Puncture Needle Assembly from Keurig

    And where do u get a new puncture needle??

    mcduke2001 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
