Keurig B70 Platinum Check Valve Replacement

Geschrieben von: Ashlan Pate
  • Kommentare: 0
Keurig B70 Platinum Check Valve Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 25 Minuten

Einleitung

Is your Keurig slow to brew or leaking water? This quick fix might be your answer to get you right back to brewing. This guide will show you how to easily replace your check valve in the Keurig B70 Platinum. The check valve is located at the top of the machine and can cause slow brewing or water not coming out of your machine if it is clogged or damaged.

Before continuing, make sure you unplug your machine and have a Phillips screwdriver and a pair of scissors handy.

  1. jL3DKTa6sAtQ5bPU
    jL3DKTa6sAtQ5bPU
    tCjqJmNwm6ueHOGp

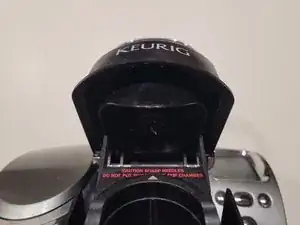

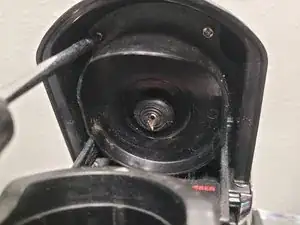

    • Lift up the top lid.

    • Remove the two screws with a Phillips #0 screwdriver.

  2. YDFSsJJMwRSPQVVI
    YDFSsJJMwRSPQVVI
    YJeQDWZ4REOXE3RY

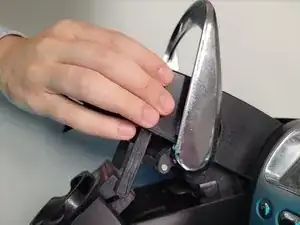

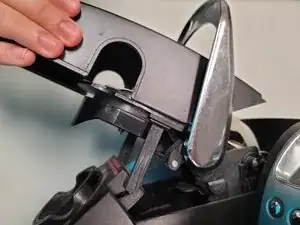

    • Push down on the lid.

    • Lift up and remove the lid.

  3. L4KnMStLE4XQxN5L
    L4KnMStLE4XQxN5L
    t32VNZ5ytI1cAqgu

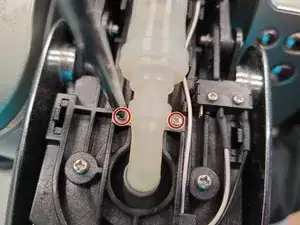

    • Using the Phillips #0 screwdriver, remove the two screws holding the tubing to the puncture needle.

  4. BfQiFJKluLYKZRRT
    BfQiFJKluLYKZRRT
    eFUsduDgYI1SiDBW
    nttXjeIIw6pIafe2

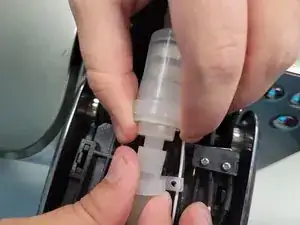

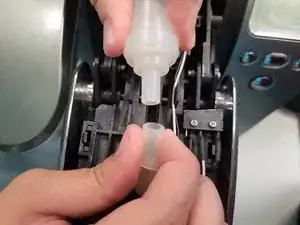

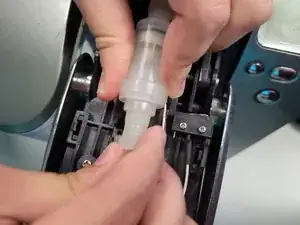

    • Twist and pull to disconnect the valve on that side.

  5. GngJ5O25KFOkLWgl
    GngJ5O25KFOkLWgl
    LXJtoWYFEBrDZODs

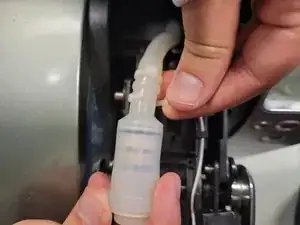

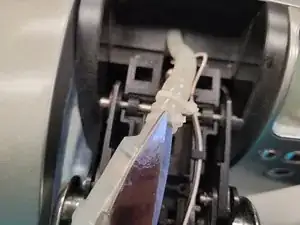

    • On the other side, cut the one zip tie closest to the valve.

  6. bU1DaYGE4aDXGEg3
    bU1DaYGE4aDXGEg3
    Vd6RXG5YkpskiHSv

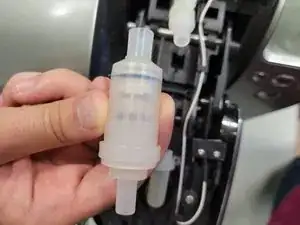

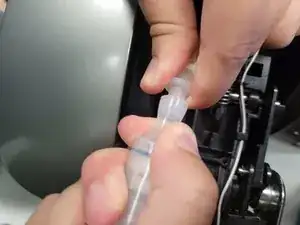

    • Twist and pull to disconnect valve on the other side.

  7. TdQX4vOpFVdeqwaf
    TdQX4vOpFVdeqwaf
    PJperwETsyItV2yJ

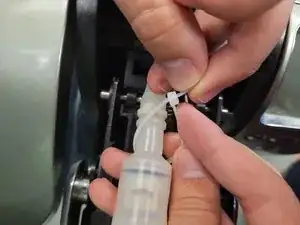

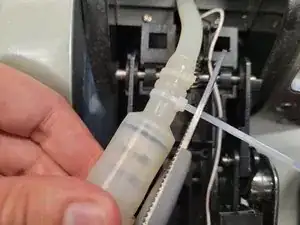

    • Reassemble the valve in place.

    • Resecure it with a zip tie.

    • Trim the excess plastic off of the zip tie.

Abschluss

To reassemble your device, follow these instructions in reverse order.
