Keurig B70 Platinum K-Cup Portion Pack Holder Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

7 - 10 Minuten

Einleitung

K-Cup pack holder is stuck?

This guide will show you how to remove and replace the K-Cup Portion Pack Holder for the Keurig B70 Platinum if you're experiencing any problems with the pack holder. Before continuing with the guide, you're going to need a Phillips #2 screwdriver.

  1. rqbUBmJkGU1UZHXG
    rqbUBmJkGU1UZHXG
    l3mPQnGMg4KHiphN

    • Turn off and unplug the Keurig before starting.

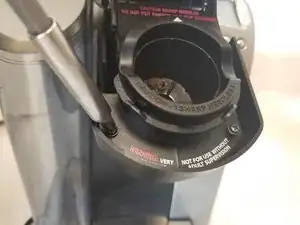

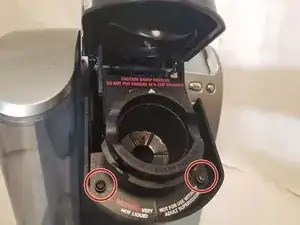

    • Open the lid and remove the two 11.0 mm screws located below the K-Cup holder.

  2. VIO5kVJoXwwM1teD

    • Pull the black plastic guard of the K-Cup housing away from the Keurig.

    • Depending on the angle, the guard can actually fall out instead. Be ready to catch it!

  3. 1bFJDwCBvD3oquOQ
    1bFJDwCBvD3oquOQ
    6ACxPlBWkA54BjBK
    2RxPJgT6QlGExILS

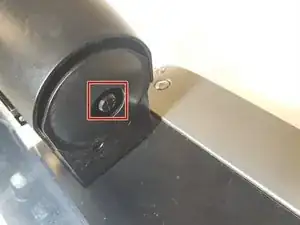

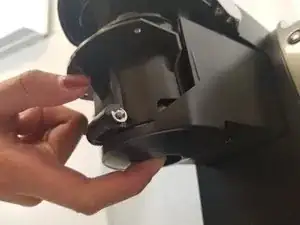

    • Push the black button at the bottom of the lid to remove the K-cup holder assembly.

    • From the top, lift the assembly out of the Keurig.

  4. jNSaGnsaY2J2M1sm
    jNSaGnsaY2J2M1sm
    wgoQHFBX4QwEPMR1

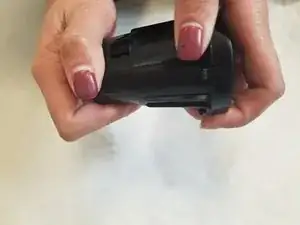

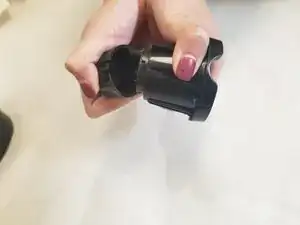

    • Grab the top and the bottom of the holder assembly and pull it apart.

    • Be careful when pulling the assembly. There is a sharp needle!

    • This step requires a little force.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Thu Hoang

Mitglied seit: 17/10/18

217 Reputation

Ein Kommentar

Spring flew out as I was removing cup holder. Where does it go. How do I reinsert it?

slz2002 -
