Keurig K10 MINI PLUS Handle Replacement

Geschrieben von: Roberto Maldonado
  • Kommentare: 4
Keurig K10 MINI PLUS Handle Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide we will show you how to successfully remove the handle from the K-cup.

  1. xdJrYucNgF3awHXO
    xdJrYucNgF3awHXO
    hYSZaFop2aEgTsfi

    • Remove two 9 mm Phillips #1 screws.

    • Avoid the top needle if at all possible. The needle may cut you and/or penetrate your skin.

    • The screws are located on the top of where the K-Cup would be.

    you show two screws I have 2 more deeper in how do you remove them?

    wevie100 -

    My K10 had two larger screws than the photo. There were Phillips #2 head and could not be retrieved with a magnet when they inevitably fell into a tight space as they were not attracted to magnets. There was also a catch toward the back of the top cover that finally released when an upward force of sufficient force was applied to the bottom front of the cover.

    In my case the pump was fine. My problem was coffee grounds in the hose blocking the flow from the pump. The grounds were in the hose shown in Step 4.

    Frank M -

  2. 2aBXybN6nxhEFNK6
    2aBXybN6nxhEFNK6
    r1L1aqUAK3J4UCwi
    AqL1knf26EtlYZkS

    • Once you remove the screws, the top cover should come out.

    • You will then want to remove these screws which are the same size.

    • The needle is sharp, so be careful.

    On my model k10, these screws are actually slightly larger than those on step #3. So it is best to still separate them, just incase. Happy repairing~

    Bernard Dolecki -

    The top cover didn’t come off easily on mine. Once I removed the 2 screws I had to slowly lift it up from the front until it popped off. It looks like there might have been a small glue spot at the back center of the plastic edge.

    jkempinger -

  3. mCpGN4eEHASRUuca

    • Once you get those removed, you are going to want to pull on the hose until it pops off.

    • Once the hose comes off, the needle will fall out by itself.

    • Be careful when picking up the needle as the needle is sharp.

  4. qWtbq5B1eVDVVTgC

    • Remove the two Phillips #1 screws.

    • The top needle is intact and there, so be careful when in this area.

  5. 5BW3nJFZXKefyxXV
    5BW3nJFZXKefyxXV
    URdDumcmWKHcIEXs

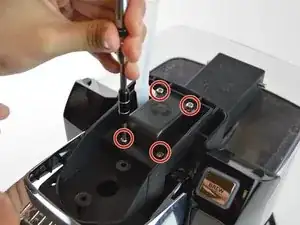

    • Next, after the removal of the hose on the top by simply pulling it off, remove the following four Phillips #1 screws.

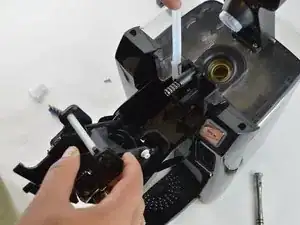

  6. KFt2QaZPiLPP4Mkh

    • Once you take off the screws, this part of the handle will come off.

  7. cwmcK6DJpQuqOkVd

    • To pull this part off, pull inwards with the these tabs located on both sides of the handle assembly.

  8. A55bg4iN4CUmXAOQ
    A55bg4iN4CUmXAOQ
    TRx2vZOPIJVRisnq
    LoERLxqwASTWbAvy

    • Next, remove these two Phillips #1 screws to allow the release of the actual handle from the frame.

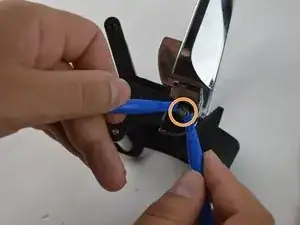

    • For the O rings, we used the plastic prying tools. Just keep in mind that you might want to hold one side of the O ring down while trying to pry off the other side with the other.

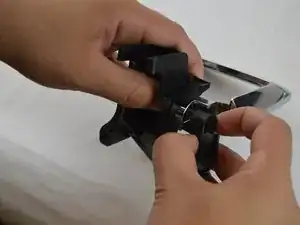

    • Once you get the O rings on both sides out, you can pull the handle by pulling on each side.

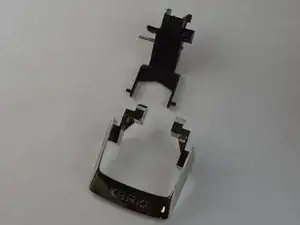

  9. dEKEmsVXPN1VYUfp

    • Once you pull both sides, the handle will come off as shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
