Keurig K10 MINI PLUS Water Pump Replacement

Geschrieben von: Matt Bav
  • Kommentare: 10
Keurig K10 MINI PLUS Water Pump Replacement

Schwierigkeitsgrad

Difficult

Schritte

24

Zeitaufwand

30 - 45 Minuten

Einleitung

The Water Pump within the Keurig K10 MINI Plus is a deeply embedded part. Due to the nature of it being attached both to an electrical source and a water source, it is not recommended to attempt this guide without previous familiarity with both.

  1. FNnXDdDJLalMglIY
    FNnXDdDJLalMglIY
    nEgILsLideROZcCV

    • Lift the cold water reserve lid up to reveal its hinge.

    • Using either the metal spudger or the opening tool, gently pry the plastic out of the metal axle.

  2. cnLl5HJEeLBLwUAD

    • Repeat the last step on the other hinge, making sure to keep a firm grasp on the lid as it comes off to avoid dropping it.

  3. xdJrYucNgF3awHXO
    xdJrYucNgF3awHXO
    hYSZaFop2aEgTsfi

    • Remove two 9 mm Phillips #1 screws.

    • Avoid the top needle if at all possible. The needle may cut you and/or penetrate your skin.

    • The screws are located on the top of where the K-Cup would be.

    you show two screws I have 2 more deeper in how do you remove them?

    wevie100 -

    My K10 had two larger screws than the photo. There were Phillips #2 head and could not be retrieved with a magnet when they inevitably fell into a tight space as they were not attracted to magnets. There was also a catch toward the back of the top cover that finally released when an upward force of sufficient force was applied to the bottom front of the cover.

    In my case the pump was fine. My problem was coffee grounds in the hose blocking the flow from the pump. The grounds were in the hose shown in Step 4.

    Frank M -

  4. 2aBXybN6nxhEFNK6
    2aBXybN6nxhEFNK6
    r1L1aqUAK3J4UCwi
    AqL1knf26EtlYZkS

    • Once you remove the screws, the top cover should come out.

    • You will then want to remove these screws which are the same size.

    • The needle is sharp, so be careful.

    On my model k10, these screws are actually slightly larger than those on step #3. So it is best to still separate them, just incase. Happy repairing~

    Bernard Dolecki -

    The top cover didn’t come off easily on mine. Once I removed the 2 screws I had to slowly lift it up from the front until it popped off. It looks like there might have been a small glue spot at the back center of the plastic edge.

    jkempinger -

  5. mCpGN4eEHASRUuca

    • Once you get those removed, you are going to want to pull on the hose until it pops off.

    • Once the hose comes off, the needle will fall out by itself.

    • Be careful when picking up the needle as the needle is sharp.

  6. kHMiJ2MhDkrC2BVq
    kHMiJ2MhDkrC2BVq
    6SYxADrJSChUuLGm
    nFM1M35fvqxoO5LA

    • Remove two 14 mm Phillips #2 screws.

    • Remove two 12 mm Phillips #2 screws.

    • Lift the arm off the assembly. This will reveal the tank hole as shown.

    • It is recommended that you clog the tank hole with a napkin or something similar in order to prevent small parts from falling into the heating element.

  7. tF122t2mvReHYLfx
    tF122t2mvReHYLfx
    IXALp1kt1IINTLS1

    • Remove two 9.7 mm Phillips #2 screws.

    • Remove two 11.5 mm Phillips #2 screws.

    • Remove the cold water reserve arm's plug from the arm itself in order to allow access to the base screws.

  8. pRMfGQnMUkZQQYKn
    pRMfGQnMUkZQQYKn
    ltIpqLkcvkNCBvVY

    • Remove two 18 mm Phillips #2 screws.

    • Finally, detach the arm from the cold water reserve basin.

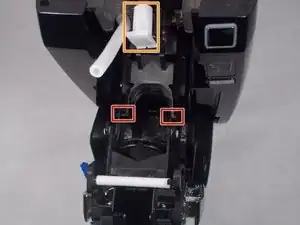

  9. vnwCquwLf4DwUsCf
    vnwCquwLf4DwUsCf
    iev2Cs3QxWrCxCK3

    • Pull the head assembly forward to reveal the two plastic axle points that keep the head assembly attached to the base.

    • There is a spring concealed by a white piece as shown.

    Note that if you remove the white piece that holds the spring (highlighted in orange) that it needs to go back in the same orientation as shown in the image. If you put it in upside down, the arm assembly will not stay up by itself after reassembly. This gave me a fair amount of frustration so thought I should add it to save some the trouble.

    Bernard Dolecki -

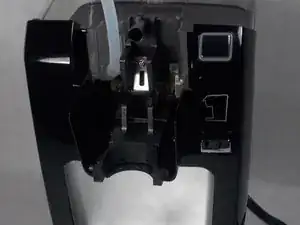

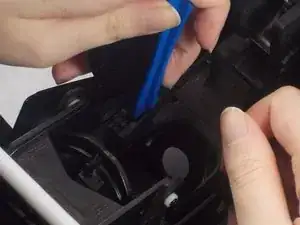

  10. rhgnRt6KOyFAKxHx
    rhgnRt6KOyFAKxHx
    gNWfrxIbGNjhZUmL

    • Using the iFixit Opening Tool, gently pry apart the plastic head assembly piece from both the body's axles and its left to remove it.

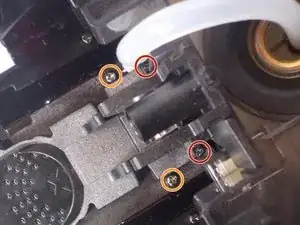

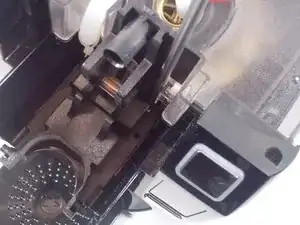

  11. DnJGTDcnJjG5Gx2r
    DnJGTDcnJjG5Gx2r
    SkTmiNTPIQC6BrW4
    2eBZPVt5xbM4JFeC

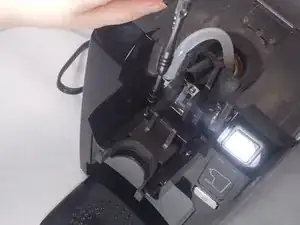

    • Remove two 14 mm Phillips #2 screws.

    • Remove two 12 mm Phillips #2 screws.

    • Screws circled in red may be hard to reach and will require a screw driver with a neck width of 5mm or less.

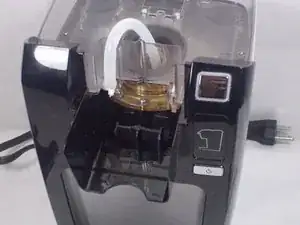

  12. Hhq3ZsFKFoJHIVLW
    Hhq3ZsFKFoJHIVLW
    njGDNh6AhEWWDVHk
    mobWpb6dRRmOXLGb

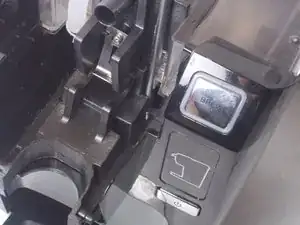

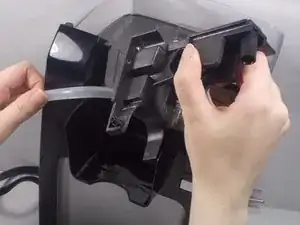

    • Detach the seat by giving it a firm tug up.

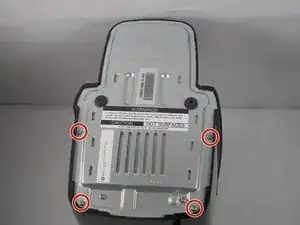

  13. nKgDRwsNecTCl42X
    nKgDRwsNecTCl42X
    wLOfemCLqUPln3YO

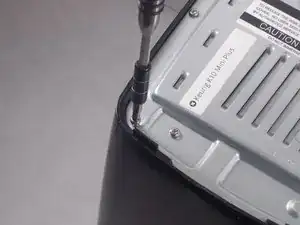

    • Flip over the device.

    • Remove four 11.5 mm Phillips #2 screws.

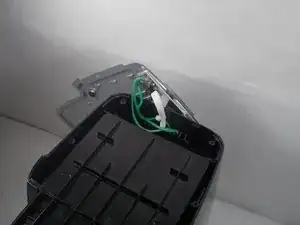

  14. WuNgDPulTUqTY3BY
    WuNgDPulTUqTY3BY
    x3LRZiba3lTD4iqm

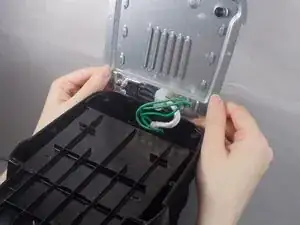

    • Reposition the metal lid while keeping the heat sink attached in order to reach the screws underneath.

    • It is recommended that you leave the heat sink aside as it contains thermal paste.

  15. CtNiThLSTRamKNVb
    CtNiThLSTRamKNVb
    kRS4nu2EgGDu5bde

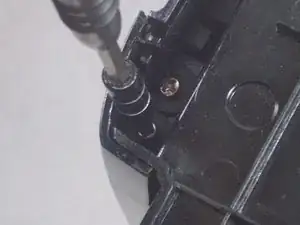

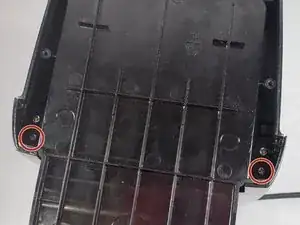

    • Remove two 11.5 mm Phillips #2 screws.

    • Be careful not to confuse these two screws for the ones behind them.

  16. 2a1AujZwQTklQrwY
    2a1AujZwQTklQrwY
    V1feivLkssYuHynX

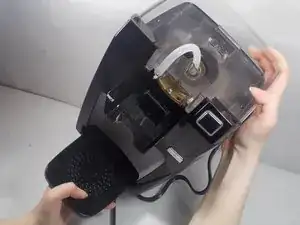

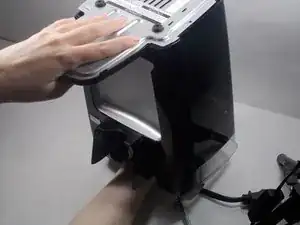

    • Turn the device right side up again.

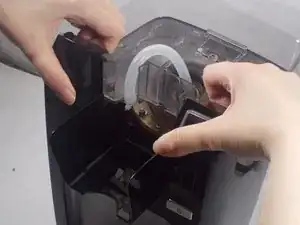

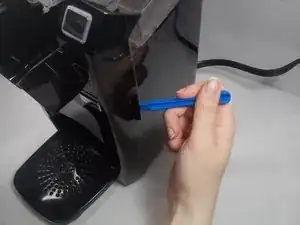

  17. 5aVuAD4Ye4vYLMkB
    5aVuAD4Ye4vYLMkB
    Fwe5PHQNMr6HInh2
    RArkxdJtTpRoPBhN

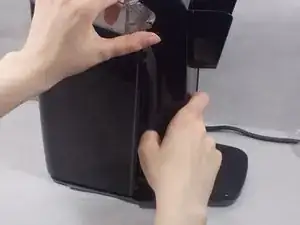

    • Begin to pry open the front plate using the iFixit Opening Tool as shown.

    • Pry upwards in order to take the cover off.

  18. KtLJGG5kn6UYbpxR
    KtLJGG5kn6UYbpxR
    paSRhkAH2DiWnKeJ

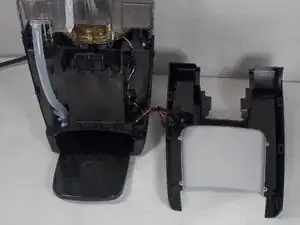

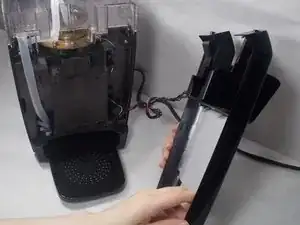

    • Remove the front plate.

    • Be careful of the wires here.

  19. Duj1fRimitpqZqgK
    Duj1fRimitpqZqgK
    IYl5FChWQdy4VHDm

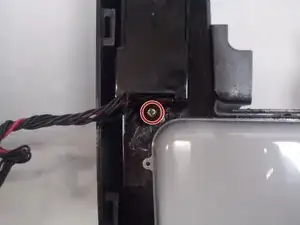

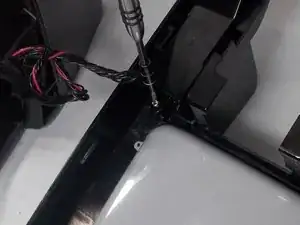

    • Remove one 9.7 mm Phillips #2 screws.

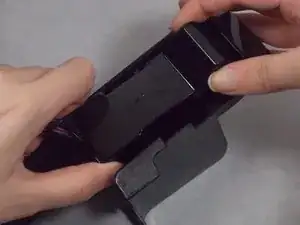

  20. q3egkRCpn2lm6kUr
    q3egkRCpn2lm6kUr
    GvmhUUIc1bWPEDhZ
    mF1dochWIuw2AMDQ

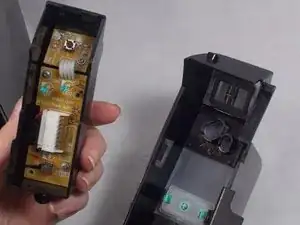

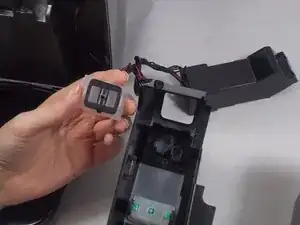

    • Remove the button housing to access the buttons.

    • The brew buttons can be easily popped out of place by pushing inwards from the front of the unit.

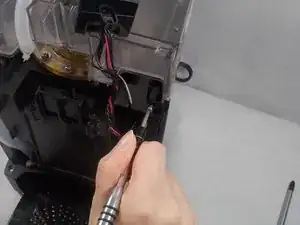

  21. tJJSgcV1BEHC6sOR
    tJJSgcV1BEHC6sOR
    b5k2sFlsLVap564A
    2xDOYMTlFfBurCwq

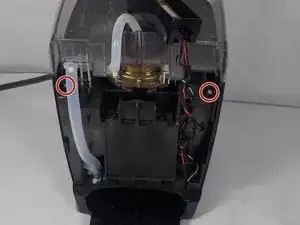

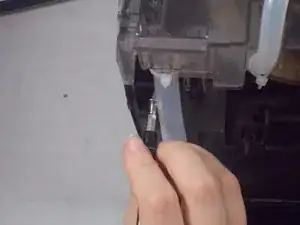

    • Remove two 9.7 mm Phillips #2 screws.

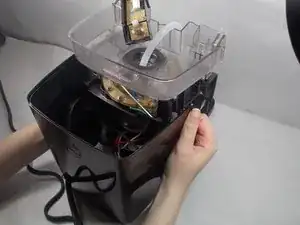

  22. YBhXQTfUsO3NnvUv
    YBhXQTfUsO3NnvUv
    wYAmiOhOtZaM3XXI
    D5Y6UEKd3bVV6kKQ

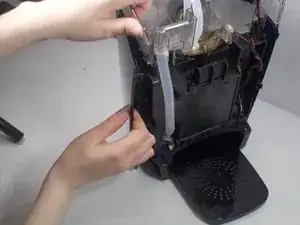

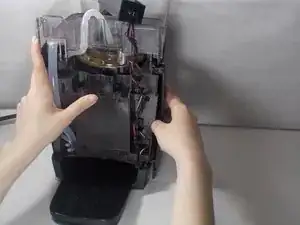

    • Pry open the left, right, and back of the back plate by pulling out and up.

    • Do not be afraid to be fairly forceful when removing the back plate—it is snapped together fairly tight.

    When assembling this back part together, make sure the clips underneath are secured in.

    Daniel Harrison -

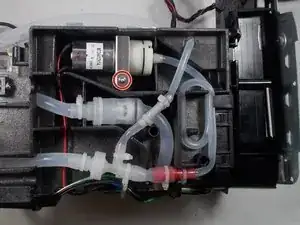

  23. L12oT3mZFoxvIo3W
    L12oT3mZFoxvIo3W
    sIoo1jUHmW5DPuDG

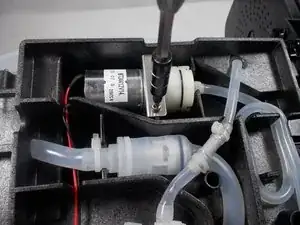

    • Rotate the device to reveal the pump side.

    • Remove one 9.7 mm Phillips #2 screw.

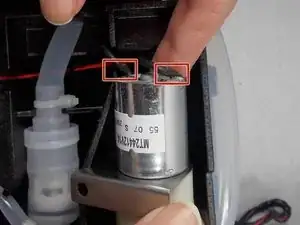

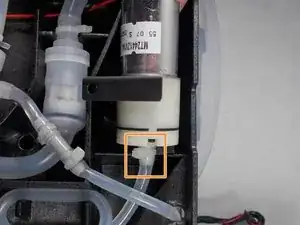

  24. 2jsJiHpVJ1uhnUiC
    2jsJiHpVJ1uhnUiC
    2EtjK5FmiieP1aLT

    • Remove the power connectors attached to the water pump.

    • Remove the water hose attached to the water pump.

    • Remove the water pump itself.

Abschluss

To reassemble your device, follow these instructions in reverse order.
