Keurig K40 Open/Close Sensor Replacement

Geschrieben von: jonathan
  • Kommentare: 10
Keurig K40 Open/Close Sensor Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

25 Minuten

Einleitung

In this guide the user will open the top unit of the Keurig and replace the sensor that tells the device if the head unit is open or closed.

  1. 4l4QBWBFhEhrO5Zy

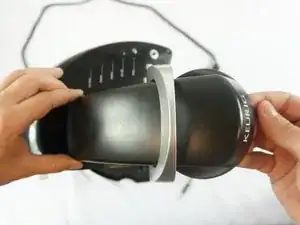

    • Begin by removing the top cover from the device.

    • Remove the cover by gently rocking it back and forth with an emphasis on lowering the left side underneath an internal peg.

    On our K50 Elite, the lid is held on with 2 screws, and two tabs (which I broke off) near the rear. I think to remove the lid, you first take out the 2 screws, under the cover on the front, and then slide the lid backwards to clear the tabs. I attached the rear of the lid by 2 spots of hot glue where the tabs used to go. I also removed the handle before removing the lid.

    texboydmoore -

    Thanks guys, this was super helpful

    Caleb Baker -

    Same with my k40, have to remove two small screws in top front than slide top back. Came right off. After I tried rocking for 1

    Half hr .

    jamesmurphy952 -

    The K40 unit I was trying to fix was leaking from the top inside the unit. When I took it apart (rocking did not work, there were two screws under the front and it slid back easily when they were removed) the curved piece with the reinforcement housing was loose so that water was pumped into the housing whenever coffee was being made. That resulted in a flooded counter and a tripped circuit breaker!

    I ran a zip tie from the crossbar of the reinforcement assembly to a brace on the tank and that made it much less likely to come loose and now the Keurig works as it was meant to do.

    Betsy Knutson53 -

    Clarification: The curved piece of tubing with the reinforcement housing was loose.

    Betsy Knutson53 -

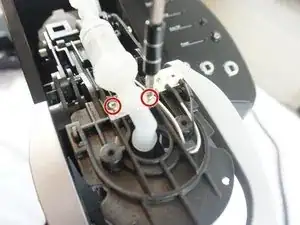

  2. xWXpAAgNYQtbjejF

    • Unscrew both 1.5mm screws located on the water pump.

    That is not a water pump- it i a check valve!

    Paolo Alberto -

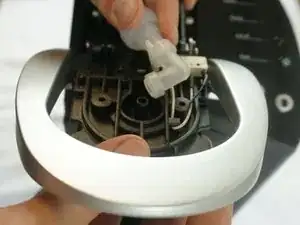

  3. 2agSoYhNyiIFV6gH
    2agSoYhNyiIFV6gH
    Uo4P1OXtVdui3rQU

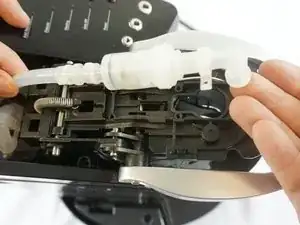

    • Keeping one hand firmly placed on the device, tug upwards on the water pump until it is separated from the device.

    • The water pump and pipe should now be loose and easy to move as shown.

  4. o1pPQwoFNgmXXXZS
    o1pPQwoFNgmXXXZS
    CxfUHjmoJkDo5F3S

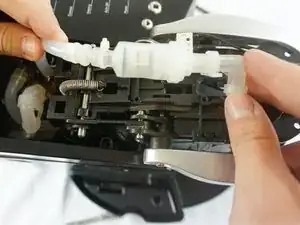

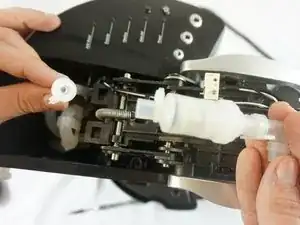

    • Pull on the point where the pipe meets the water pump.

    • The pipe will come loose and the water filter will be free and ready to be replaced.

    My keurig doesn’t pump any water what is wrong

    mastahl -

    What you just pulled out is NOT the water pump, nor is it a filter.  It is a check valve,.  A check valve a device that allows water to flow in only one direction.

    The filter is located in the external water tank.  The pump is located inside the Keurig and is not readily accessible.

    Elmo -

    Great guide but I think it should be renamed… It’s not a Pump that this guide talks about, it’s a Check Valve.

    Monte87 -

  5. aUkjxsJ4bsp5SZM1
    aUkjxsJ4bsp5SZM1
    22n2FgMXQi1fEnZO

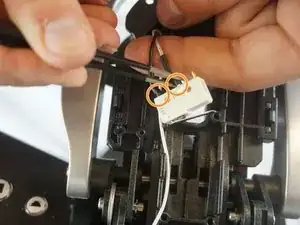

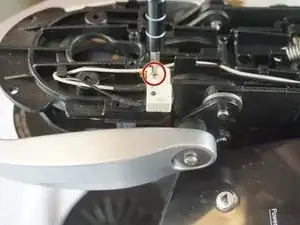

    • Using a #2 Philips head screwdriver remove the 1.2mm screw holding the sensor in place.

    • Locate where the connections are soldered to the sensor

  6. epI2AL1NZKLMsbsk

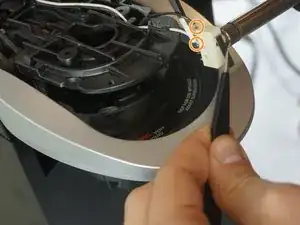

    • Melt the solder that is connected to the sensor.

    • Be careful to avoid any rubber and try to only contact the metal making the connection.

  7. nUPlDCFsOlthpc13

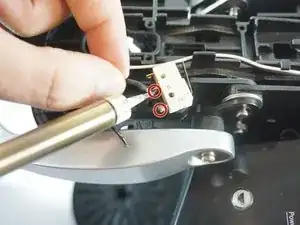

    • Put the replacement sensor back on the post that holds it and begin to solder the two metal connections back to the sensor.

    • Be careful not to touch the end of the soldering iron.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

jonathan

Mitglied seit: 08/02/16

684 Reputation

Ein Kommentar

Where can I get the open/closed sensor? I called Keurig and they told me they don’t handle them.

John Fictum -
