Is your Keurig K55 K lid not staying open? If so, you might have a broken or missing spring. Here's a guide to replace the Keurig K55 Lid Spring.

  1. BwGxtEOqnB2IIPYT
    BwGxtEOqnB2IIPYT
    cyckHmkKTXIQPely
    1dywknheQmmYCJKD
    • Lift the silver handle up.

    • Locate the screw and washer holding the handle in place on each side.

    • Remove both 13mm screws and washers using a Phillips #0 screwdriver.

  2. 3VxaxUsGEcdMP1wG
    3VxaxUsGEcdMP1wG
    N5OdTfarxJtPcbSV
    • Grab the handle and pull it upward and toward the rear of the device.

    • Lift the lid to the fully open position.

    • Remove the two 11mm Phillips screws located on the upper part of the device.

    • Be careful removing the screws; the needle here may be sharp.

  3. qUt1AGr6Z36g4Qcy
    qUt1AGr6Z36g4Qcy
    vSArUUdiUhsi2oUc
    B4sAu123En3Lplbd
    • Lower the lid to just before its closing position.

    • Grab the black top cover with the Keurig logo and gently push back toward the rear of the device to release it.

    • Gently pull the top cover upward and toward the front of the device to remove it.

  4. Opf1IYndtaqDUpNi
    Opf1IYndtaqDUpNi
    IBdZDQRSSVlOnqMG
    1rKfiFU4OrXBxXDS
    • Remove the two 11mm Phillips head screws securing the water pump.

    • Grab the secondary water pump firmly and pull one of the plastic water lines off of the pump.

    • Pull the other line from the water pump.

  5. Xq5YSfF2IkxJ4lfV
    Xq5YSfF2IkxJ4lfV
    WPlukvpQKJSaUXQQ

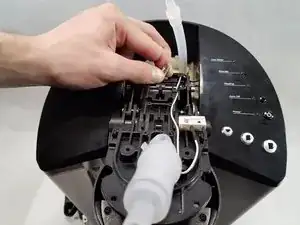

    • Pull the spring off the front hook using two fingers.

    • The spring has a lot of tension, so grip the spring end tightly.

  6. TBjQB1DDBiBSj1wx
    TBjQB1DDBiBSj1wx
    jXuamTmShZdfonFg

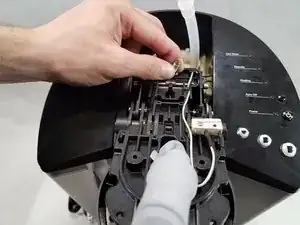

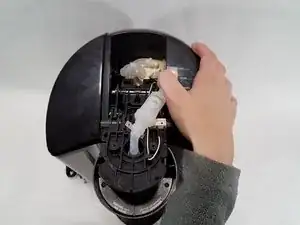

    • Pull the spring off the other hook.

Abschluss

To reassemble your device, follow these instructions in reverse order.
