Keyboard Replacement guide

Geschrieben von: Steven Park
  • Kommentare: 0
Keyboard Replacement guide

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide deomonstrates how to safely remove and replace a Gateway LT2104u laptop key board in order to preserve the function of the device.

  1. aNASlOCyQYK4ow2x

    • Locate the button right above the F8 key.

  2. EEgnd6ydrdvqoaEQ
    EEgnd6ydrdvqoaEQ
    WXLL6qDWcKnYsPvo

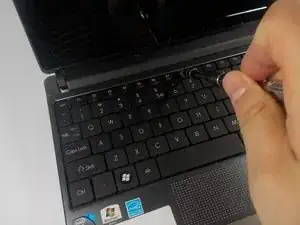

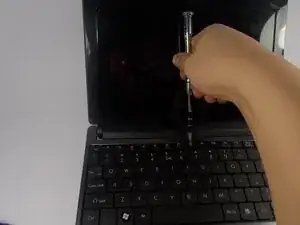

    • Use a spudger or plastic opening tool to push the button away from you.

  3. vlZ2uRT1SXmMXkVO
    vlZ2uRT1SXmMXkVO
    wP2kBOXExQsMvab6
    4fTAQMvtiRlPDYeY

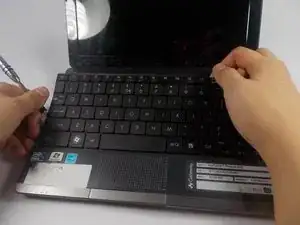

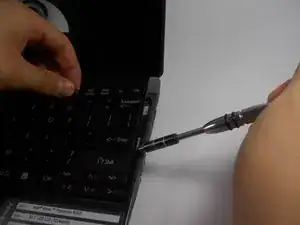

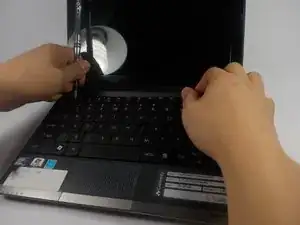

    • Insert the spudger under the keyboard and slide it along the length of the keyboard.

  4. DbOVhPdJDkbHoZK4

    • Do not attempt to remove the keyboard. It is still attached to the laptop by a ribbon cable.

  5. SUdG1ClN1O2hGZVZ

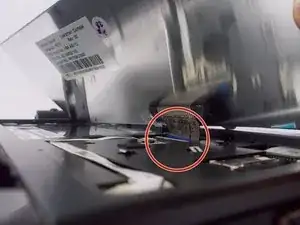

    • Remove the ribbon cable from the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
