Keyboard

Geschrieben von: Regome
  • Kommentare: 0
Keyboard

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

15 - 35 Minuten

Einleitung

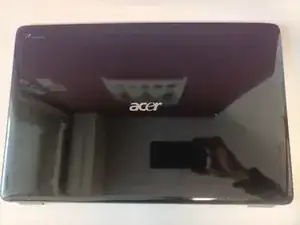

  1. 26ZmvHHh2kMJVEeX

    • Before proceeding, power down your Laptop and remove the power cable.

    • Put your computer in front of you and open up the display.

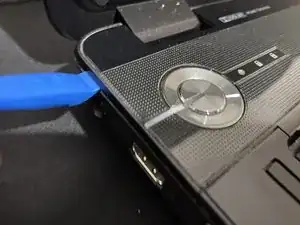

  2. gY2gxHjdhQgM2gK5

    • When you've opened up the display. Remove this panel with a spudger as shown in this picture. Do it like that on the other side too until the panel clicks open.

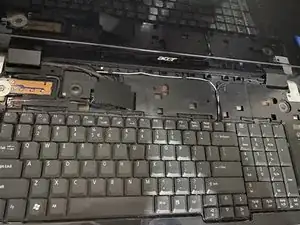

  3. KbDTneEHQk1A2yhJ

    • When you've done everything correct, you should see a view like this.

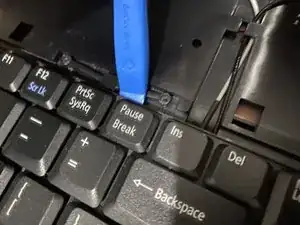

  4. BqvdiFhPRckdOKmF

    • After the previous step, try to put the spudger in between the keyboard and the plastic frame. Then the pins holding it in should click.

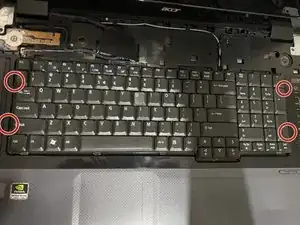

  5. khBKT5lSjhjSPexr

    • When pushing the keyboard try to be careful cause underneath, the keyboard is connected to the motherboard with a ribbon cable.

    • After the previous step there are 4 more plastic pins, for these you can just slide the keyboard out of these.

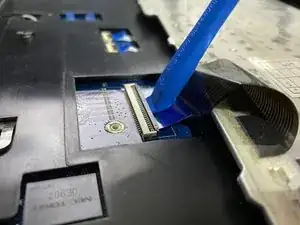

  6. ntulVn1jrICxc4dY

    • Be careful when unplugging the ribbon cable from the motherboard.

    • If you need to replace they keyboard and nothing else now is the time to do so.

    • With a spudger remove the ribbon cable from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
