Kid Galaxy Morphibians Explorer Axle Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

  1. EyUZ1ilTPUOXEhJY

    • Remove both 8.0 mm Phillips #1 screws, one for each wheel.

  2. 3h2fHUHZnL4rT5gp

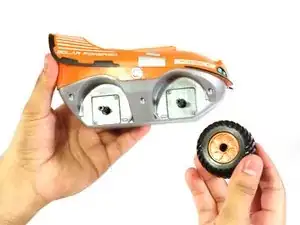

    • Remove the wheels by pulling them away from the RC car.

  3. e2YqC5iQvOkyvYKI

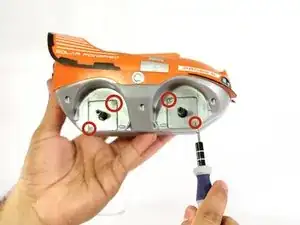

    • Make note of where each driving gear cover is placed. They only go in one way.

    • Remove the eight 8.0mm Phillips #00 screws, two screws for each wheel.

  4. YYpowJkqnLfHHAWm

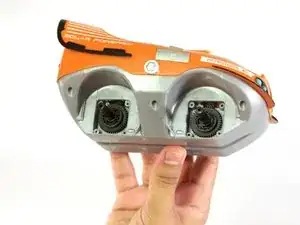

    • Pry open the two gear covers on both sides.

  5. sJrR532e4MD2f6Rc

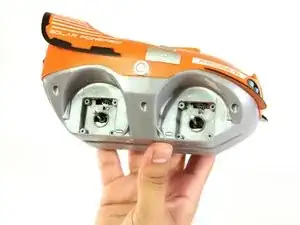

    • Pull the driving gears off the axles by sliding them off the axles and exposing both axles.

  6. vCBW5eXlpJH13oqK

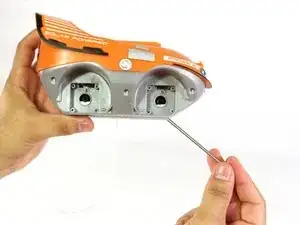

    • Slide both axles from the internal axles guides within the car.

    • Reverse the steps to replace the axles.

Abschluss

To reassemble your device, follow these instructions in reverse order.
