Kindle 1st Generation ON/OFF Power and Wifi Switches Replacement

Geschrieben von: Samantha Manning
  • Kommentare: 1
Kindle 1st Generation ON/OFF Power and Wifi Switches Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide goes through the process to replace the ON/OFF Power and Wifi Switches on the First Generation Amazon Kindle.

  1. q1sA1XFbQnaOFrn5

    • Slide the grey plastic cover laterally off the back of the device.

  2. RviTdAvCRHSK3YOF
    RviTdAvCRHSK3YOF
    khZOQcYguUUDL6YJ

    • Use a plastic opening tool to lift the battery on the side closest to the edge of the device.

    • Unplug the battery from the device by pinching the white connector and pulling.

    • Do not yank the battery or try to disconnect the battery by pulling the wires.

    My present keyboard Kiindle model is 2nd gen-made in China…was warned at purchase by Amazon that it wld not be repairable… will your solution/battery repair work?

    Thanks,Dortrin

    Dorothy Trinen -

  3. tYd26QIxEWvvKF6I

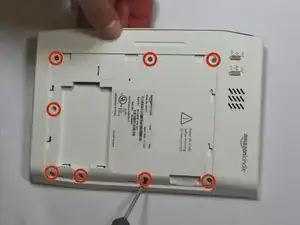

    • Unscrew eight (8) Phillips #00 screws (3 mm).

  4. kJoYT4OAdNCrCBDL
    kJoYT4OAdNCrCBDL
    a6NCXX3QEWGBrOCk

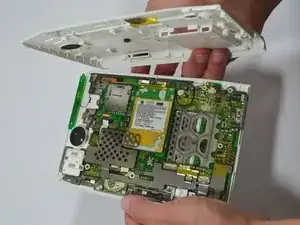

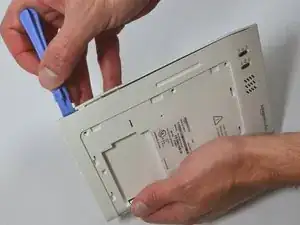

    • Start at one side of the device. Use a soft plastic prying tool to separate the casing of the device. Slowly work your way around the entire device.

    • Avoid prying between the buttons and the device. This could cause damage to the buttons.

  5. WNuDRJNIS5B4uuq2
    WNuDRJNIS5B4uuq2
    a6dtO6mueXd51gLC

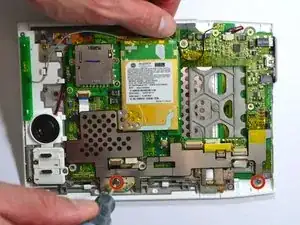

    • Unscrew the two (2) Phillips #00 screws (3 mm) which fasten the metal casing shield.

    • Slowly remove the metal casing shield by lifting it and carefully peeling up the tape.

  6. fD2kTqBsfcMuWGxE

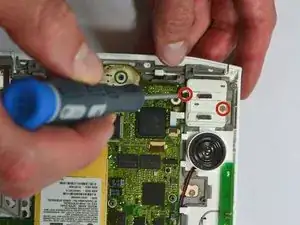

    • Remove the two (2) Phillips #00 screws (3 mm) which fasten the ON/OFF Power and Wifi Switches to the device.

  7. YRlgGRiAYQbDF2A6
    YRlgGRiAYQbDF2A6
    FpCQHe3QdtamXXpN

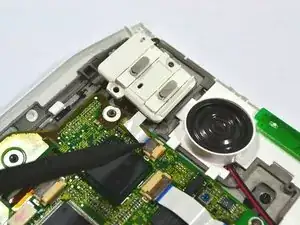

    • Lift the flap attaching the blue and white ribbon cable to the motherboard by lifting it vertically with the pointed-end of the spudger.

    • The flap is connected via a hinge. Once you lift the flap, it will stay up and the cable will be lose. Remember to snap it back down during reassembly.

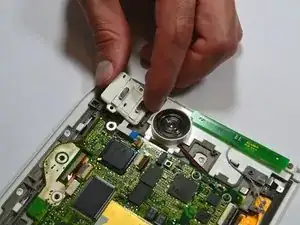

    • Carefully lift the ON/OFF Power and Wifi Switch vertically from the device motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
