Use this guide to replace the SIM Card in your Kindle 2.
Ersatzteile
-
-
Lay the Kindle face down on a soft cloth to protect its screen.
-

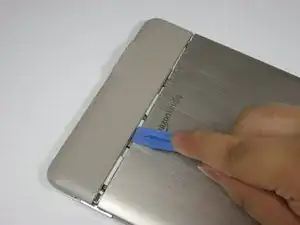

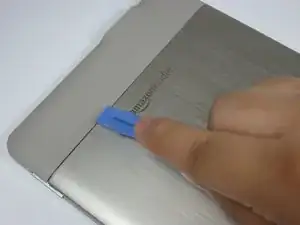

Wedge the plastic opening tool in the small opening between the grey plastic and the metal casing.
-
Move the plastic opening tool across the opening while pressing down to separate the grey plastic from the metal casing.
-

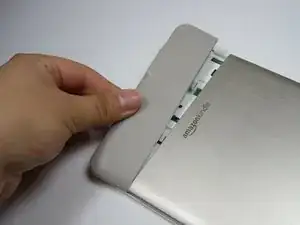

Slide the gray plastic top piece away from the Kindle's metal casing.
-
Once the gray plastic top piece is detached from the metal back cover, remove it.
-
-
-

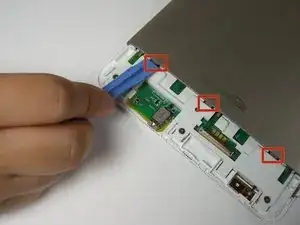

Use the plastic opening tool to push down and pry towards the metal casing to release each of the three clips that hold the metal case in place.
-

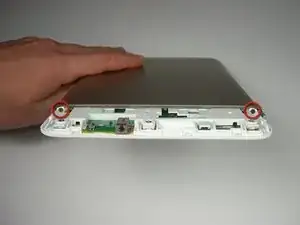

Remove the metal casing.
-
-
-

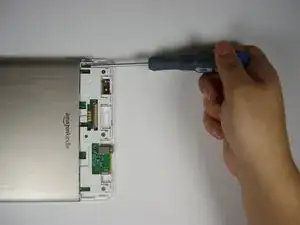

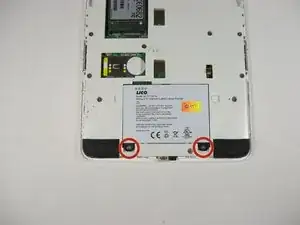

Use a Phillips #00 screwdriver to remove the two 3 mm screws that hold the battery in place.
-
-
-

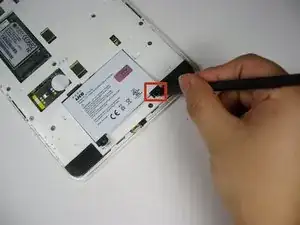

Pry upward under the black tab with the spudger to dislodge the battery.
-

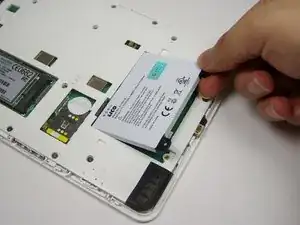

Use your fingers to lift the battery out of the device.
-
-
-

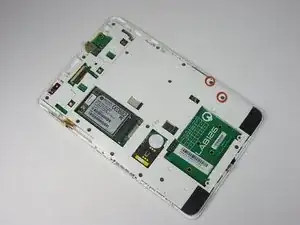

Remove 16 3mm Phillips #3 screws from the plastic panel.
-

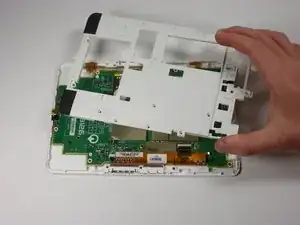

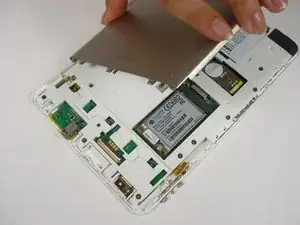

Lift the plastic panel and place it away from the Kindle 2.
-
-
-

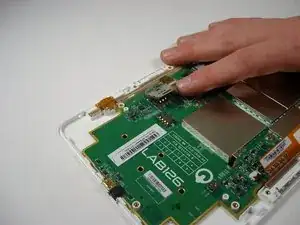

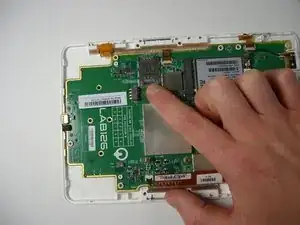

Locate the SIM card slot above and to the left of the LAB126 Logo and beneath the Wireless Card.
-

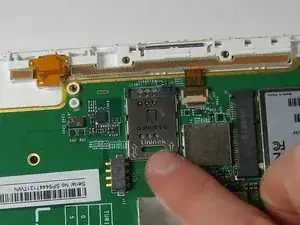

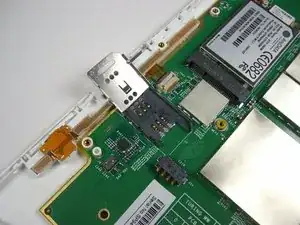

Push the SIM card in the direction of the "UNLOCK" arrow on the SIM card case.
-
To reassemble your device, follow these instructions in reverse order.
