Kindle 2 Screen Replacement

Geschrieben von: Dayna Scott
  • Kommentare: 14
Kindle 2 Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

18

Zeitaufwand

30 - 45 Minuten

Einleitung

If your second-generation Kindle screen is cracked, not responding to touch, or has a malfunctioning display, it may be time to replace it. Replace the screen on your Kindle 2 with this installation guide.

Kindle (2nd Gen) LCD displays can be purchased on eBay, AliExpress, Amazon, etc.

  1. tFSCV5NCLvslROAv
    tFSCV5NCLvslROAv
    Y2xHVJgKixskh6jb
    uYYrYVZFo6pxGmp6

    • Lay the Kindle face down on a soft cloth to protect its screen.

    • Wedge the plastic opening tool in the small opening between the grey plastic and the metal casing.

    • Move the plastic opening tool across the opening while pressing down to separate the grey plastic from the metal casing.

    • Slide the gray plastic top piece away from the Kindle's metal casing.

    • Once the gray plastic top piece is detached from the metal back cover, remove it.

    I had a heck of time using the spudger. I have found that grabbing the corners and using my thumbs to push the plastic away worked like a champ.

    teamhudson -

    For anyone still looking for this in 2020, see my comment here for how to properly remove the back.

    Kindle 2 Teardown

    Dave76 -

  2. DQfEncvDSVecVEok
    DQfEncvDSVecVEok
    atnXwbeBEbNIhSfV

    • Use a Phillips #00 screwdriver to remove the two 4 mm screws from the metal casing.

  3. LMxReeGrxluARKYY
    LMxReeGrxluARKYY
    IbKDLrQmJsnQEEdl

    • Use the plastic opening tool to push down and pry towards the metal casing to release each of the three clips that hold the metal case in place.

    • Remove the metal casing.

    • The volume control button rests in a slot on the side of the Kindle. When the metal casing is removed, the volume control button may fall out. When reassembling, place the volume control button back into its slot.

  4. f2kKX5vuL2PvQOOk

    • Use a Phillips #00 screwdriver to remove the two 3 mm screws that hold the battery in place.

    • The battery should be removed before continuing with the rest of this guide to prevent harm to you and the device.

  5. dLnFrYP2E32CGugi
    dLnFrYP2E32CGugi
    2rdSIry2RHfNoRKV

    • Pry upward under the black tab with the spudger to dislodge the battery.

    • Use your fingers to lift the battery out of the device.

  6. BOPHFW6JBJfWHOce

    • Rotate the Kindle 180 degrees. Locate the wireless card with the AnyData logo on the top left and the FCC symbol on the right.

    • Use a Phillips #00 screwdriver to remove the two 2mm screws from the wireless card.

  7. ResIcZ3c2epeCwyq

    • Use the plastic opening tool to wedge underneath the connection and gently pop off the wire cap.

    STEP 7.5 Remove Plastic Protector. There are 16 2.5mm screws keeping it in place. Remove them and the protector will come off easily. I used this guide a few months ago and it had a step here explaining this that now seems to be missing.

    teamhudson -

  8. AkyCATlMoh2MsXeB
    AkyCATlMoh2MsXeB
    pLsYXCrqiFQKGUJ2

    • Use your fingers to lift the left end of the wireless card.

    • Pull the card out of the slot.

  9. XFSiY33jSjRCrfJj
    XFSiY33jSjRCrfJj
    VTvpwIQVEW4CuwgH

    • Remove 16 screws from the midframe.

  10. HhVgFA5wWMxQkmrW
    HhVgFA5wWMxQkmrW
    GCK6XUsRAFlNEAgV
    KJcUgdEiKqwRnrUT

    • Use the plastic opening tool to push each side of the crimp away from each other. This will open the crimp holding the wire.

    • Use your fingers to lift the wire out of the crimp when there is enough separation between the sides of the crimp.

  11. JFhtdjADL2QJvlpC
    JFhtdjADL2QJvlpC
    UKZULRYSYRTmvMWL
    AiAYUWWAWt4YIwmy

    • Wedge the opening tool underneath the plastic ribbon and gently pull up to lift the brown connector flap.

    • Squeeze the plastic ribbon gently with the tweezers and pull away from the connector to remove it.

  12. GB5tisLpLZiPgsUx

    • Locate the next brown connector three inches to the right of the previous connector and repeat Step 10 to remove the plastic ribbon.

  13. aeNfUcoImhAEBbj3
    aeNfUcoImhAEBbj3
    BsQiYhALojK3BW3j

    • Rotate the device 180 degrees and locate a smaller brown connector on the left side of the device.

    • Repeat Step 10.

  14. EOTjgDEax5QrJKWU

    • Push your finger down on the last plastic ribbon.

    • Slide your finger away from the connector to remove the last ribbon.

    This cable's connector also has a hinge that must be opened to put the cable back in properly.

    teamhudson -

    You don't have to remove this connector to look at the keyboard. Remove it only if you are looking to replace screen.

    Also the black connector can be popped open like the other brown ones, before you pull out the connector cable.

    Amit Saxena -

    This particular connector must be seated all the way, for the screen to work and it's not easy to get it back in all the way. Be sure to note how far in it is, before removing it.

    gruntso -

  15. fJt2TNySBESjZVJm

    • Use a Phillips #00 screwdriver to remove the four 4 mm screws from the motherboard located around the LAB126 logo.

  16. SWNJ2K1Ys3QMpuXY

    • Grab the bottom corner of the motherboard and safely remove it from the Kindle.

    Does anyone know what the "-1.29" number means?

    Jan Andreas Knudsen -

  17. OULFrMaKoiRfOvlC

    • Flip the motherboard over so the screen is facing up.

    • Using your fingers, gently pull off the plastic header bar located at the top of the screen attached to the motherboard.

  18. Uf2G4gxQm2ugfiSx
    Uf2G4gxQm2ugfiSx
    e1JRPtyE5aMQFXKl
    aACViy2HM6OlQ3K6

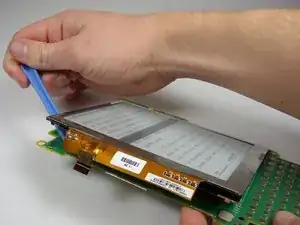

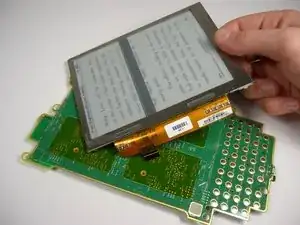

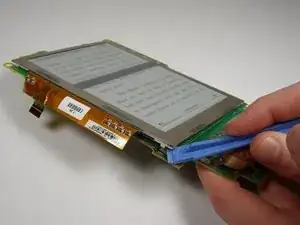

    • The screen is attached to the motherboard with double sided tape.

    • Pry underneath all four sides of the device with the plastic opening tool to remove the screen from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
