Kindle Fire HD 10 Sound and Power Button Replacement

Geschrieben von: William Hess
  • Kommentare: 3
Kindle Fire HD 10 Sound and Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

This is a guide on how to replace the sound and the power buttons on a 7th generation Amazon Kindle Fire HD 10.

These buttons often break through normal use. These buttons are used for changing the volume of your 7th generation Amazon Kindle Fire HD 10 and turning the screen on and off.

  1. DVXVFNIUSMD2jmCT
    DVXVFNIUSMD2jmCT
    Vpo4GfFT4PCXwPeS
    OV1eK1jtYmNWuM2N

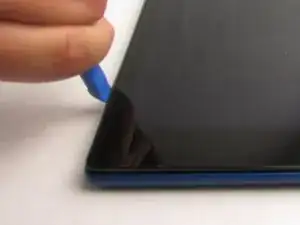

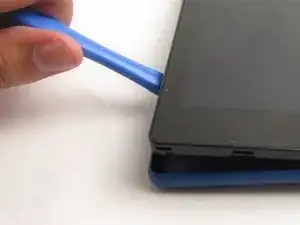

    • Use an iFixit opening tool to pry open the back case.

    • Make sure to go around the whole case before removing the whole case.

  2. xvPxhfiPyTWZiYNy
    xvPxhfiPyTWZiYNy
    uMjIBhVK6JUnYPUZ

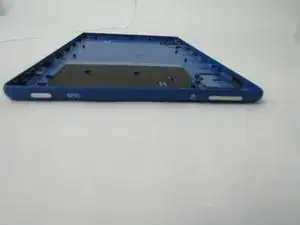

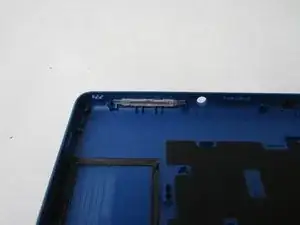

    • Power and Sound Buttons can be found on the top of the device.

    Try to avoid locate steps. What do you want the user to do with the buttons? Also, does the orientation change between pictures?

    Alex Watkins -

  3. p4QbBmRPohp5xIne
    p4QbBmRPohp5xIne
    3aEDvgcRtMBGmEn1

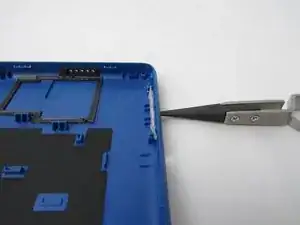

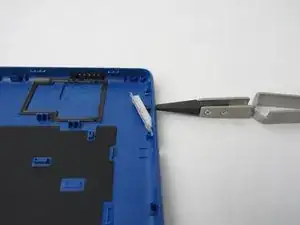

    • Push out the sound button with the tweezers gently.

    • Use tweezers to then remove the button.

    Which tool? Should I push gently, or with force?

    Alex Watkins -

  4. KOn4mFQOSUGdyhUn
    KOn4mFQOSUGdyhUn
    TWFXXBsjaeZHMshj
    FAtGnVEYEKGGkgSi

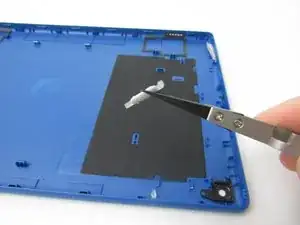

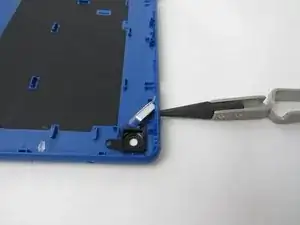

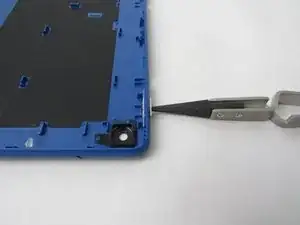

    • Use tweezers to remove and pick up the button carefully.

    Remember to avoid locate steps. Consider using markup to make where these elements are more evident.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
