Kindle Fire HD 6 Screen Replacement

Geschrieben von: Cassandra Beck
  • Kommentare: 12
Kindle Fire HD 6 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

30 Minuten

Einleitung

This guide explains how to remove the screen from the Kindle Fire HD 6. This guide has many steps, so make sure to give yourself enough time to complete all of these.

Note that some of the connectors in this guide are delicate and require special removal, so make sure to read the steps completely before attempting them.

  1. GrKHUCGbSffVcSeV

    • Place the device face down on a clean cloth or another smooth surface.

    • In the following steps, you will need to apply some force to your device. If your device is on a rough surface, you may scratch the screen.

    • Insert the plastic opening tool between the device’s front and back panels. You might need to wiggle the tool up and down to wedge it in the gap.

    • Maneuver the tool around the device until the back unclips from the front panel.

    I wasn't sure that I would be able to fix my kindle. I did purchase another kindle, which was alright. I wanted a second kindle so with the purchase and my old one know fixed I am really glad. I feel if I have any future problems I will be able to fix it myself.

    RUBY PEOPLES -

  2. PItGFeC3cG1LEHBF
    PItGFeC3cG1LEHBF
    mZEoeTjXYQATeQQt

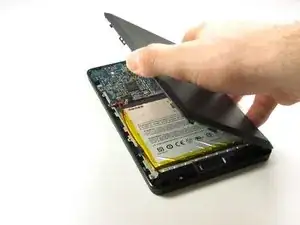

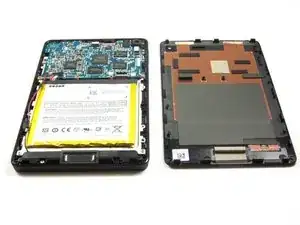

    • Carefully separate the back panel from the rest of the device internals.

  3. 4NC25d4TGqRwJnD5

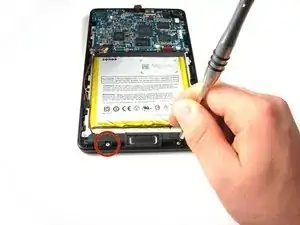

    • Unscrew the two 3.5mm T5 Torx screws at the base of the speaker.

  4. 3AvsM54gIQZtJQYu
    3AvsM54gIQZtJQYu
    qiUETX3IP2VC1V4C

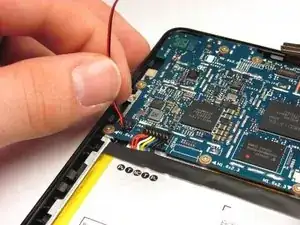

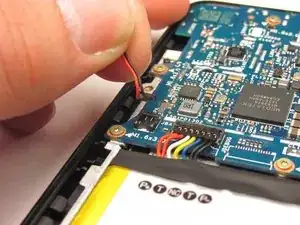

    • Unclip the speaker wire that runs up the side of the battery and clips into the motherboard next to the battery connector. Gently pull it straight up.

    How do you plug it back in?

    Jonathan Matos -

  5. teMCtXwHZEjracmw
    teMCtXwHZEjracmw
    Wrq1BAvysfbaUEDF

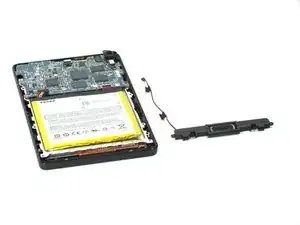

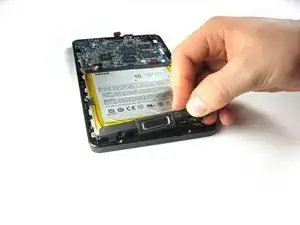

    • Lift the speaker out of the device.

  6. SGEZJ4xgpPmmZ3AH

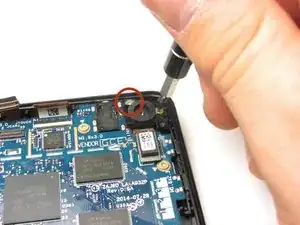

    • Unscrew the two 3.5mm T5 Torx Screws from the top of the camera.

  7. NZNKXT3SY4UBIWPe
    NZNKXT3SY4UBIWPe
    O66TvXwLODhEE5IQ
    k3GowICd1wOo4oGT

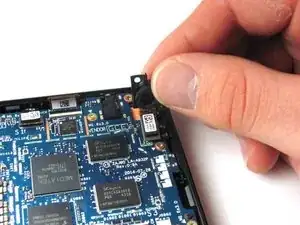

    • Be careful not to damage the camera lens as you remove the camera.

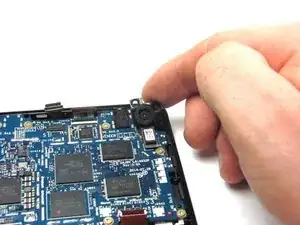

    • Gently pull the camera up and out of the device. As you pull, unclip the black and white connector with orange tape by popping it off at its base.

  8. SQGBpUw5JBWcEVdc

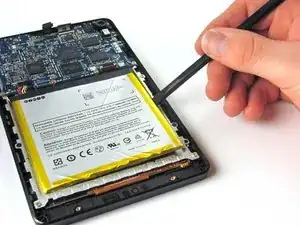

    • Gently pry the battery free from the adhesive holding it in place.

    • Take care not to pierce or rupture the battery, which can release dangerous chemicals.

    • If you're having trouble working the battery free, warm it up with an iOpener or hair dryer to soften the adhesive, and then slide a credit card behind the battery to break up the adhesive.

    • Be careful not to yank the battery out—you'll need to disconnect a connector before removing the battery completely.

  9. UD1ghyIVPV5cZIfN
    UD1ghyIVPV5cZIfN
    hjfdWxhlPRVGmgSG

    • Remove the multi-colored connector that joins the battery and the motherboard by pulling it straight up.

    • Remove the battery.

  10. GJLtJLBCcIX3ctf1
    GJLtJLBCcIX3ctf1
    g2dyDZXjloRprcFH

    • Zero insertion force connectors can break easily. Before performing this step, read the iFixit Guide to Recognizing and Disconnecting Cable Connectors to find out how to safely remove them.

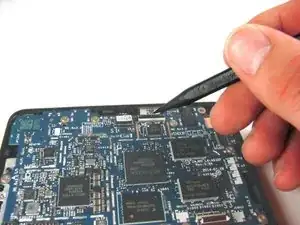

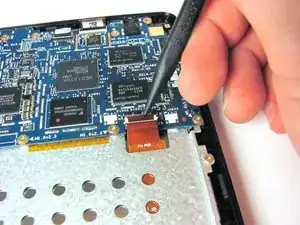

    • Use the tip of the spudger to disconnect the two zero insertion force connectors on the bottom and top of the motherboard.

    • The first connector is attached to an orange tape, and is located in the bottom-right corner of the motherboard. Remove this connector.

    • The second connector is long and thin, and is located at the top of the motherboard, a bit to the right of center. Remove this connector.

  11. iLjEPaFCoApFcKvk
    iLjEPaFCoApFcKvk
    m1DEX3VpdUPFPNfg

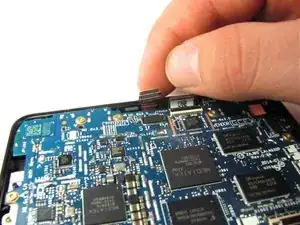

    • Disconnect the black and white connector at the very top-center of the motherboard by unclipping it using the flat side of the spudger.

  12. mVdR3JKqlKhYOZN3

    • Unscrew the ten 3.5mm T5 Torx screws around the edge of the motherboard.

    In my device, there were nine screws, 3 2mm and 6 3.5mm.

    drbacher -

  13. arPJiSJHjhGWJKmD
    arPJiSJHjhGWJKmD
    yuRgr1Z64nhLKLG4

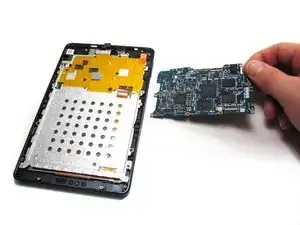

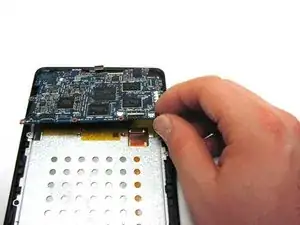

    • Starting from the bottom, lift the motherboard out of the device. You will have to push the motherboard about two millimeters toward the top of the device to unhook the top edge.

  14. 6eulaFxmV2WbUIky

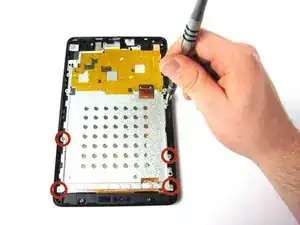

    • Remove the five gold-colored 2mm T5 Torx screws from the metal plate.

    In my device, there was a sixth screw on the upper left side. Also, these screws were 3.5mm, not 2mm.

    drbacher -

  15. sIcVapkoBy4Lc1aY
    sIcVapkoBy4Lc1aY
    qtLAGuCeL5Q1jwj1

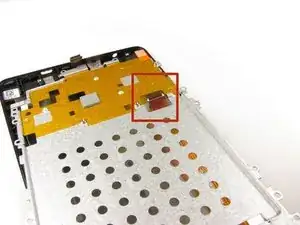

    • An orange tape that connects to the motherboard runs through the metal plate. When removing the plate, be careful to maneuver the plate around the tape, and make sure not to stretch or rip the tape.

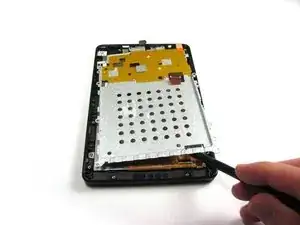

    • Lift the metal plate up using the flat side of the spudger.

  16. CH5rMXFOAqQINxSp
    CH5rMXFOAqQINxSp
    kUyuBxQ3iauFZZxV

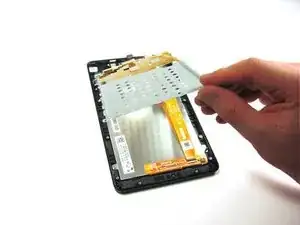

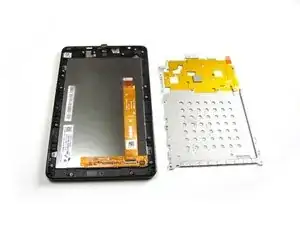

    • Remove the metal plate from the device.

  17. 5PP6PRKgIl2TQJ1I

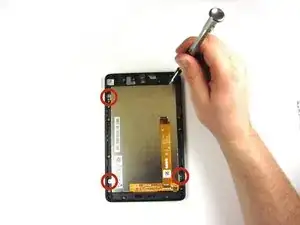

    • Unscrew the four silver-colored 2mm T5 Torx screws that connect the screen to the bezel.

  18. QmcvFMxSQyeppSdZ
    QmcvFMxSQyeppSdZ
    3MBdOFTl5SYkZBFN
    fkwLeodUBX3PpMST

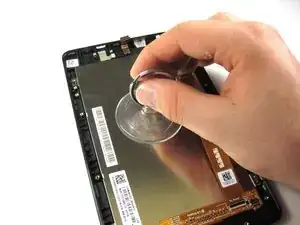

    • Be careful not to scratch the screen while you're removing it. After you've removed the screen, place it on a cloth or another smooth surface to make sure that you don’t scratch it once it is out of the device.

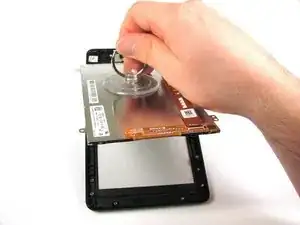

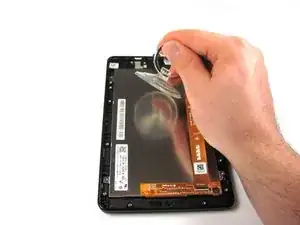

    • Push the suction cup against the screen. Press down firmly on the center of the suction cup to create a good seal.

    • Gently pull the screen out of the device.

  19. Jq2DJ3gZftl2owVX

    • Place your screen on a cloth or another smooth surface to prevent it from getting scratched.

Abschluss

To reassemble your device, follow these instructions in reverse order.
