Kindle Fire HD 8.9" Speakers Replacement

Geschrieben von: Ian Meeder
  • Kommentare: 3
Kindle Fire HD 8.9" Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

10 - 20 Minuten

Einleitung

Fixing the speakers for your Kindle can be a pain - especially if you don't know where to start. But with a little direction and some elbow grease, you should be able to remove the speakers and replace them in no time.

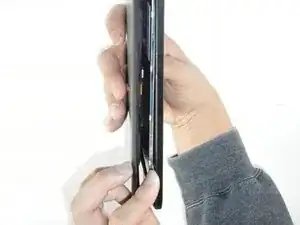

  1. bkbEhyiXZ1HjKZ4C
    bkbEhyiXZ1HjKZ4C
    gPtwNbXUYPDcx3LA
    BTCfm1oDvMG3DyM3

    • Insert a large plastic opening tool next to the Kindle's headphone jack.

    • Make sure the notch on the plastic opening tool is facing the back of the Kindle.

    • Move the plastic opening tool evenly around the Kindle, separating the two halves.

    • Be careful not to completely separate the rear cover. There are two delicate flex cables that connect the display assembly to the motherboard.

    Getting the SIM card dummy plug out a real challenge. Broke off one end. Seems this part was never intended to be removed.

    Bob Steger -

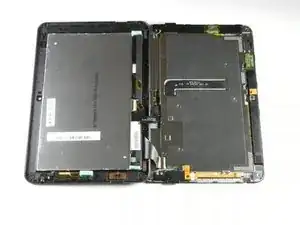

  2. En1T3mMhf3MtTQOA

    • Set the Kindle down on the rear case.

    • Holding the display assembly near the camera, carefully open the display assembly up to about 90 degrees from the rear case.

    • These images show the Kindle laying flat. In order to prevent damage to the flex cables, keep the Kindle open at 90 degrees while disconnecting the display assembly.

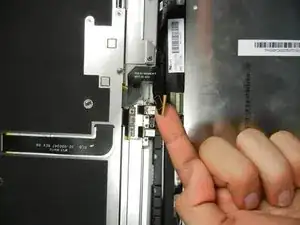

  3. IyOjwXpAigmDHn1s
    IyOjwXpAigmDHn1s
    Ai1asMaRQKIdSJLM
    EfBUsZv31oTnkMwG

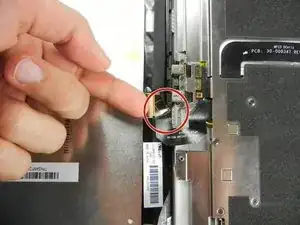

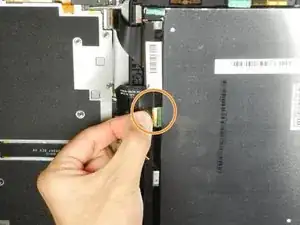

    • Lift the retaining flap on the ZIF connector of the upper flex cable.

    • Gently pull the cable out of its socket.

    • This flex cable is delicate. Be careful not to crease or bend it while working.

    This is very delicate. The flap is very easy to break off. Remove the yellow tape on both these connectors and replace with ordinary plastic tape upon reassembly. If you don't tape them you'll pull them apart working on the other. A helper to hold the assy is a good idea.

    Bob Steger -

  4. RTnuHjAGGrSRL6cX

    • Separate the display assembly from the rest of the device.

    • When reassembling the device, align the two halves of the case before connecting the flex cables.

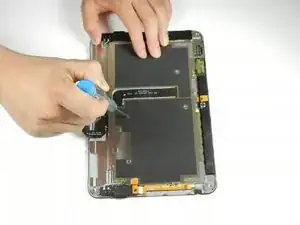

  5. gjKYWwHecqaS1Xqi
    gjKYWwHecqaS1Xqi
    YfRr52rmAwthY1GK

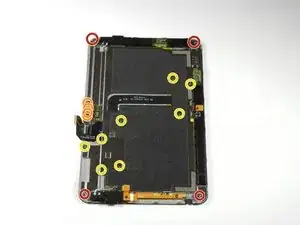

    • Remove the following sixteen screws from the metal midframe on the rear of the device:

    • Four 3 mm Phillips screw (located in each corner of the device - noted in red in the diagram)

    • Four 3 mm Phillips screws (surrounding the ports - noted in orange in the diagram)

    • Eight 3 mm Phillips screws (located around the body of the midframe - noted in yellow in the diagram)

    The screws are next to the ports, not the camera.

    Joshua Feist -

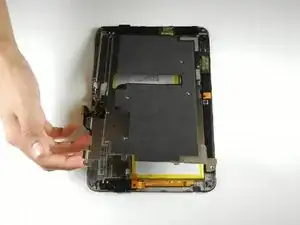

  6. DjUX1nEXyevr4sBD
    DjUX1nEXyevr4sBD
    As3HuBvOKwd4yyxA

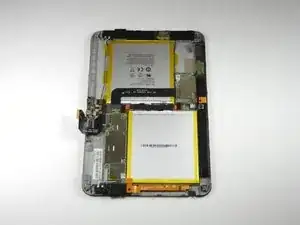

    • Carefully remove the metal midframe.

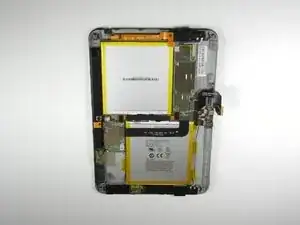

  7. TCbLjufsfeNXb6Sx
    TCbLjufsfeNXb6Sx
    iAtZZJjbxmgWQVrG

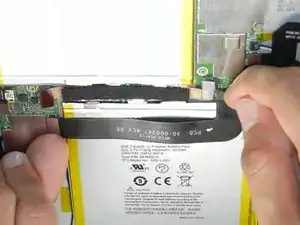

    • For easier handling, position the Kindle as shown.

    • Lift up on the silver ends of the black flex cable that lays across the battery.

    • Gently pull the black flex cable from the battery.

  8. OYQ2HfGTqbZ6GAw5

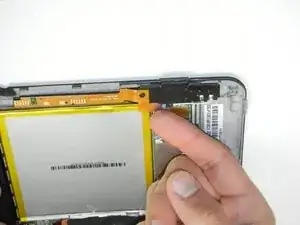

    • Disconnect the orange button cable from its socket on the motherboard.

    • Don't remove the button from the device. It is adhered to the case and may tear during removal.

  9. gfY25g1siouZKOr1
    gfY25g1siouZKOr1
    cB6DWGBZ6kp1f1QF
    JhsmthgLd3OhKAht

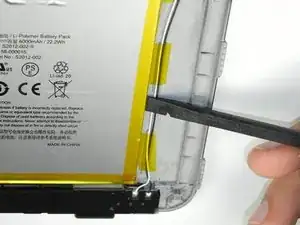

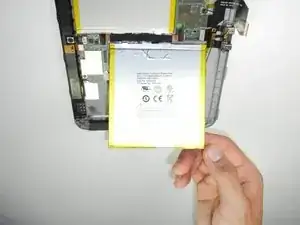

    • Starting at the outside edge of the battery, use the flat edge of a spudger to separate the battery from the rear of the device.

    • Work carefully. Excessive force on battery may cause it to bend, break, or crack.

    • Move the spudger along each side of the battery, prying upwards with even pressure.

    • As the adhesive releases, push the spudger further underneath the battery.

    • Once half of the battery is detached, pry the other half in the same manner.

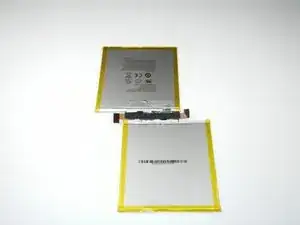

    • Remove the battery assembly from the Kindle.

  10. EImRP4hquiJ1PrwY

    • Looking back at the Kindle before the battery was removed, locate the the two speakers on the top and bottom.

    • We will be starting with the right (bottom) speaker.

  11. aWrKYs2cNEUZbWtL
    aWrKYs2cNEUZbWtL
    KKmaABsjdmIpuOnw
    pKAuMvKLWVeEfBGm

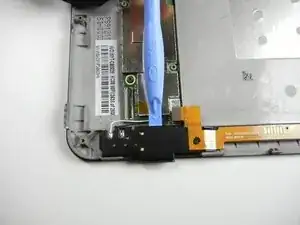

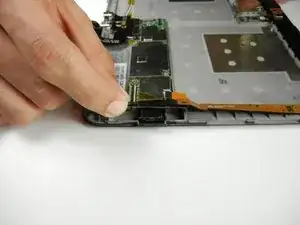

    • With a plastic opening tool, pry along the top edge of the plastic casing.

    • Prying will be difficult considering the liberal amount of adhesive used to keep the casing in place. Don't give up.

    • Inside the casing is a small rectangular silver component. This is the speaker.

    • Pay attention to the orientation of the speaker.

    • Using pliers and enough force, pull the speaker upward and out of the casing. Once again adhesive may prove difficult.

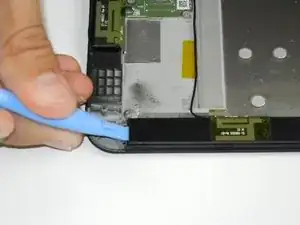

  12. mMtAaktqvufYQKuQ
    mMtAaktqvufYQKuQ
    ADRK4RdIRnxQDJen

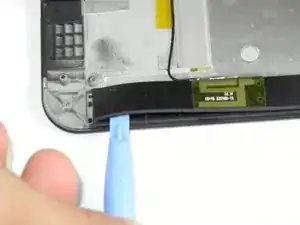

    • To get to the left speaker use a plastic opening tool and pry open the plastic casing.

    • We recommend starting at the edge furthest from the speaker because there is less adhesive.

    • Move along the edge, forcing the opening tool in further and prying the two sections apart.

    • Don't be afraid to use force as the casing is flexible.

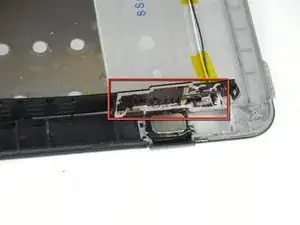

  13. yCROIExrS2L36NDT
    yCROIExrS2L36NDT
    LHatAUsaEULYIMhr

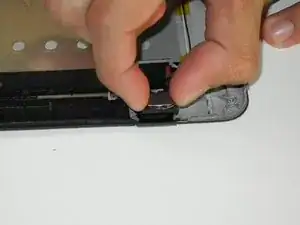

    • Continue to move the opening tool along the edge until the entire casing is open.

    • Around the speaker is an extensive amount of adhesive (the white ribbons) and will require more force to separate.

    • Pay attention to the orientation of the speaker.

    • Once the left speaker is accessible, use your fingers or some tweezers to pull the speaker upward and out.

    • Again there will be adhesive to make the process that much more enjoyable. Who doesn't like a challenge?

Abschluss

To reassemble your device, follow these instructions in reverse order. Be sure to replace the speakers in the correct orientation.
