Einleitung
Before starting, make sure the device is powered off and placed screen down.
Werkzeuge
Ersatzteile
-
-

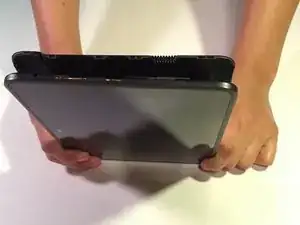

1. Using the plastic opening tool, carefully insert the opening tool on all four corners of the Kindle Fire and lift up until you hear a slight popping noise.
-
-
-
Using the plastic opening tool, start from one corner and go around the Kindle Fire using the tool in a down and up motion to continue to pop off the backing.
-
After you lift all four corners and you check for tape, it is safe to proceed.
-
Once all the plastic clips holding the screen to the plastic back of the Kindle Fire are separated, the back should be safe to lift up completely.
-
-
-

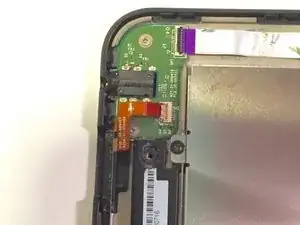

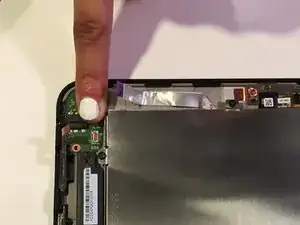

Locate the headphone jack, which is by the volume buttons on the vertical edge of the Kindle.
-
-
-

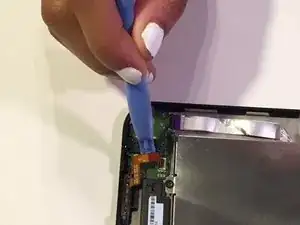

Using the plastic opening tool, carefully lift up the burnt orange tab that is connected to the audio board.
-

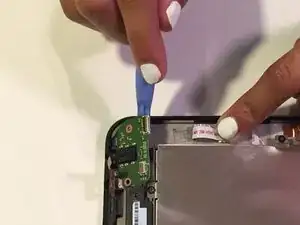

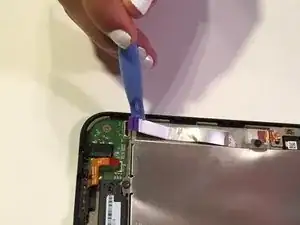

Do the same thing with the purple tab on the other side of the audio board.
-
-
-
The headphone jack is now safe to lift up with the plastic opening tool, and then with your hands to completely detach the headphone jack from the Kindle.
-
To reassemble your device, follow these instructions in reverse order.
