Kindle Fire HDX 7" Ambient Light Sensor Replacement

Geschrieben von: Blake Klein

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

If your Kindle Fire HDX 7” tablet is staying bright when the night falls and dark when the suns out, the ambient light sensor may be busted.

First check the settings and make sure that auto brightness is turned on, if it is, follow this guide to replace it yourself.

Insert an opening pick underneath the speaker bezel, and slide it along the perimeter to separate it from the tablet.
The adhesive is strong and may require an iOpener, or heat gun, to soften.

Wedge opening picks around the perimeter between the display and back case.
Work the opening picks around the perimeter until the two halves disengage from each other.
Don't completely separate as the display ribbon cable still connects the two.

Use the flat end of a spudger to pry up and disconnect the rear panel press-fit connector from the motherboard.

So I don’t remove the MLB?

When re assembling the press fit connector will not stay in place when trying the shut the case, it seems too short.

Is there a nack or trick to doing this please?

There may be a glue strip between the battery and the outside case. Gently pry the case open and use the flat end of a spudger to separate the glue strip.

Pry up the ambient light sensor press-fit connector from the motherboard with the flat end of a spudger.

The motherboard has been removed in this image, but its removal is not necessary to complete this replacement.

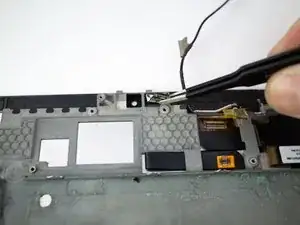

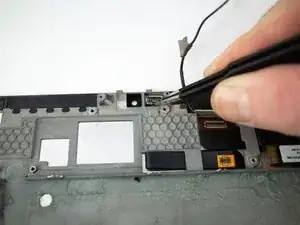

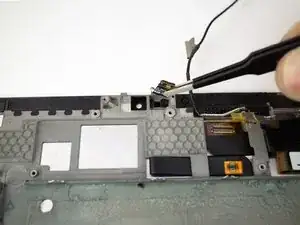

Pull the ambient light sensor out of its socket with a pair of tweezers to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
