Kindle Fire HDX 7" Power Button Replacement

Geschrieben von: Blake Klein
  • Kommentare: 2
Kindle Fire HDX 7" Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

1 - 2 Stunden

Einleitung

The first step to every electronic repair is to turn it off and back on again. But, this is only possible if your power button works.

If it’s broken, follow this guide to replace the power button on your Kindle Fire HDX 7” tablet.

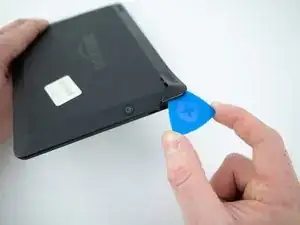

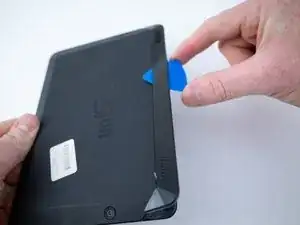

  1. gxoRiHhEOixXuexo
    gxoRiHhEOixXuexo
    QCdpcKS6dLTSEsBj
    cOYVVwypVVOURgU3

    • Insert an opening pick underneath the speaker bezel, and slide it along the perimeter to separate it from the tablet.

    • The adhesive is strong and may require an iOpener, or heat gun, to soften.

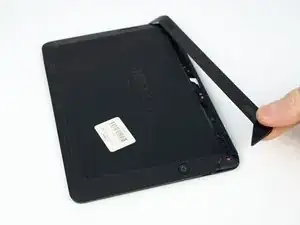

  2. YZQpowUT4UKB2PT5

    • Remove the speaker bezel.

  3. chnPZTYvwdvqU4lm

    • Remove the six pink 3mm T3 Torx screws from the back case.

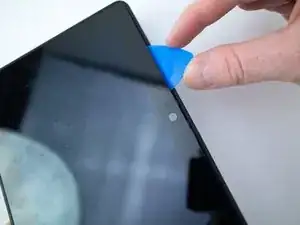

  4. M2u6tqVyPxkZbHvJ
    M2u6tqVyPxkZbHvJ
    nFJCsveAvlXQHdWx

    • Wedge opening picks around the perimeter between the display and back case.

    • Work the opening picks around the perimeter until the two halves disengage from each other.

    • Don't completely separate as the display ribbon cable still connects the two.

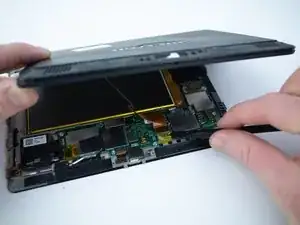

  5. v4AJDtcKpWR6vEyJ

    • Use the flat end of a spudger to pry up and disconnect the rear panel press-fit connector from the motherboard.

    So I don’t remove the MLB?

    pckeeler7 -

    When re assembling the press fit connector will not stay in place when trying the shut the case, it seems too short.

    Is there a nack or trick to doing this please?

    Carl Purser -

    • There may be a glue strip between the battery and the outside case. Gently pry the case open and use the flat end of a spudger to separate the glue strip.

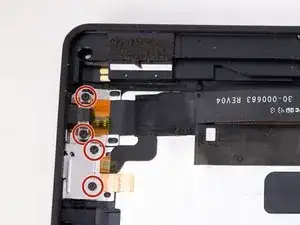

  7. aUmsCWMQ6MOOF1CZ

    • Remove the four 2.3mm T5 Torx screws from the micro USB port and power button assembly.

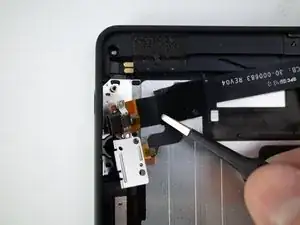

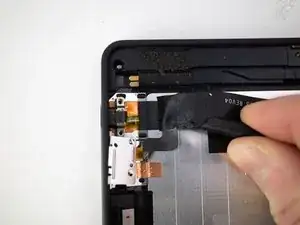

  8. OMyHCpp1YOFfcSkJ
    OMyHCpp1YOFfcSkJ
    mwSFCIQnIo3FfXbn

    • Pry up the ribbon cable from the rear panel with the flat end of a spudger.

    • Remove the micro USB port and power button ribbon cable.

  9. JPWNjLflLMC2DpdS

    • Remove the power button from the rear panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
