Kindle Paperwhite 1. Generation Hauptplatine austauschen

Geschrieben von: Isabelle Burgess

Kommentare: 16

Kindle Paperwhite 1. Generation Hauptplatine austauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

20 - 35 Minuten

Einleitung

Diese Anleitung zeigt dir, wie du die Hauptplatine austauschen kannst.

Werkzeuge

Schritt 1

Hebele die Blende mit einem Spudger oder einem Plastiköffnungswerkzeug vorsichtig vom Bildschirm ab. Am einfachsten beginnst du in einer Ecke und lässt das Werkzeug um den Rand herum laufen.
Setze das Werkzeug nicht zu tief ein. Du könntest sonst den Bildschirm beschädigen.

I found it easier to start this step off with one of the Opening Picks found in the iOpener pack.

NathanF - 27/12/17

The glue on bezel started to peel the sticky back protective layer off the screen for me - managed to smooth it back down, although now have an unsightly crease. I would try to hold the screen down when you pull the bezel off to stop damaging the screen.

Callum Rogers -

This step is most time consuming. Take you time and try not to scratch the bezel :)

Oleksii -

Couldn't get the plastic spudger under the edge of the bezel. A right-angle X-Acto blade was a satisfactory tool here.

dbrick -

The glue was VERY difficult...I used a trick, from taking apart phones, and used a hair drier to loosen up the glue...worked like a charm.

billkaris - 09/08/22

Schritt 2

Entferne elf 3,0 mm Kreuzschlitzschrauben um den Mittelrahmen.
Oben am Bildschirm ist eine der Schrauben durch einen schwarzen Klebestreifen verdeckt.

On 3G version you will not have the top middle screw.

BJones - 21/05/16

Hello, the original battery is 1420m Ah and 3.7VDC, but the buttery you offer to sell is 1600mAh, is it right? there is no problem with different mAh? mi kindle is the amazon kindle 1est generation

Paula Ponce de Leon - 09/11/20

Schritt 3

Hebe den Mittelrahmen aus dem Gehäuse.
Wenn der Mittelrahmen festhängt, dann schiebe ihn erst nach links und hebe ihn dann hoch.

There are clips in the bottom of the case helping hold the midframe in. Lift the top of the midframe up enough to clear the black back piece and then slide up and out.

BJones - 21/05/16

Schritt 4

Drehe den Mittelrahmen herum und du siehst den Akku.
Entferne drei 3,0 mm Kreuzschlitzschrauben, welche den Akku am Mittelrahmen befestigen.

Schritt 5

Hebe den Akku zuerst vorsichtig unten hoch und schiebe ihn dann aus dem Mittelrahmen heraus.

Thanks for providing this guide, I would have been lost without it. My old kindle, however, had very stiff and hard rubber/plastic. There was no way I could have slid the glass to the side or gotten the plastic spud under the edge of the glass or the plastic.

What I did was to remove a piece of the plastic next to the glass , about 1/8” square, then insert a putty knife in between the two sides towards the edges. It all popped apart without breaking anything. Perhaps I could have done this without cutting out the little piece.

Joseph L Woollett - 07/02/21

Thank you for this very user friendly guide.My kindle is now working as new.The screws are small and fiddly and the correct tools are essential. I took roughly about 45 minutes from start to finish and the most difficult part was taking the casing apart without damaging the screen .. A 5 star service.

jonesmrse -

Thanks for the useful and practical guide. Five stars.

dbrick -

The bezel sits on a film meant to protect the screen. When lifting the bezel, it is a good idea to slightly push on the screen with cardboard or something elese, to make sure the screen film stays on the screen as you lift the bezel.

tropdetremblay -

Schritt 6

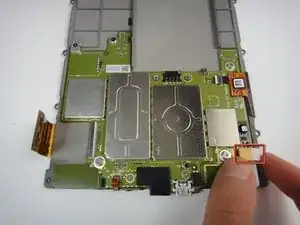

Das Gehäuse und der Akku sind jetzt vom Mittelrahmen entfernt. Beginne nun alle Kabel von der Hauptplatine zu lösen.

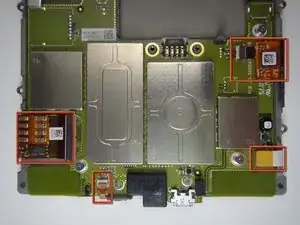

Lege den Mittelrahmen so, dass die Rückseite oben ist. Fange mit den Kabeln in der linken unteren Ecke an.

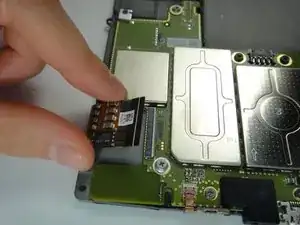

Hebe den weißen Kabelbefestiger mit einem Spudger hoch und schiebe das Flachbandkabel heraus.

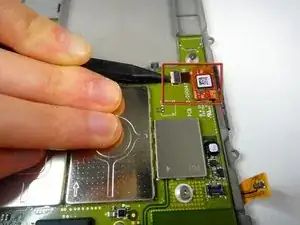

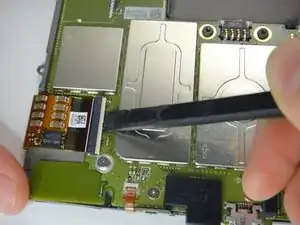

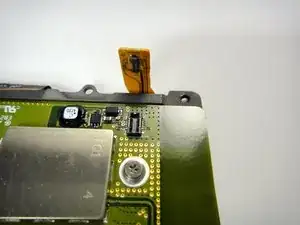

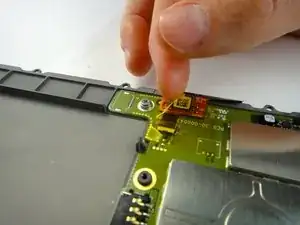

Fahre gegen den Uhrzeigersinn fort und wiederhole für die nächsten Kabel. Die kleinen Kabel ganz haben haben keinen Kabelbefestiger, ziehe sie nur sorgfältig heraus.

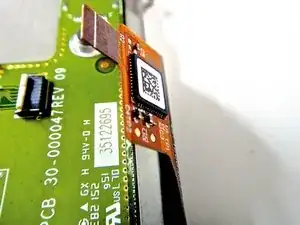

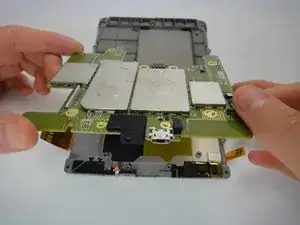

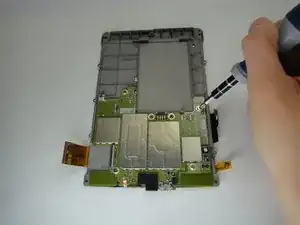

The second connector is not exactly a "repeat". The lock to be lifted is on the cable side, whereas the first connector's lock is away from the cable.

Yishai Sered - 22/03/15

Does anyone know the part number or for that matter where i can purchase the original LED assembly?

Thanks

naz zan - 23/03/15
