Kindle Paperwhite 1. Generation LED Beleuchtung austauschen

Geschrieben von: Anthony Nahal
  • Kommentare: 28
Kindle Paperwhite 1. Generation LED Beleuchtung austauschen

Schwierigkeitsgrad

Mittel

Schritte

13

Zeitaufwand

Keine Schätzung

Einleitung

Kannst du nicht mehr im Dunkeln lesen? Hier wird dir gezeigt, wie du eine ungleichmäßige oder stellenweise dunkle LED Beleuchtung austauschen kannst.

  1. l6YfE2jZFZPgjnbT
    l6YfE2jZFZPgjnbT
    v232H5bUQRNS4I1A

    • Hebele die Blende mit einem Spudger oder einem Plastiköffnungswerkzeug vorsichtig vom Bildschirm ab. Am einfachsten beginnst du in einer Ecke und lässt das Werkzeug um den Rand herum laufen.

    • Setze das Werkzeug nicht zu tief ein. Du könntest sonst den Bildschirm beschädigen.

    I found it easier to start this step off with one of the Opening Picks found in the iOpener pack.

    NathanF -

    The glue on bezel started to peel the sticky back protective layer off the screen for me - managed to smooth it back down, although now have an unsightly crease. I would try to hold the screen down when you pull the bezel off to stop damaging the screen.

    Callum Rogers -

    This step is most time consuming. Take you time and try not to scratch the bezel :)

    Oleksii -

    Couldn't get the plastic spudger under the edge of the bezel. A right-angle X-Acto blade was a satisfactory tool here.

    dbrick -

    The glue was VERY difficult...I used a trick, from taking apart phones, and used a hair drier to loosen up the glue...worked like a charm.

    billkaris -

  2. eehmSQ1GQCtSUWAM
    eehmSQ1GQCtSUWAM
    mSkG2naoP2YZttuh
    BTFwBysYHHKV33Y5

    • Entferne elf 3,0 mm Kreuzschlitzschrauben um den Mittelrahmen.

    • Oben am Bildschirm ist eine der Schrauben durch einen schwarzen Klebestreifen verdeckt.

    On 3G version you will not have the top middle screw.

    BJones -

    Hello, the original battery is 1420m Ah and 3.7VDC, but the buttery you offer to sell is 1600mAh, is it right? there is no problem with different mAh? mi kindle is the amazon kindle 1est generation

    Paula Ponce de Leon -

  3. aGfN4NevUPtVveNb

    • Hebe den Mittelrahmen aus dem Gehäuse.

    • Wenn der Mittelrahmen festhängt, dann schiebe ihn erst nach links und hebe ihn dann hoch.

    There are clips in the bottom of the case helping hold the midframe in. Lift the top of the midframe up enough to clear the black back piece and then slide up and out.

    BJones -

  4. OlqJjhiOD5YDSuGJ
    OlqJjhiOD5YDSuGJ
    RjSDqWAwMMMiPxCI

    • Drehe den Mittelrahmen herum und du siehst den Akku.

    • Entferne drei 3,0 mm Kreuzschlitzschrauben, welche den Akku am Mittelrahmen befestigen.

  5. aiaJ3CmXFPTPslVs

    • Hebe den Akku zuerst vorsichtig unten hoch und schiebe ihn dann aus dem Mittelrahmen heraus.

    Thanks for providing this guide, I would have been lost without it. My old kindle, however, had very stiff and hard rubber/plastic. There was no way I could have slid the glass to the side or gotten the plastic spud under the edge of the glass or the plastic.

    What I did was to remove a piece of the plastic next to the glass , about 1/8” square, then insert a putty knife in between the two sides towards the edges. It all popped apart without breaking anything. Perhaps I could have done this without cutting out the little piece.

    Joseph L Woollett -

    Thank you for this very user friendly guide.My kindle is now working as new.The screws are small and fiddly and the correct tools are essential. I took roughly about 45 minutes from start to finish and the most difficult part was taking the casing apart without damaging the screen .. A 5 star service.

    jonesmrse -

    Thanks for the useful and practical guide. Five stars.

    dbrick -

    The bezel sits on a film meant to protect the screen. When lifting the bezel, it is a good idea to slightly push on the screen with cardboard or something elese, to make sure the screen film stays on the screen as you lift the bezel.

    tropdetremblay -

  6. 3YRxr33SCctdYQjo
    3YRxr33SCctdYQjo
    dR12MFGMehODUZJn
    dgTCoHVgtbJUssxY

    • Das Gehäuse und der Akku sind jetzt vom Mittelrahmen entfernt. Beginne nun alle Kabel von der Hauptplatine zu lösen.

    • Lege den Mittelrahmen so, dass die Rückseite oben ist. Fange mit den Kabeln in der linken unteren Ecke an.

    • Hebe den weißen Kabelbefestiger mit einem Spudger hoch und schiebe das Flachbandkabel heraus.

    • Fahre gegen den Uhrzeigersinn fort und wiederhole für die nächsten Kabel. Die kleinen Kabel ganz haben haben keinen Kabelbefestiger, ziehe sie nur sorgfältig heraus.

    The second connector is not exactly a "repeat". The lock to be lifted is on the cable side, whereas the first connector's lock is away from the cable.

    Yishai Sered -

    Does anyone know the part number or for that matter where i can purchase the original LED assembly?

    Thanks

    naz zan -

  7. nXYvhidJFoKAfL4y
    nXYvhidJFoKAfL4y
    dFSsAFBPhmJUZnDD

    • Löse das weiße Flachbandkabel, indem du den gelben Plastikstecker vorsichtig hochhebst.

  8. SelbPVNBp1ldSMYf
    SelbPVNBp1ldSMYf
    F6cir5pLskggGIgC
    xIOdyYrBjmBoWSL3

    • Entferne das gelbe Antistatikband vom Stecker am Flachbandkabel zum Display.

    • Hebe den Kabelbefestiger mit einem Spudger hoch und löse das Kabel.

  9. cn3o1wKFJ3QbP1qs
    cn3o1wKFJ3QbP1qs
    ZTLXfBXDxgwcaZFa

    • Entferne folgende sieben 3,0 mm Kreuzschlitzschrauben:

    • Drei silberfarbene Schrauben mit silberfarbenen Unterlegscheiben.

    • Zwei silberfarbene Schrauben ohne Unterlegscheiben.

    • Eine schwarze Schraube mit goldfarbener Unterlegscheibe.

    • Eine schwarze Schraube mit einer quadratischen Unterlegscheibe.

  10. jvrO1bUGHlDqMGK2

    • Entferne die Hauptplatine.

  11. IDOunBIwUNQcEFpK
    IDOunBIwUNQcEFpK
    xHZ4QW1yCfg4lZfx

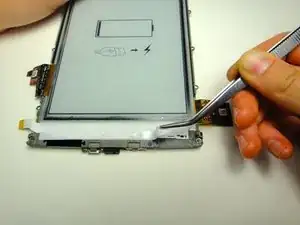

    • Entferne mit einer Pinzette den weißen Klebestreifen über der LED Beleuchtung.

  12. u2a1u5EoSO1v2ESX
    u2a1u5EoSO1v2ESX
    sRNsFfYEOdLWfOvI

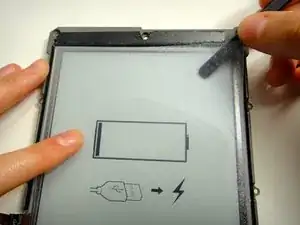

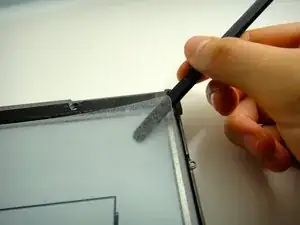

    • Entferne vorsichtig mit einem Spudger die Plastikschutzfolie über dem Display.

    • Diese Schutzfolie ist mit einer dicken Schicht Klebstoff befestigt. Sei geduldig und löse sie langsam ab, vermeide es dabei, sie zu biegen oder zu brechen.

    Does anyone know what kind of adhesive is used between the waveguide / dffuser layer, and the display layers under it? It’s definitely not a hard-cured epoxy, but almost a gel — probably silicone — and probably matched to the refractive index of the layers.

    Or, did anyone succeed in re-using the original stuff, and if so did you have air pockets or artifacts because of it?

    Dan Collura -

  13. G2aiT6y4VnOuBMsj

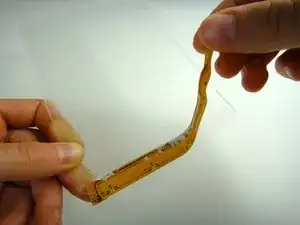

    • Wenn die äußere Schutzfolie vom Kindle entfernt ist, kannst du die LED Beleuchtung vorsichtig mit den Fingern ablösen.

    Thanks for the guide but the problem is finding a replacement for the led lights. Have you found any seller?

    FFF -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
