Einleitung

Sometimes our vacuums seem to leave messes instead of cleaning them up. This can happen due to the vacuum belt being worn down or breaking apart. With being such an easy fix, some people fail to realize this and buy a brand new vacuum instead of taking a closer look. Here, we will be slowing it down for a second to help just about anyone learn to change a belt and hopefully save some money the next time their vacuum stops doing its job. This guide will show you how to replace the belt in a Kirby G5 vacuum cleaner. Be sure to get the correct replacement belt for your vacuum.

  1. 6Ld1L2BoHmApuOxP

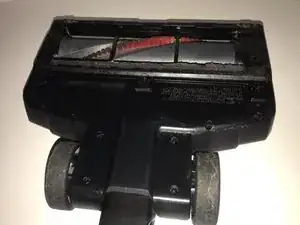

    • Place the vacuum at an angle most comfortable and easy to access with the bottom facing upwards.

  2. LQPF4YCUyjtj6jNu
    LQPF4YCUyjtj6jNu
    QpSXHOCR6MRJMApO

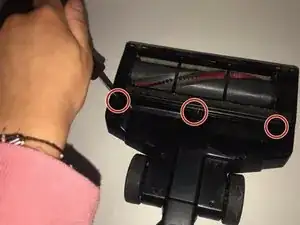

    • Remove the three screws holding the base plate to the body of the vacuum using a flat head screwdriver.

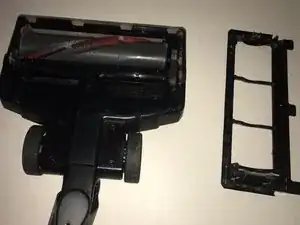

    • Place the plate to the side.

  3. bkgqdJnCHfWYF1cY

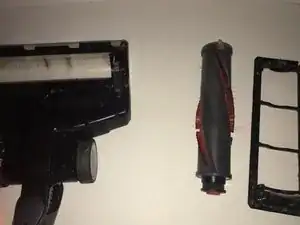

    • Simply slide the roller out of the vacuum.

    • The belt is attached to the roller on either side.

  4. Ytsv43sJUufokIro
    Ytsv43sJUufokIro
    ALqi5so5Hja1tdaN

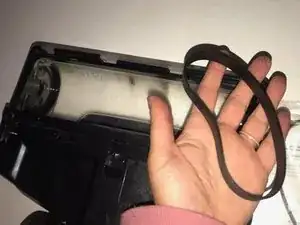

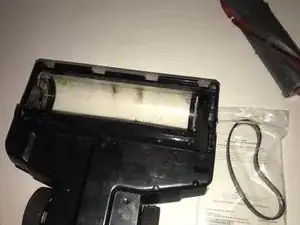

    • Slide the vacuum belt out from beneath the wheel holding it in place.

  5. YUOQtembStVLWpPo

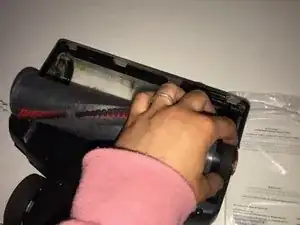

    • Insert your new belt and pop the roller back into place.

  6. CWewAtOuf2CW36VD
    CWewAtOuf2CW36VD
    ELtay2tGjBTK5f2f

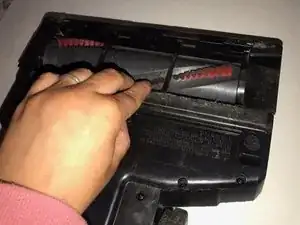

    • Secure the plate once again until it clicks into the made grooves.

    • Secure the three screws until tightened.

Abschluss

Make sure to test the vacuum and securely tighten all screws. With that, you’re good to go!
