Kitchen Drawer Rear Mounts Replacement

Geschrieben von: Valeria Covarrubias
  • Kommentare: 1
Kitchen Drawer Rear Mounts Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

35 Minuten

Einleitung

In this guide, I will demonstrate how to replace their broken kitchen drawer mounts. This issue can be very common if drawers were not built with quality material when building the house. To get the material needed you can take in your broken track or mount into a hardware store and find the correct size. This is a quick and easy repair that will take little time and basic knowledge of repairs/tools.

  1. LVUt4rwwVMQdpAMZ
    LVUt4rwwVMQdpAMZ
    fBqeIja1C2skVDYW

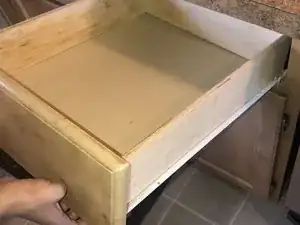

    • Remove all utensils from the drawer and remove the drawer from the slot.

  2. D2xiU11unjFjgnmx
    D2xiU11unjFjgnmx
    cTqyMyGHRsi5eCVr

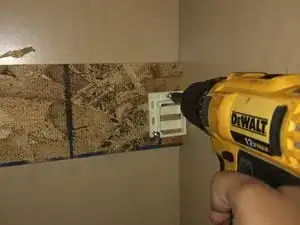

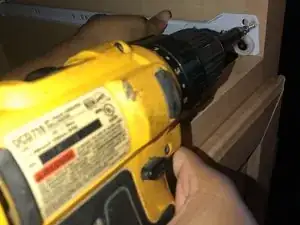

    • Start removing the mounts and tracks by unscrewing them with your drill or screwdriver.

    • Your replacement tracks or mounts will come with new screws.

  3. 6fJlq1P4LJufkRWm

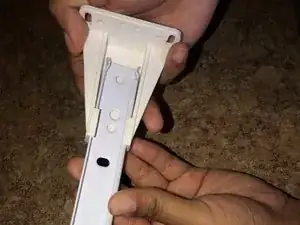

    • Once you have all your new material, insert the mounts onto your track.

  4. y6YEJL4VEsXqCGeD

    • Take the track with the new mount attached and screw it into the existing hole using the new screws that came in the packaging.

  5. sEGHYiDFQmSRlwgc
    sEGHYiDFQmSRlwgc
    tvvUYoboHQJL61Nd

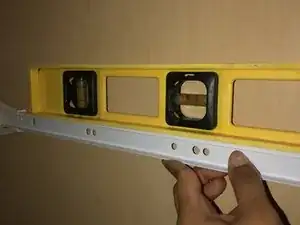

    • After the track has one screw drilled, use a level to make sure your track is straight.

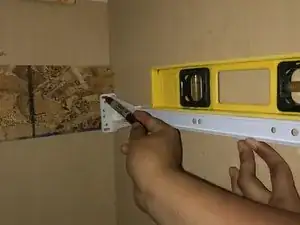

    • Depending on your new mounts, you may or may not need to drill new holes for the screws. If you do need to drill new holes mark the holes on the mount with a pencil or marker.

  6. ahvMCXUj3LYPilNj

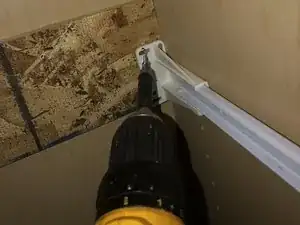

    • Drill the screws in either the existing holes or marked spots to hold the mount in place.

  7. 5fUBtCBTvkREwcbo

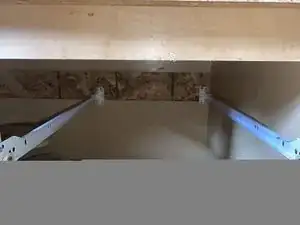

    • Repeat these steps on the other side if needed.

    How far do I measure the mounts apart from each other? Measure the width of the drawer backboard or from track wheel end to track wheel end?

    chris.hall.925 -

  8. IwkietATHpexNdY6

    • Place your drawer back into its place and you are now done with your repair!

Abschluss

Now that your repair is done make sure your drawer is sliding smoothly if not you will need to remove it and clean the tracks. Another thing to look for is if the tracks are perfectly aligned if not you can go back in and fix them by following the same steps again.
