Einleitung

It's normal for the pieces of your sink to degrade over time, and sometimes these degradations cause leaks beneath your sink. A kitchen sink basket is a typical component that needs to be replaced due to cracks, leaks, or wear. If you have leaks under your sink that originate from the top part of the drain pipe that connects to the sink basin, you may need to replace your sink’s basket strainer, as this is the interface between the drain and sink. This tutorial will guide you on how to replace your old basket strainer with a new one.

  1. XRc5THmdGFJORdLA

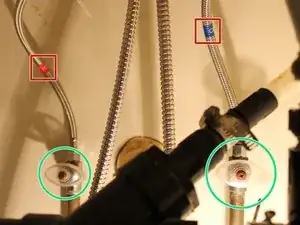

    • Shut off the hot and cold water supply valves under the sink.

    • Turn the handles clockwise and make sure the water is off before moving on.

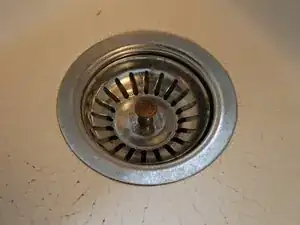

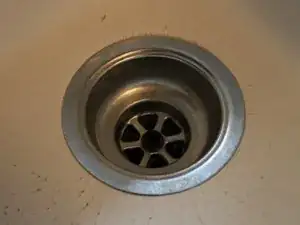

  2. icXrAKmcHScTaBut
    icXrAKmcHScTaBut
    RawblkJuhNOsodbP
    • Remove the stopper from the basket strainer by lifting it out.

  3. BAcwI3Ye5IyMC3tH
    BAcwI3Ye5IyMC3tH
    mqEJfLRfjH6yNvcO

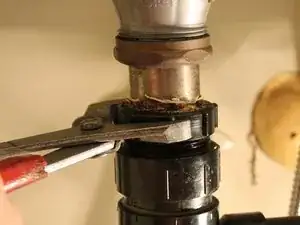

    • Loosen the trap adapter nut under the sink.

    • Use the pliers and turn counterclockwise to loosen the nut.

  4. sWPAQsX2m6X5offp
    sWPAQsX2m6X5offp
    balL6BBOIPCRLiQy

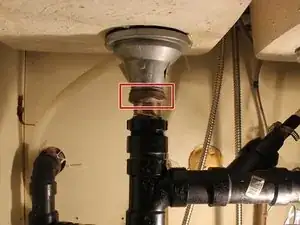

    • Loosen the tailpiece nut under the basket strainer.

    • Use the pliers and turn counterclockwise to loosen the nut.

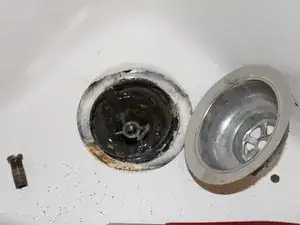

  5. Glw1vjRHTC4sj2HC
    Glw1vjRHTC4sj2HC
    SIPgRZcnA3l1mAsv

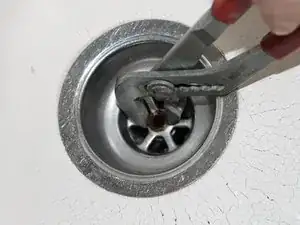

    • Loosen the nut of the basket strainer.

    • Use the pliers and turn counterclockwise to loosen the nut.

  6. pgimRXEp5nWSkUSN

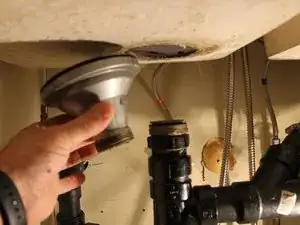

    • Remove the basket strainer from the sink by lifting it out.

  7. NCAGT5gKVEUSy36k
    • Remove the tailpiece from the trap adaptor by lifting it out.

    • Keep the trap adapter nut and the nylon slip washer aside.

    • The trap adapter nut and nylon slip washer are shown in the image. The nylon slip is within the trap adaptor.

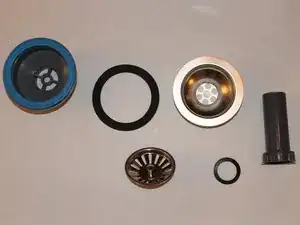

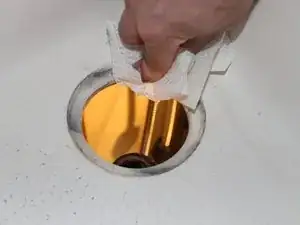

  8. NdQyRgsrpAvKicNd
    NdQyRgsrpAvKicNd
    NrnUcF1hJ6OKWSQc
    • Clean the sink opening and install a new basket strainer and the tailpiece.

    • Image 2 shows all the pieces that should be included in your new kit.

  9. WULUilIRTnCof3pT
    • Slide the old trap adaptor nut and nylon slip washer over the tailpiece.

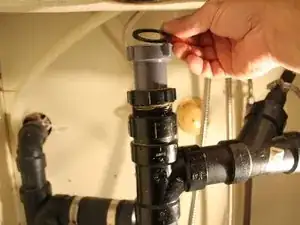

  10. 1QfeWFlZqeuVyqEr
    • Install the tailpiece into the trap adaptor with the tailpiece washer inserted on top.

  11. Ap4HnaUBBtR6jXnQ

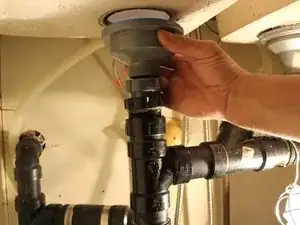

    • Place the basket strainer on top of the tailpiece.

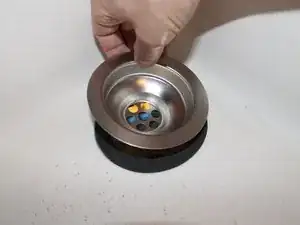

  12. Dv4DNaE2XW5x3dxi
    Dv4DNaE2XW5x3dxi
    RxD2DCpOiYyeVXkd

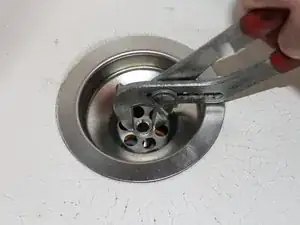

    • Align the upper strainer to the basket under the sink and tighten it with the nut supplied.

    • Use the pliers and turn clockwise to tighten the nut.

  13. HVNmROPHMUISeNVs
    • Tighten the tailpiece nut to the basket.

    • Use the pliers and turn clockwise to tighten the nut.

  14. vj6UylnBFLoHs2t5

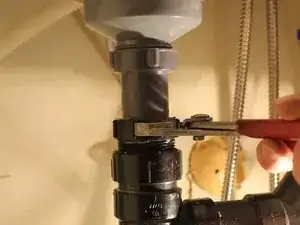

    • Tighten the trap adaptor nut.

    • Use the pliers and turn clockwise to tighten the nut.

  15. XE5veabd5HtL12gw
    • Insert the strainer and turn the water back on to test for any leaks.
