Einleitung

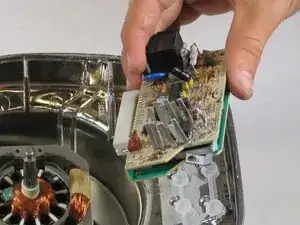

The circuit board contains the hardware of the blender and instructs the rest of the blender what to do.
Werkzeuge
-
-
Remove the glass container and place the blender upside down on a solid surface.
-
Remove the four rubber feet using the needle nose pliers.
-
Remove the four #7.5 Phillips 25mm screws that were located underneath the rubber feet using the Phillips #2 screwdriver.
-
-
-

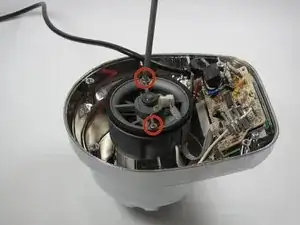

Remove the two #6 Hex 82mm screws using the Phillips #2 screwdriver.
-

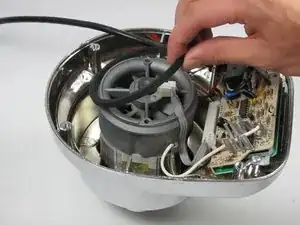

Remove the rubber O-ring by lifting it up.
-
-
-

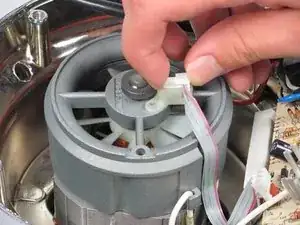

Remove the ribbon cable from the chassis by lifting it up.
-
Remove the other end of the ribbon cable from the circuit board by lifting it up.
-
-
-

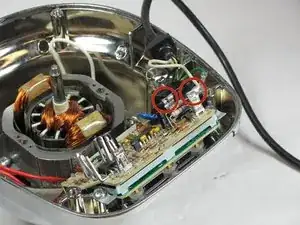

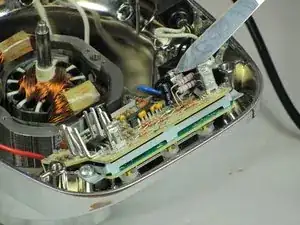

Slide the knife into the metal loop holding the insulation before the white copper wire, and wiggle it back and forth until it loosens.
-
Pull the wire out from the metal loop that you loosened.
-
Repeat this process with the black copper wire.
-
-
-

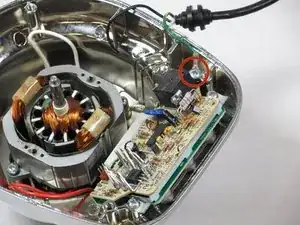

Using the Phillips #2 screwdriver, remove the #8 Phillips 6mm screw to which the green wire is attached.
-
To reassemble your device, follow these instructions in reverse order.
2 Kommentare
Hello, Thanks for video, very good! I see on my blender that main capacitor (blue one) has burned out. Could you tell me the value of it? is it on 110v? many thanks!
Hola, Muy bueno gracias. me voló el capacitor principal (azul grande) me podrías indicar de cuanto es? es para 110v? gracias!
I have already founded components that burn when plugged to 220v instead 110v. it was a varistor 14D201K, (circular blue), and also burn a thermal fusible besides (black cillinder) . 3A 250V. hope helps someone. thanks.
