Einleitung
The fan cools down the motor and circuit board when the blender is operating.
Werkzeuge
-
-
Remove the glass container and place the blender upside down on a solid surface.
-
Remove the four rubber feet using the needle nose pliers.
-
Remove the four #7.5 Phillips 25mm screws that were located underneath the rubber feet using the Phillips #2 screwdriver.
-
-
-

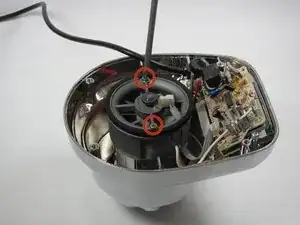

Remove the two #5 Phillips 95 mm machine screws using the Phillips #2 screwdriver.
-

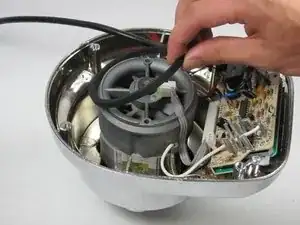

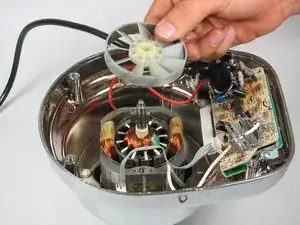

Remove the rubber O-ring by lifting it up.
-

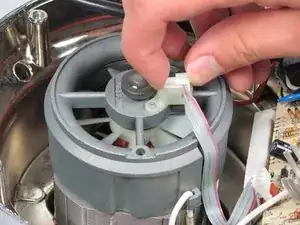

Remove the ribbon cable from the chassis by lifting it up.
-
-
-

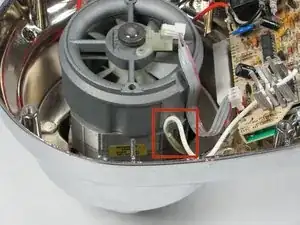

Unhook the white wire that is looped around the peg by pulling it out of the clip.
-
Repeat this process with the red wire on the other side of the chassis.
-

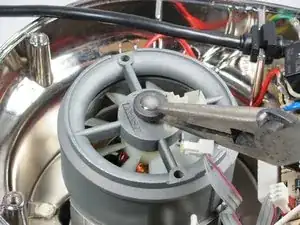

Remove the end cap using the 8" needle nose pliers.
-

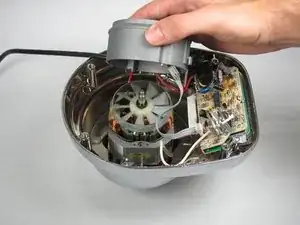

Pull up the fan chassis.
-
To reassemble your device, follow these instructions in reverse order.
