Einleitung
-
-

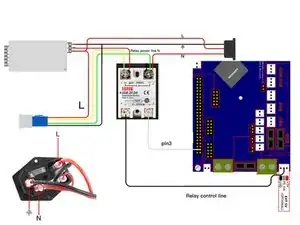

You will be removing the yellow and green wires from terminal 1 and 2 from step 2
-

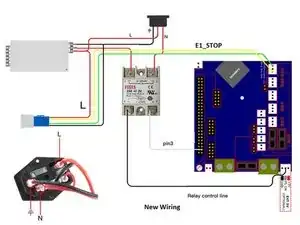

Re-crimp the wires and using a 3 pin connector. Connect it to E1_STOP on the Duet
-
Add the commands for "output_pin psupower" "gcode_macro M80" "gcode_macro M81" and "gcode_button power_on" to your printer.cfg
-
I've uploaded my config to my github
-
