Kobo Arc K107 Camera Replacement

Geschrieben von: Ray Starpoli
  • Kommentare: 0
Kobo Arc K107 Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to replace the camera for the Kobo Arc K107. It is moderately hard as it is required to remove the motherboard from the device.

  1. TEsR2LKhNFRFIXUU

    • Peel the back cover off of the Kobo Arc by finding the lip in the cover and pulling back on it.

  2. ipKExFepkd3BhWmV

    • Remove the screws from the midframe.

  3. lYTjhEiRNsrUwNML

    • Use a nylon spudger to pry up the battery from the device.

    • It will give some resistance as it is glued down.

    • Always use plastic or nylon prying tools around the battery. Metal tools can puncture a battery, potentially causing a fire.

  4. LUXbiiDRxYVtqURZ

    • Unplug the battery connector from the rest of the tablet.

    • Remove the battery from the tablet.

  5. nwMewdKJqZimGNUT

    • Remove the motherboard from the outer case.

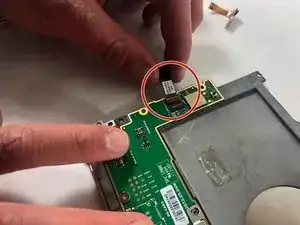

  6. KAK1WSc2VjQ54NNX

    • Detach the old camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
