Kobo Arc K107 Screen Replacement

Geschrieben von: Stephen Pehl
  • Kommentare: 0
Kobo Arc K107 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Note that this is a teardown, so reversing this process is either very diffiuclt or impossible. Only proceed if you have no desire to reasemble the device afterwards.

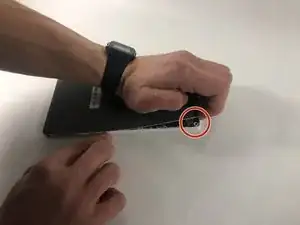

  1. TEsR2LKhNFRFIXUU

    • Peel the back cover off of the Kobo Arc by finding the lip in the cover and pulling back on it.

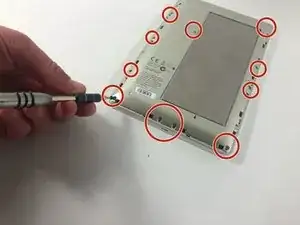

  2. ipKExFepkd3BhWmV

    • Remove the screws from the midframe.

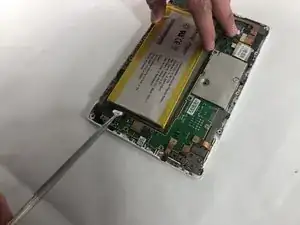

  3. lYTjhEiRNsrUwNML

    • Use a nylon spudger to pry up the battery from the device.

    • It will give some resistance as it is glued down.

    • Always use plastic or nylon prying tools around the battery. Metal tools can puncture a battery, potentially causing a fire.

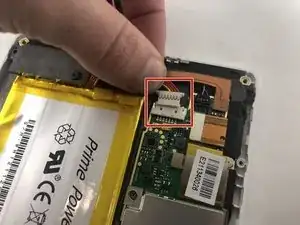

  4. LUXbiiDRxYVtqURZ

    • Unplug the battery connector from the rest of the tablet.

    • Remove the battery from the tablet.

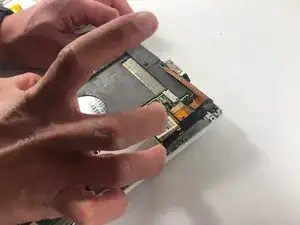

  5. XKbyQPPSOZOSYrZs
    XKbyQPPSOZOSYrZs
    PL6RaJ6je1yR11LC

    • Remove the screws that are attached to the grey plastic layer.

    • Remove the gray plastic layer.

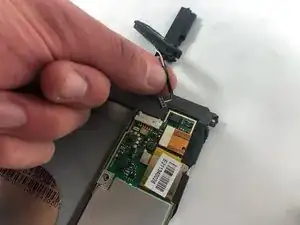

  6. QudYkKgKVrQdcJky

    • Disconnect the speakers from the tablet.

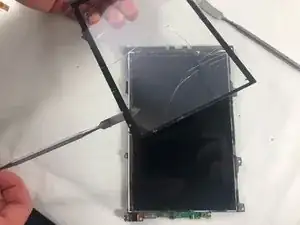

  7. oWTGDP3FJcOUWXOs
    oWTGDP3FJcOUWXOs
    D2b2p4IUASdiLVOW

    • Wedge a nylon spudger between the screen and the tablet.

    • Slide the spudger around the edges of the screen and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
