Kobo Mini Disassembly

Geschrieben von: Gabriel Bédard
  • Kommentare: 9
Kobo Mini Disassembly

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 45 Minuten

Einleitung

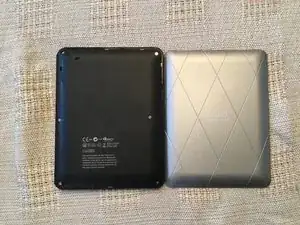

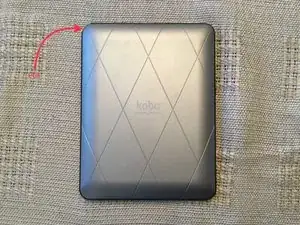

  1. EDYDsbf4RiWeY2vI
    EDYDsbf4RiWeY2vI
    PEZScbRjK66kIbfl

    • Pull on the corner to remove the cover.

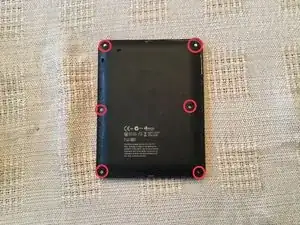

  2. tEejMLBhhXsEF2ej

    • Remove the six screws.

    • Remove the back of the device.

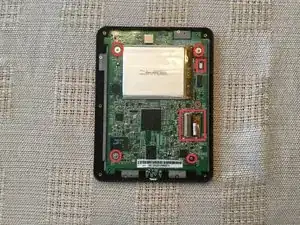

  3. BfZoOcIrjFqoZWyf

    • Remove the four screws from the mother board.

    • Remove the screen connector and the battery connector.

    • Remove the micro SD card.

    • Remove the motherboard from the chassis.

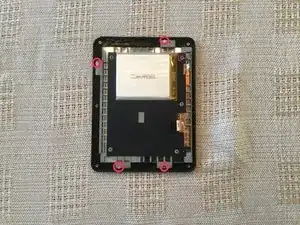

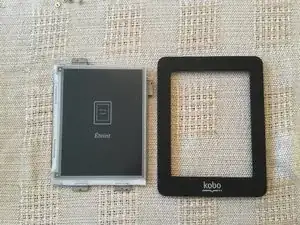

  4. F5G2bGLsTZQVH3Dj
    F5G2bGLsTZQVH3Dj
    MfgQhCQAhKAN4Z2k

    • Remove the four screws from the screen frame.

    • Remove the screen

  5. gYbmdqKKZ6VpnWMN

    • And we finally finished.

Tinte & Feder

Gabriel Bédard

Mitglied seit: 07/06/18

201 Reputation

9 Kommentare

Just a quick note, I noticed that the SD card in the teardown is a 4gb one. The Kobo Mini has only 2gb of storage. There's just under 2gb of unpartitioned space. You can use a partition manager to extend out the last partition to fill the card, and get close to 4gb of space.

There's a guide over on Mobile Read: https://www.mobileread.com/forums/showth...

Stephanie Raccoon -

Yes I think

Gabriel Bédard -

Thanks for the teardown! See https://www.mobileread.com/forums/showth... and https://wiki.mobileread.com/wiki/Kobo_Mi... for more disassembly advice and information about the components used.

I would be concerned about the reliability of the 4GB micro SD cards when extended to use the full unpartitioned space. While I could imagine a situation where 4GB cards were used due to unavailability of 2GB cards, there doesn’t seem to be a good reason to only format them to 2GB unless they were only guaranteed to reliably hold 2GB of data. In other words, I wonder if they were originally 4GB cards that failed some QA test and were only rated for use as 2GB capacity cards.

David Boddie -

How do you remove the battery connector? Simply pull? Remove the black little things on the sides in some way?

jasonhayden -

Yes you just need to pull it from the motherboard

Gabriel Bédard -

Hi, my kobo mini on/off switch is somehow defect. Is it possible to get a replacement for the old one or is it possible to repair it? Has anyone the same problem here?

Kind regards

Ariane

Ariane Zimmer -

Hi there, I had an issue detaching the screen case from the screen chassis at Step 4. Mine appeared to be glued together. I was afraid to pry them apart or apply more pressure. Did you have the same issue please? Thanks!

nerm -

Hi Nerm (maybe not for you given the time since your post, but I was hunting for the same info this mornin’ hope this will help someone)

Yes the plastic front chassis has a strip of adhesive just on the inside edge of the screen. I found a little gentle heat and flexing of the chassis in a corner should give you some room to get a plec or really fine spudger and just gently run down the edges from the front.

latro -

Hi, on mine the screen was glued. No way I could remove it without breaking it. Well it was already broken and I wanted to change it, but if it's the same on all kobo mini I will never be able to use a spare screen from a disused apparel :/

Susan -
