Kodak EasyShare C713 Lens Replacement

Geschrieben von: Taggart Ashby
  • Kommentare: 1
Kodak EasyShare C713 Lens Replacement

Schwierigkeitsgrad

Very difficult

Schritte

16

Zeitaufwand

25 Minuten

Einleitung

This guide will help with replacing the lens of the Kodak EasyShare C713 Camera.

The errors you have been experiencing may have been caused by something as simple as dropping the camera with the lens extended, blocking the lens extension when it was turned on, or the batteries ran out with the lens extended. They also may be due to inner malfunctions in the camera itself. For example, if the lens is not fully extending, something may be wrong with a motor.

During this process, you will need to know how to solder and desolder points on a circuit board.

Make sure the camera is turned off before you begin.

  1. 4uiFYrBiQNCAb4oj

    • Use your finger tip to slide battery cover door away from the center of the camera.

    • The battery door should spring open.

    • If this does not happen, gently open the door lifting from the outer bottom side of the camera.

  2. vGKAywwVpR5UhdMg

    • Remove the old batteries.

  3. evtHFhc3TLQUtn6X
    evtHFhc3TLQUtn6X
    RLHgmVAmsAqvKaUQ
    sWUjwSbYBdoZR6vN

    • Remove the seven screws from the outer case with a Phillips #00.

    • All screws are 4.45mm.

    • There are 2 screws on the port side.

    • There are 2 screws on starboard side.

    • There are 3 screws on the bottom.

  4. CEIriBaQl6KgVvIZ
    CEIriBaQl6KgVvIZ
    S2CCFTLcnCNvbVOm
    mEjCSRxFsNNnSTIg

    • Make sure the battery cap is "up".

    • Pull the outer case off with your hands.

  5. XJp4DZCleUIqtD2q

    • The LCD screen is hinged at the bottom.

    • Put your thumb in the upper right corner of the LCD screen.

    • Pull the LCD screen out of its outer case with your thumb.

  6. ttMvdBqwOAWJAvxG

    • Remove the screw underneath LCD screen with the Phillips #00. The screw measures 4.1mm in length.

  7. KekwqLpuHoREM3U1
    KekwqLpuHoREM3U1
    paVWZQAyCsGMcgMh

    • Desolder the two points.

    • One on the port side.

    • One on the bottom.

  8. YQcWJE1yJUkTloth

    • After desoldering the LCD casing, just use your fingers to carefully remove it.

  9. AvbGiBJruUYyOlYW

    • Flip up the black tab on the bottom of the LCD screen with a fingertip.

  10. WRTutUDuONk2JCUR

    • Remove the LCD ribbon cable from inside the black tab.

  11. lyqwqYuYedt3XNXb

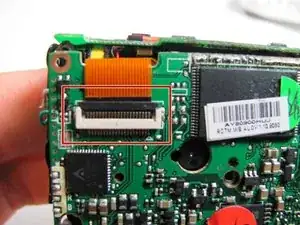

    • Using a fingertip, flip the black tab near the top of the camera.

    • Remove the ribbon connector from inside the black tab.

  12. NR2ap5VHhfLPVASK

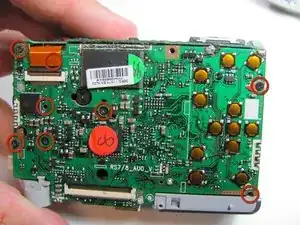

    • Remove the remaining eight 4.1mm screws on the back with the Phillips #00 screwdriver.

  13. VZkOKQM5nI3tC6EM

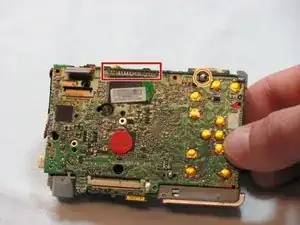

    • Desolder the upper points.

    • There is a series of solder points in a rectangular area in the upper middle of the camera.

    • There is a large solder point in the upper right.

  14. bJQsiYCYTOb1TMlN

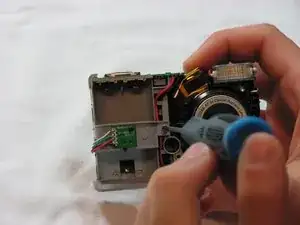

    • Turn the camera over.

    • Remove the silver 2.2mm battery cap screw.

  15. LuY2vUXLJO6l1NGT
    LuY2vUXLJO6l1NGT
    AmYT1UxOKYuEOnIu

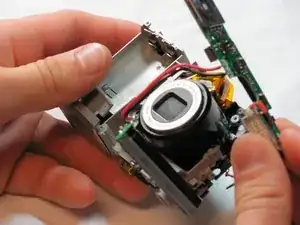

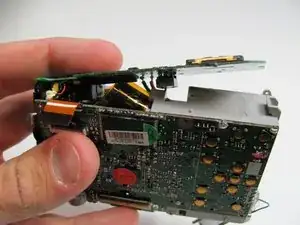

    • Turn the camera over.

    • Pry the capacitor out of its holder on the bottom of the camera with your fingers.

  16. YvWSsXkFMYCY5DDS
    YvWSsXkFMYCY5DDS
    NNRkZYZKFUSPOCPc
    FMpHxXHMyoSGmUUM

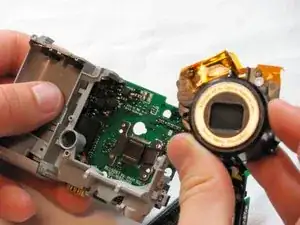

    • Remove the lens assembly with your fingers.

    • You may need to wiggle it back and forth until it comes loose.

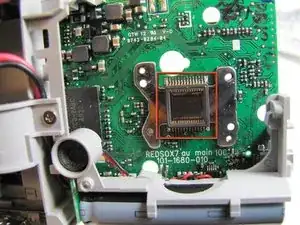

    • Do not touch the marked areas. This will cause the camera to take blurry pictures.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Taggart Ashby

Mitglied seit: 15/04/10

345 Reputation

Ein Kommentar

why didn't you mention to discharge the capacitor, its stored charge is pretty high & dangerous

richard -
