Kodak EasyShare C913 Buttons Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

1 - 2 Minuten

Einleitung

How to remove the buttons.

  1. HTMAhkS4RfXfLBgS
    HTMAhkS4RfXfLBgS
    EuF4iL5paOFigtmt
    GlpgkGRXcwJi2xun

    • Position the camera with the bottom facing up.

    • With your finger, slide the battery cover in the direction of open arrow.

    • The battery cover will spring open, so be careful to lift it up gently.

  2. 6LIqgUDboJnmEo3R
    6LIqgUDboJnmEo3R
    GOMRsP1Z5NljhAbp
    IqRk3srHwcbMoPaY

    • Use a Phillips #00 screwdriver to remove the seven 4.5mm screws.

    • There are 2 on the left

    • There are 2 on the right

    • There are 3 on the bottom

  3. SxXyAH3qX2WtCWhh
    SxXyAH3qX2WtCWhh
    IaStNm4kjUjDwxvo
    2VuA5FPQnlSRtrRp

    • Firmly grasp and pull back casing off.

  4. iZpRq3JNWRoEMtDl
    iZpRq3JNWRoEMtDl
    6oxTXGqoqveNyrgm
    AGgKUOACxCfCXdvc

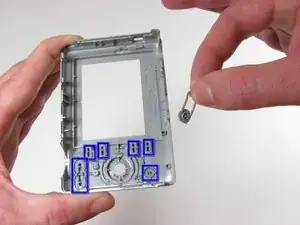

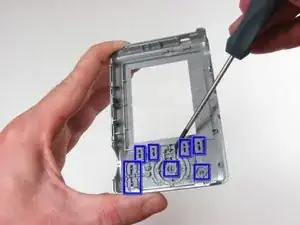

    • Use #00 screwdriver to pry off buttons.

Abschluss

To reassemble your device, follow these instructions in reverse order.
