Einleitung

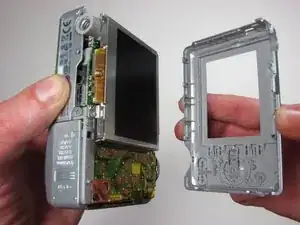

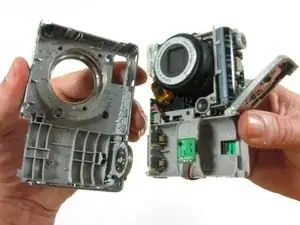

Use this guide to remove and install the front case.
Werkzeuge
-
-
Position the camera with the bottom facing up.
-

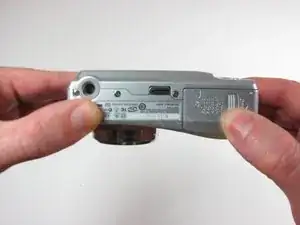

With your finger, slide the battery cover in the direction of open arrow.
-

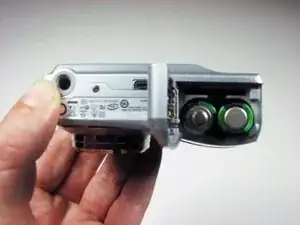

The battery cover will spring open, so be careful to lift it up gently.
-
-
-

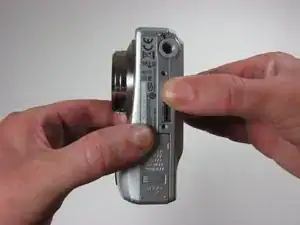

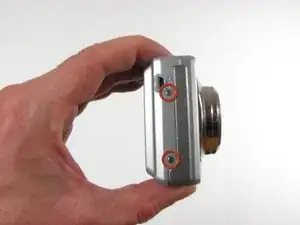

Use a Phillips #00 screwdriver to remove the seven 4.5mm screws.
-

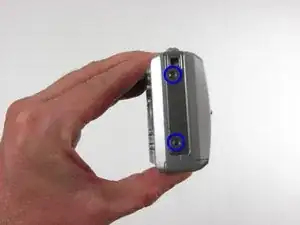

There are 2 on the left
-
There are 2 on the right
-
There are 3 on the bottom
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
