Kodak EasyShare M2008 Battery Door Replacement

Place thumb firmly on battery cover.

Slide thumb right, the cover should follow and pop up.

Place thumb on orange tab and pull back towards screen.

The battery should pop up.

Gently lift battery out.

Remove screws from along outer edge of casing.

There are 6 screws in total.

Gently lift off front and back casing.

Remove screws along side.

Gently peel off side casing.

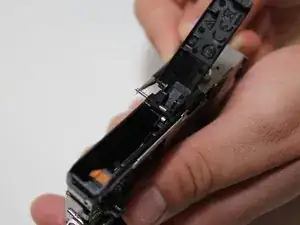

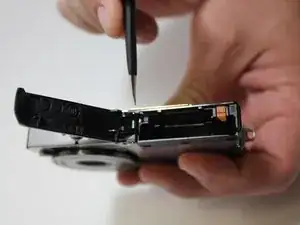

Open the battery door and identify the retaining pin.

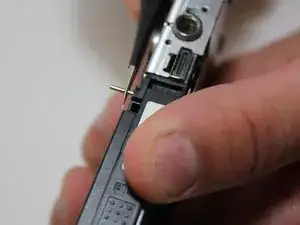

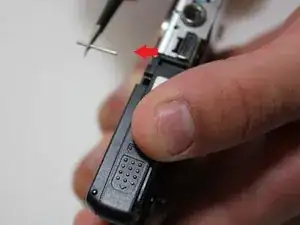

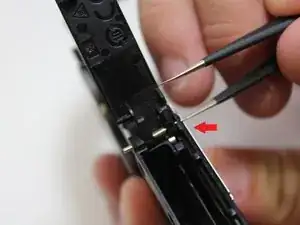

Push retaining pin out with small tweezers.

Once pin is out halfway, close door to ensure no loose parts get lost.

Continue to pull out the remaining length of the pin.

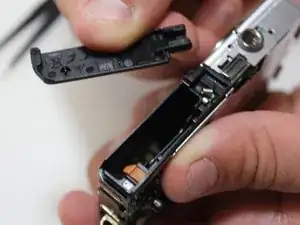

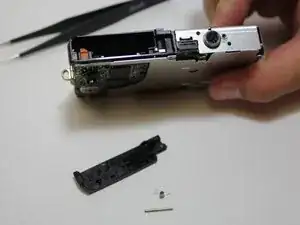

Gently lift off door cover.
