Kodak EasyShare M381 Screen Replacement

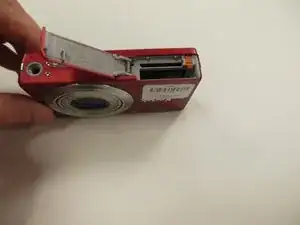

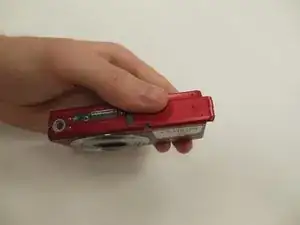

First, press in and slide forward the battery latch as indicated by the arrow.

Press down on battery until you hear a click and release it. Battery should easily slide out.

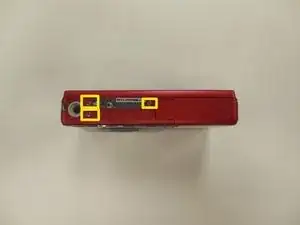

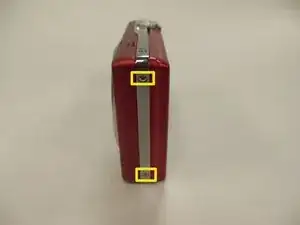

Obtain screwdriver, and remove the 3.85 mm frame screws as highlighted.

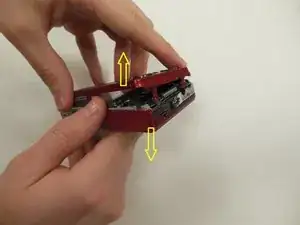

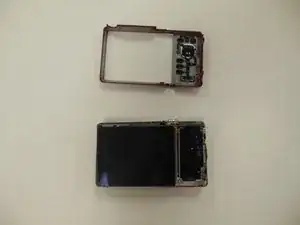

After screws are removed, using both hands, carefully pull the frame apart from the camera as indicated.

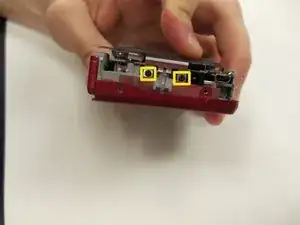

Remove the two 3.85 mm screws on the bottom right of the camera, as indicated.

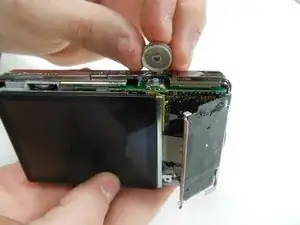

Remove dial button located on top of camera, by gently pulling up.

Starting at one side, carefully work the chrome frame off of the camera itself.

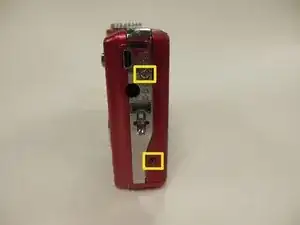

On the right side of the camera, locate and remove the two 3.25 mm screws as highlighted.

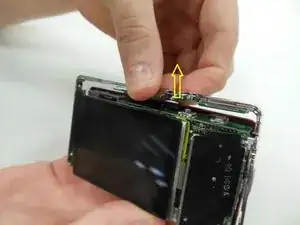

Carefully lift the motherboard panel up, pulling towards the left. Make sure you do not rip the blue ribbon.

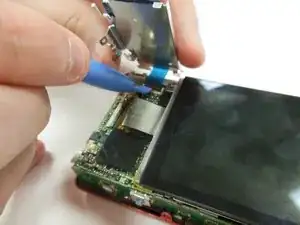

Using a plastic opening tool, gently lift up on the ribbon fastener until it is in an upright position.

Slide panel away from camera.

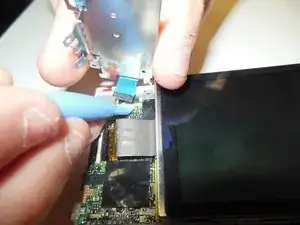

Using a plastic opening tool, gently lift ribbon clamp as indicated to remove the screen ribbon from the motherboard.

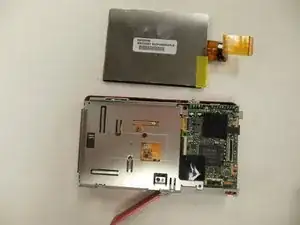

Screen should now be detached. Gently lift it away from the base of the camera.
