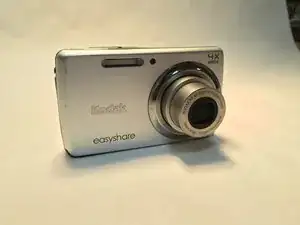

Kodak EasyShare M532 Screen Replacement

Open the battery compartment on the bottom of the camera and remove the battery.

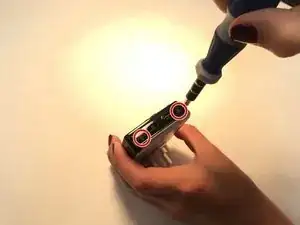

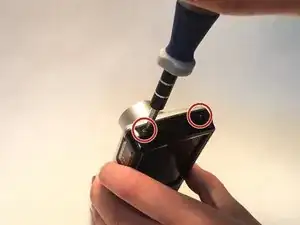

Remove two Phillips screws from each side of the camera (four screws total).

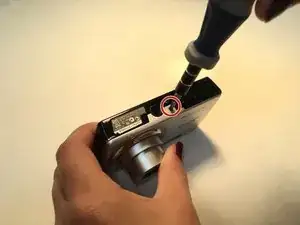

Remove one additional Phillips screw from the bottom of the camera.

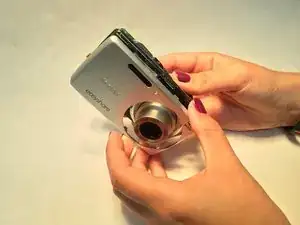

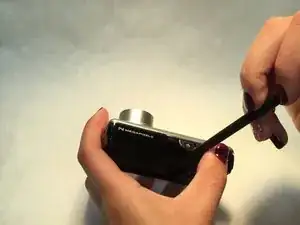

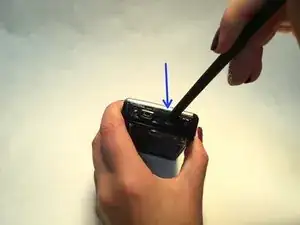

Inserting the prying tool as shown, gently separate the front and back pieces of the camera exterior.

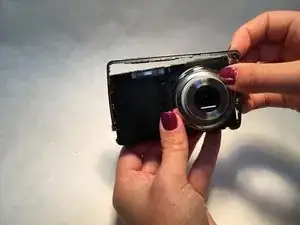

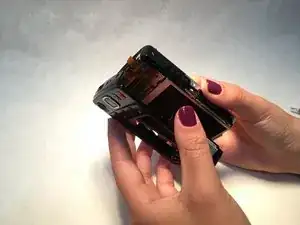

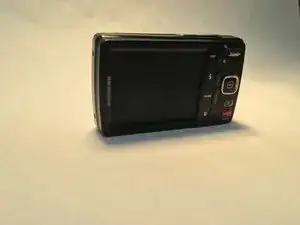

Carefully remove the front and back exterior pieces from the camera body.

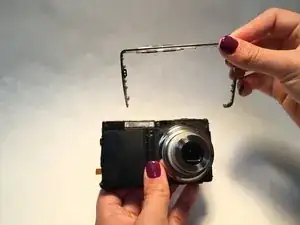

Gently remove the frame with the top buttons.

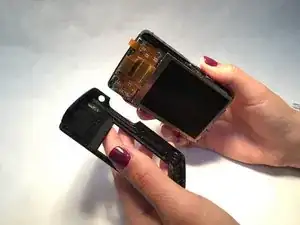

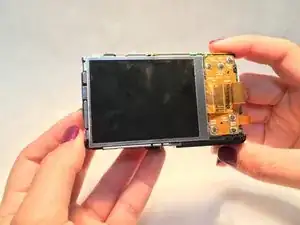

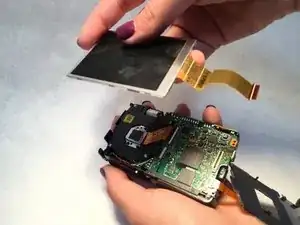

Lift the screen off the body. Note that it is still connected on one side by the orange tape.

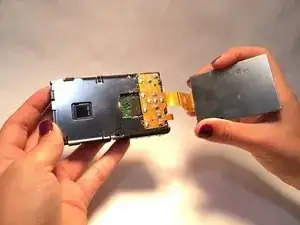

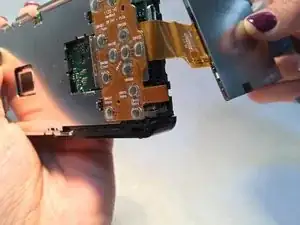

Flip it over gently and let it rest off to the side where the tape is.

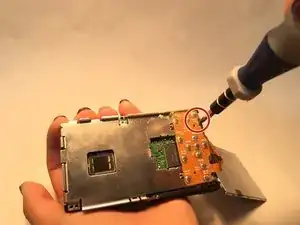

Remove the two Phillips screws. There is one at the top center and one in the bottom left corner.

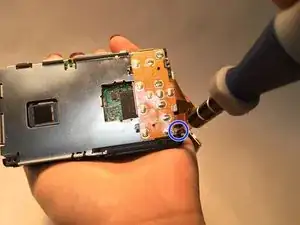

Remove the top Phillips screw from the right side.

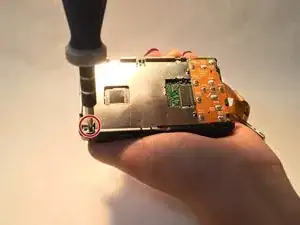

Move the silver tape aside to access and remove the Phillips screw in the bottom corner.

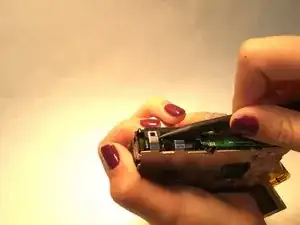

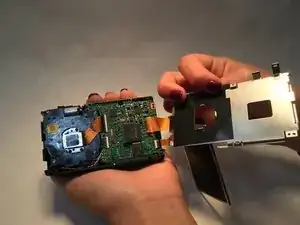

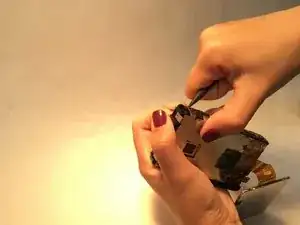

Gently pry up the clip on the top corner to release the metal casing and lift the casing out of the way.

Find the silver clip where the orange tape from the screen attaches to the circuit board.

Lift up the silver clip. The orange tape will slide out, completely disconnecting the screen from the camera.
