Einleitung
The button pad lets the user control actions on the LCD screen. The arrow pad allows the user to move up, down, left, right, and select.
Werkzeuge
-
-

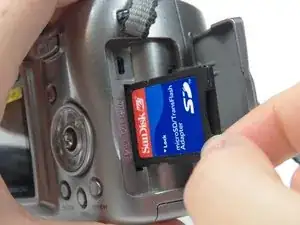

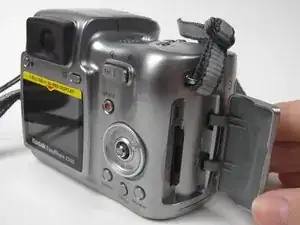

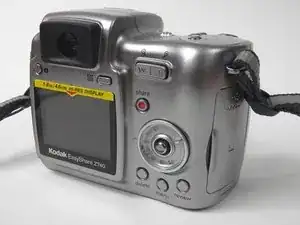

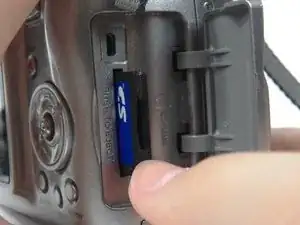

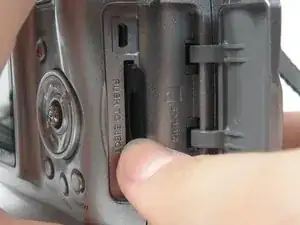

Slide the door on the bottom of the camera in the direction of the open symbol with your finger.
-

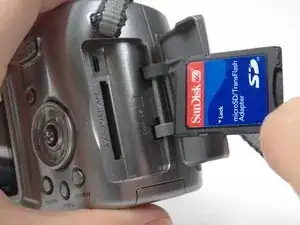

Release and the door will pop open.
-
-
-
Remove lens cover from the camera by squeezing the protruding button on each side of the cover and pulling.
-
-
-
Pull the lens cover string toward the ground so that the loop underneath the metal slab is on top of the cover string.
-
Push up so that the string starts to come out of the top of the loop.
-
Grab the string from above the loop and pull.
-
-
-
Feed the string on top into the metal slab while pulling the loop toward you until the plastic piece stops you from pulling any further.
-
-
-

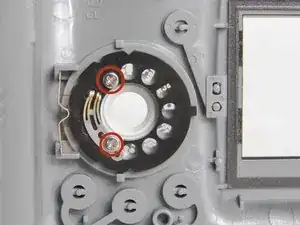

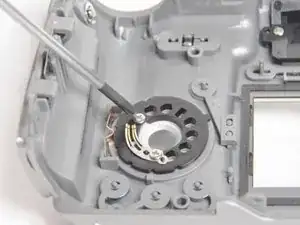

Remove a total of six 3.968mm Phillips #00 screws. Two each from the left side, bottom, and right side.
-
-
-
Pull the back cover away from the front cover.
-
You may need to use a plastic opening tool as a wedge if it does not come apart by easily.
-
-
-

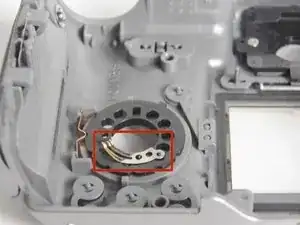

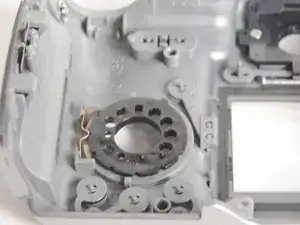

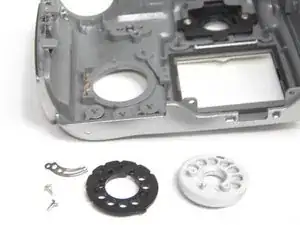

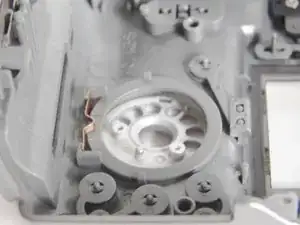

Remove the black ring from the back and the white button pad will fall out from the front.
-
To reassemble your device, follow these instructions in reverse order.
