Einleitung

The lens cover protects the lens from being scratched or damaged. Follow these simple steps to remove and replace a cracked or damaged lens cover.

  1. InBjLK5sbOWtyTSI
    InBjLK5sbOWtyTSI
    yxmBG4Rns3Z2oOtL

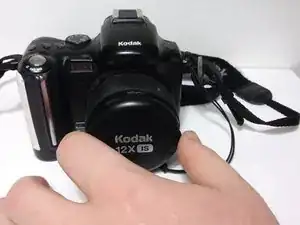

    • Squeeze the buttons on the sides of the lens cap and remove from lens.

  2. BHTkiZ3FhCCZQjc1
    BHTkiZ3FhCCZQjc1
    YpA1mMEACUjlRCdr

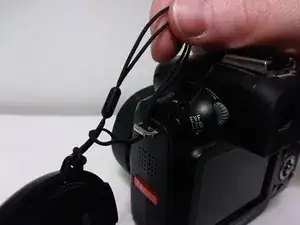

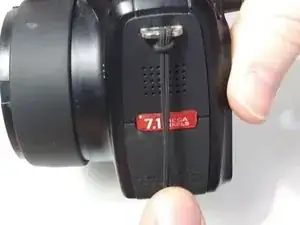

    • Pull the lens cover string down so that the loop underneath the bracket sits on top of the cover string. Push up so that the string starts to come out of the top loop.

    • Grab the string from above the loop and pull up.

  3. TDSXfkvDcbMjX4ej
    TDSXfkvDcbMjX4ej
    WfgCBfCFCN6G6WRe

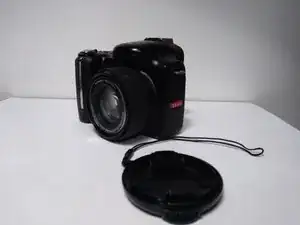

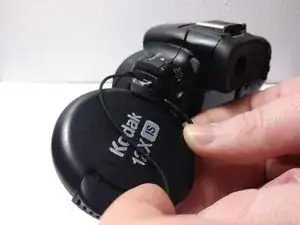

    • Thread the lens cover through the loop and pull the string out of the metal bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
