Kodak Easyshare V1003 LCD Display Replacement

Geschrieben von: Vanessa Soares
  • Kommentare: 1
Kodak Easyshare V1003 LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

This guide provides step-by-step instructions for removing and replacing the LCD display. There are two tools required and no safety precautions needed.

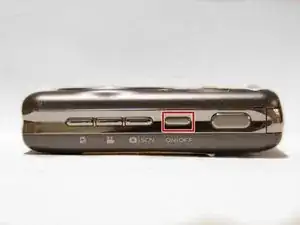

  1. rEcv6wNxNUX52V1U

    • Turn off camera by firmly pressing the power button that is located on the top of the camera.

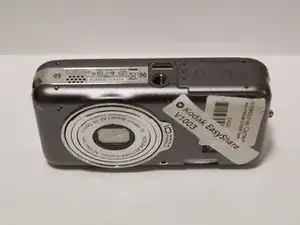

  2. bNIyGBKXZFpPYScq

    • Position camera with the bottom facing up.

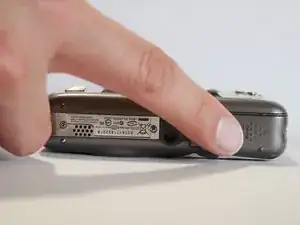

  3. VBMfkJ4p5mhTvFdg

    • With your finger, slide the battery cover in the direction of the open arrow.

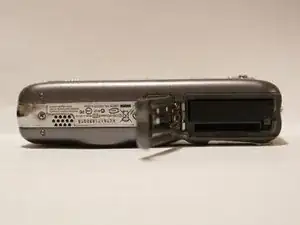

  4. Mi4H5Mjj6maEBbAX

    • Lift the battery cover up gently.

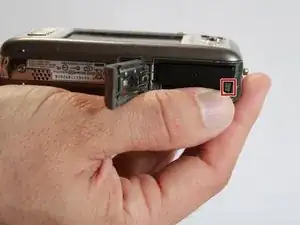

  5. HbRo3vfBFZQXkVjh
    HbRo3vfBFZQXkVjh

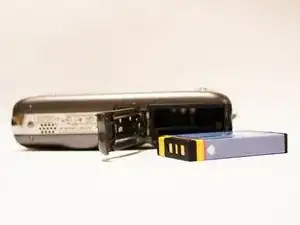

    cJrwG4WByXFhsvHm

    • Gently push the battery down until a click is heard. Battery should release and be lifted out of slot.

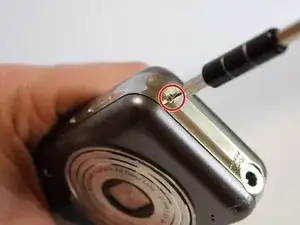

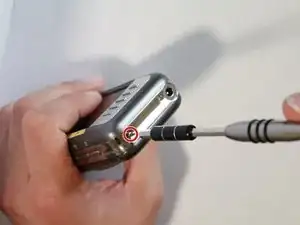

  6. K2jn1sSo32rmTZCp
    K2jn1sSo32rmTZCp

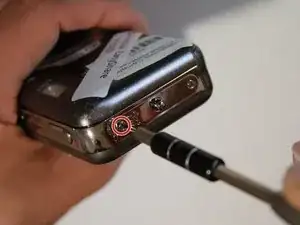

    IGojiQZYVKZU2eb2
    wQoickv1no4TmguF

    • Use a J00 screwdriver to remove the five exterior screws.

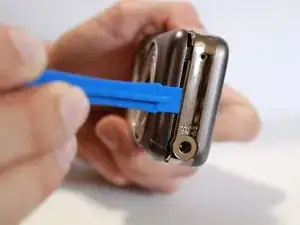

  7. OTivqBaSkXkCstcL
    OTivqBaSkXkCstcL
    tfGOpSgCG4Uwlis1

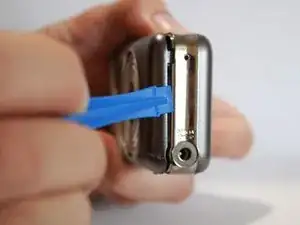

    bIfTLSTOTC5JuMMy

    • Use a plastic opening tool to pry off the back casing.

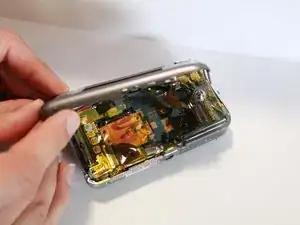

  8. egSXebJa2HDtLnGJ
    egSXebJa2HDtLnGJ

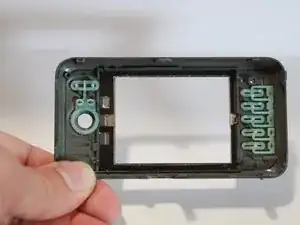

    WtLI1IxUBv3VX1gQ

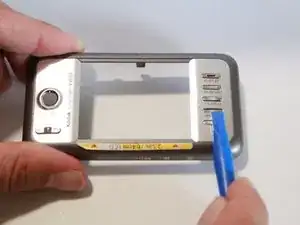

    nIwf6cmcfhY1e1oK

    • Completely remove the back casing from the device.

    • Using a plastic tool to remove the bottom.

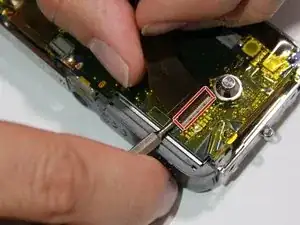

  9. gbYgipFKtdWbBylq

    • Remove the LCD display by unplugging the connector.

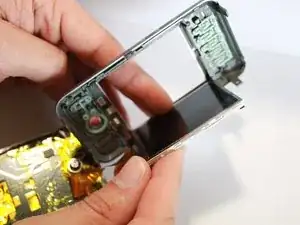

  10. QWgYP1EhMMAvXWmt

    • Take apart the LCD display from the back case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
